100G QSFP28 to 4xSFP28 Passive Direct Attach Copper (DAC) Twinax Cables 0.5m-3m for data center

Minimum Order Quantity :	1pc	Packaging Details :	50pcs to one carton or as customized
Delivery Time :	1-2days

Place of Origin:	China	Brand Name:	UTOPTEK
Certification:	CE	Model Number:	QSFP28-4SFP28-100G-PCU1M

Detail Information
Product Name:	100G QSFP28/4x25G SFP28 DAC Cable	Data Rate:	100Gbps
Wire AWG:	AWG30 For 0.5-3M	Length:	0.5-3meters
Working Temp.:	0°C To 70°C (32 To 158°F)	Power Supply:	3.3v
Applications:	FTTH FTTB FTTX Network	Compatible:	Any Brand
Connector:	100G QSFP28 To 4x25G SFP28	Warranty:	3years

Product Description

100G QSFP28 to 4x 25G SFP28 Passive Direct Copper Cables

QSFP28-4SFP28-100G-PCU1M (or xM)

Product Details:

Features
• Supporting 100 Gbps to 4 x 25 Gbps

• Support data rates : 25.78Gb/s (per channel)
• IEEE 802.3bj 100GEBASE-CR4 and P802.3by compliant
• Compatible to SFP28 MSA and QSFP28 MSA
• Compatible to SFF-8402, SFF-8432 and SFF8665
• Maximum aggregate data rate: 100 Gb/s (4 x25Gb/s)
• High-Density QSFP28 38-PIN and 4x SFP28 20-PIN Connector
• Temperature Range: 0~ 70 °C
• Copper link length up to 2m
• Power Supply :+3.3V
• Low crosstalk
• I2C based two-wire serial interface for EEPROM signature which can be customized
• Operating Temperature: 0~ 70 °C
• ROHS Compliant

Applications

100GE/25 Gigabit Ethernet
Switches, Routers, and HBAs
Switches,servers and routers
Data Center networks
Storage area networks
High performance computing
Telecommunication and wireless infrastructure
Medical diagnostics and networking
Test and measurement equipment

General Product Characteristics

SFP+ DAC Specifications
Number of Lanes	Tx & Rx
Channel Data Rate	25Gb/s
Operating Temperature	0 to + 70°C
Storage Temperature	-40 to + 85°C
Supply Voltage	3.3 V nominal
Electrical Interface	38 pins edge connector(QSFP+) 20 pins edge connector(SFP+)
Management Interface	Serial, I2C

High Speed Characteristics

Feature	Test Method	Performance
Electrostatic Discharge (ESD) to the Electrical Pins	MIL-STD-883C Method 3015.7	Class 1(>2000 Volts)
Electromagnetic Interference(EMI)	FCC Class B	Compliant with Standards
	CENELEC EN55022 Class B
	CISPR22 ITE Class B
RF Immunity(RFI)	IEC61000-4-3	Typically Show no Measurable Effect from a 10V/m Field Swept from 80 to 1000MHz
RoHS Compliance	RoHS Directive 2011/6/5/EU and it's Amendment Directives 6/6	RoHS 6/6 compliant

The connector is compatible with the SFF-8432 to SFF-8665 specification.
Mechanical Specifications

100G QSFP28 to 4xSFP28 Passive Direct Attach Copper (DAC) Twinax Cables 0.5m-3m for data center 0

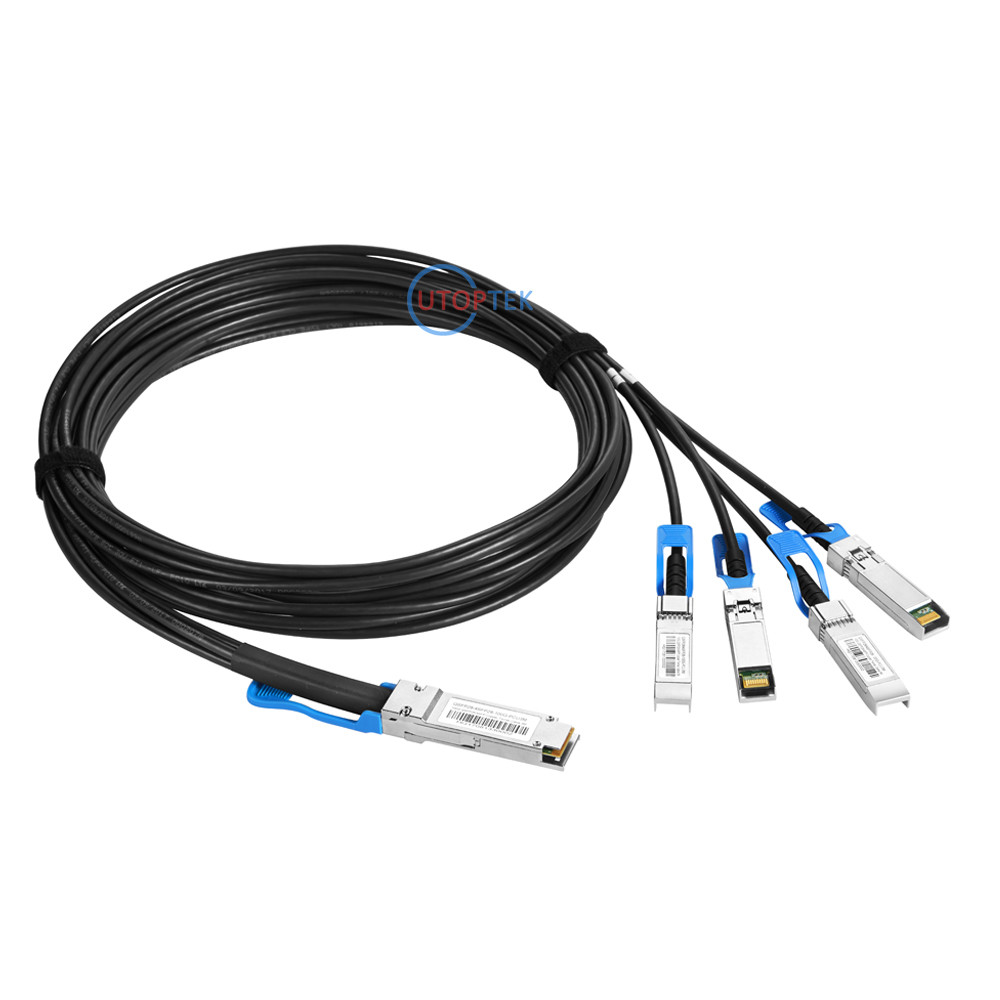

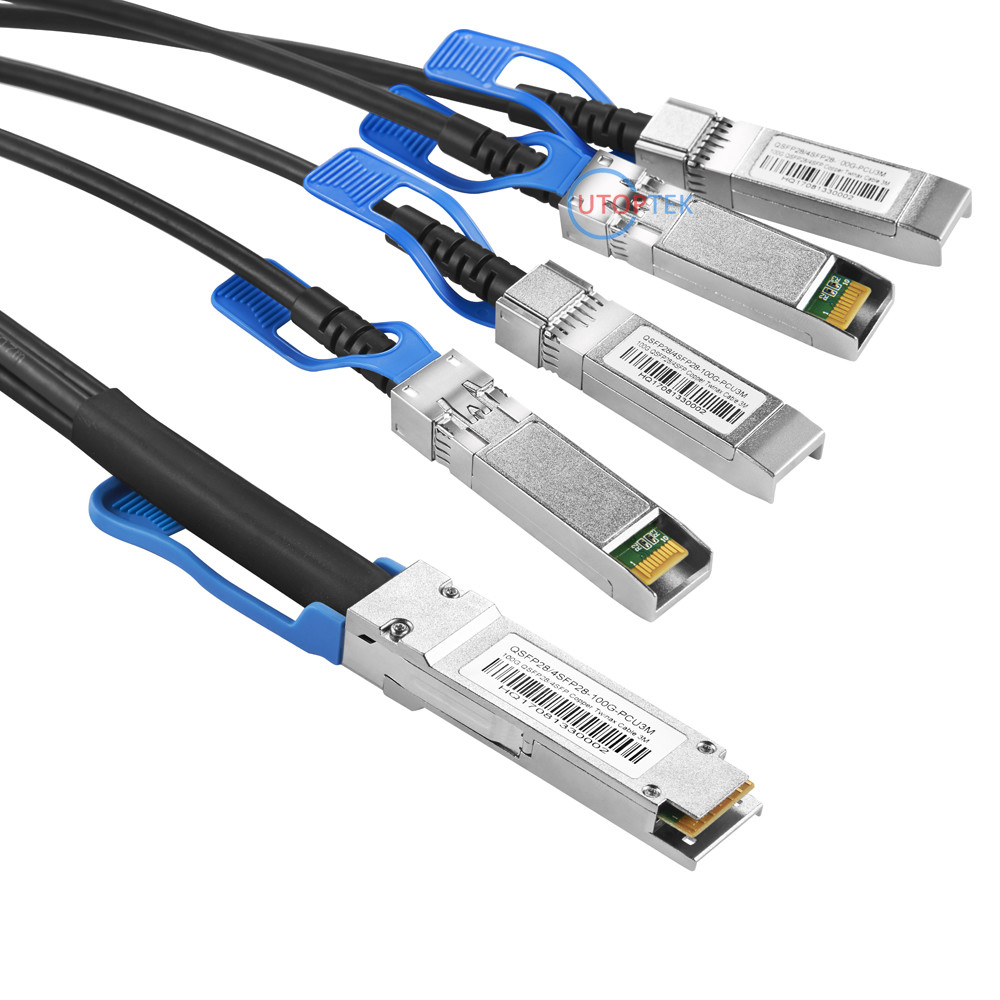

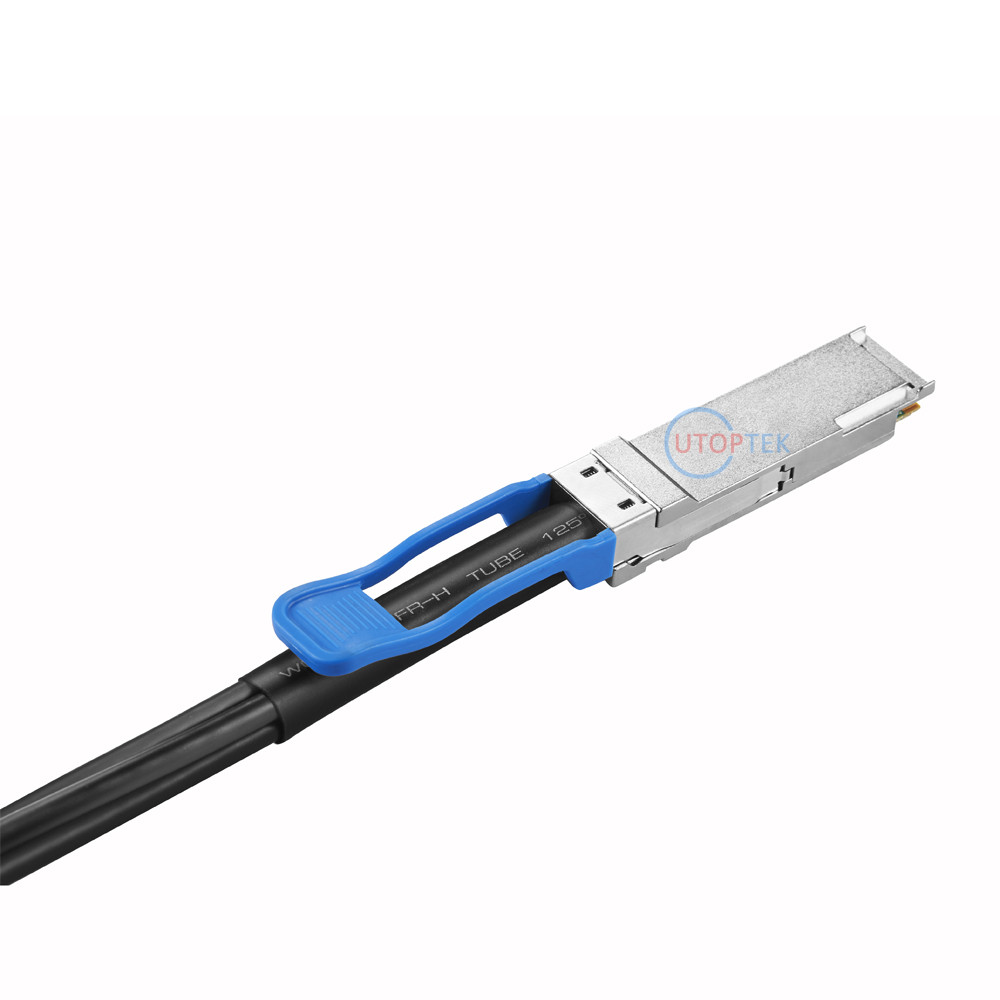

Product show:

100G QSFP28 to 4xSFP28 Passive Direct Attach Copper (DAC) Twinax Cables 0.5m-3m for data center 1

Testing Show:

100G QSFP28 to 4xSFP28 Passive Direct Attach Copper (DAC) Twinax Cables 0.5m-3m for data center 4

Ordering informations:

Length (m)	Cable AWG
1	30
2	30
3	30/24
