10 100 1000m multi mode SC 850nm 550m Ethernet Fiber Optic Media Converter

Minimum Order Quantity :	2pcs	Packaging Details :	66pcs/Carton, Carton size:574350CM, G.W.:17.55Kg
Delivery Time :	1-2 days	Payment Terms :	T/T, Western Union, Paypal, Alipay, Wechat etc.
Supply Ability :	5000pcs per week

Place of Origin:	China	Brand Name:	UTOPTEK
Certification:	CE FCC RoHs	Model Number:	UT-MC3101-S05

Product Description

Order Models:

Model	Speed	Fiber Type		Wavelength	Dist.	Optical port
UT-MC2101-S02	10/100Base-Tx to 100Base-FX	MM	Dual fiber	TRx:850nm	2km	SC
UT-MC2101-S02	10/100Base-Tx to 100Base-FX	MM	Dual fiber	TRx:1310nm	2km	SC
UT-MC2101-S20	10/100Base-Tx to 100Base-FX	SM	Dual fiber	TRx:1310nm	20km	SC
UT-MC2101-S20A/B	10/100Base-Tx to 100Base-FX	SM	Single fiber	1310/1550nm	20km	SC
UT-MC2101-S20A/B	10/100Base-Tx to 100Base-FX	SM	Single fiber	1310/1490nm	20km	SC
UT-MC2101-SFP	10/100Base-Tx to 100Base-FX	SM/MM	SF/DF	depends on SFP	0~120km	SFP

UT-MC3101-S05	10/100/1000Base-Tx to 1000Base-FX	MM	Dual fiber	TRx:850nm	550m	SC
UT-MC3101-S05	10/100/1000Base-Tx to 1000Base-FX	MM	Dual fiber	TRx:1310nm	550m	SC
UT-MC3101-S20	10/100/1000Base-Tx to 1000Base-FX	SM	Dual fiber	TRx:1310nm	20km	SC
UT-MC3101-S20A/B	10/100/1000Base-Tx to 1000Base-FX	SM	Single fiber	1310/1550nm	20km	SC
UT-MC3101-S20A/B	10/100/1000Base-Tx to 1000Base-FX	SM	Single fiber	1310/1490nm	20km	SC
UT-MC3101-SFP	10/100/1000Base-Tx to 1000Base-FX	SM/MM	SF/DF	depends on SFP	0~120km	SFP
UT-MC10G-SFP	10G Base-Tx to 10G Base-R	SM/MM	SF/DF	depends on SFP	0~100km	SFP+
For long distance: 20/40/60/80/100/120km, pls contact our sales.

Overview:

The Gigabit stand-alone Ethernet Media Converter that provides cost effective.

entry-level media conversion between 1x10/100/1000Base-TX ports and 100/1000Base-FX ports.

With its ﬁxed conﬁguration, deployments are just plug-and-play.

The Fiber optical supports both multimode (SX) or single-mode (LX) fiber port.

Features:

Technical sheet:

Fixed Port	1*10/100/1000Base--TX RJ45 port (Data)
Fixed Port	1*1000M Optical Fiber Port
Network Protocol	IEEE802.3
	IEEE802.3i 10BASE-T
	IEEE802.3u100BASE-TX
	IEEE802.3ab 1000BASE-TX/FX
Port Specification	10/100/1000BaseT(X) Auto
Transmission Mode	Store and Forward(full wirespeed)
Bandwidth	1024Mbps
Packet Forwarding	7.2Mpps
MAC Address	4K
Buffer	2.5M
MTBF	>100,000 hours
Transmission Distance	10BASE-T : Cat3,4,5 UTP(≤250 meter)
	100BASE-TX : Cat5 or later UTP(100 meter)
	1000BASE-TX : Cat5 or later UTP(100 meter)
	Multi mode double fiber(MAX 550M/2KM)
	Single mode double fiber (default 20KM)
	Single mode single fiber(default 20KM)
	Optional 3-120KM Optical Fiber Module
Watt	≤5W
LED Indicator	PWR:Power LED
	PDX:Working status LED
	TX :Network Port LED
	FX:(Optical fiber LED)
	Link/Act(Optical Fiber Port State LED)
Power	External power: DC5V ; Input: AC100~240V;50/60Hz
Operating Temperature/Humidity	0～+70°C; 5%～90% RH Non coagulation
Storage Temperature/Humidity	-20～+75°C; 5%～95% RH Non coagulation
Product size/Packing size(LWH)	94mm70mm25mm
Product size/Packing size(LWH)	230mm125mm55mm
N.W/G.W(kg)	0.18kg/0.36kg
Installation	Desktop (optional wall hanger+machine hanger parts)
Lightning Protection level	3KV 8/20us
Lightning Protection level	IP30
Certificate	CE mark, commercial; CE/LVD EN60950；
Certificate	FCC Part 15 Class B; RoHS; CNAS;MA
Warranty	Whole device for 1 year

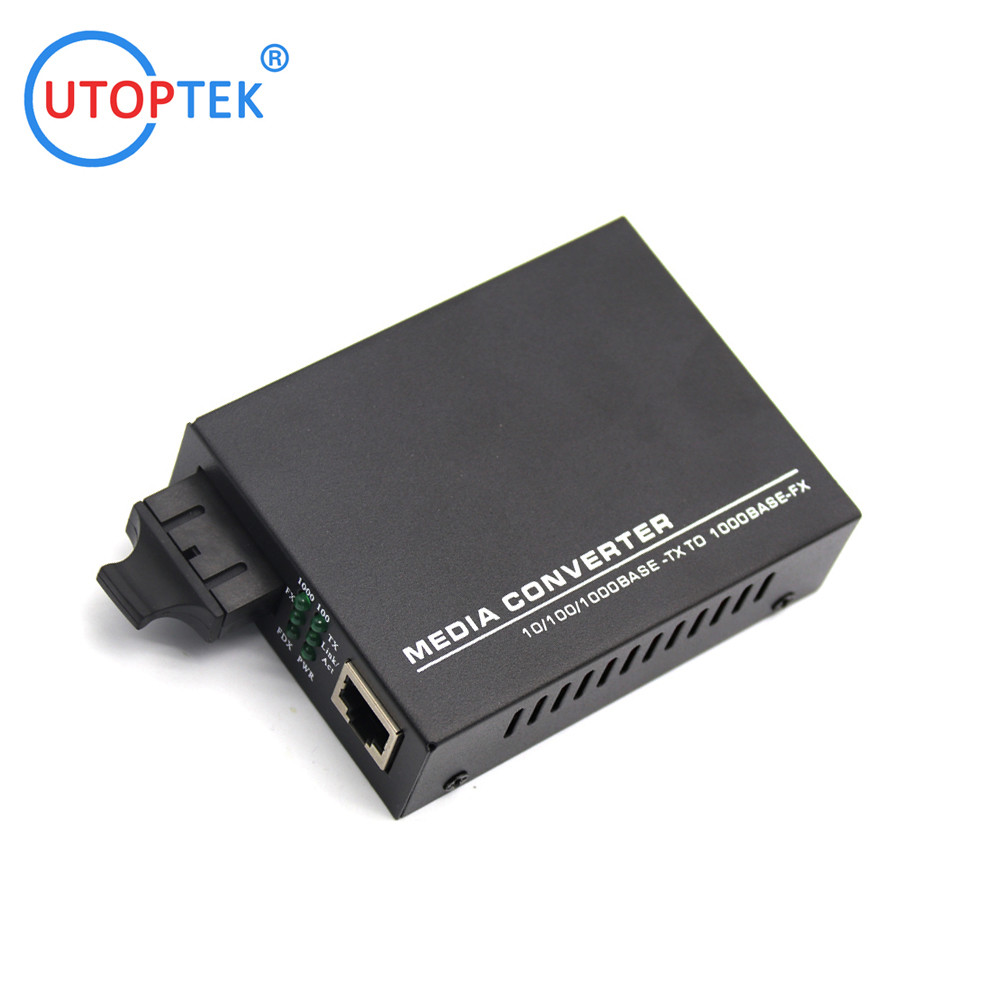

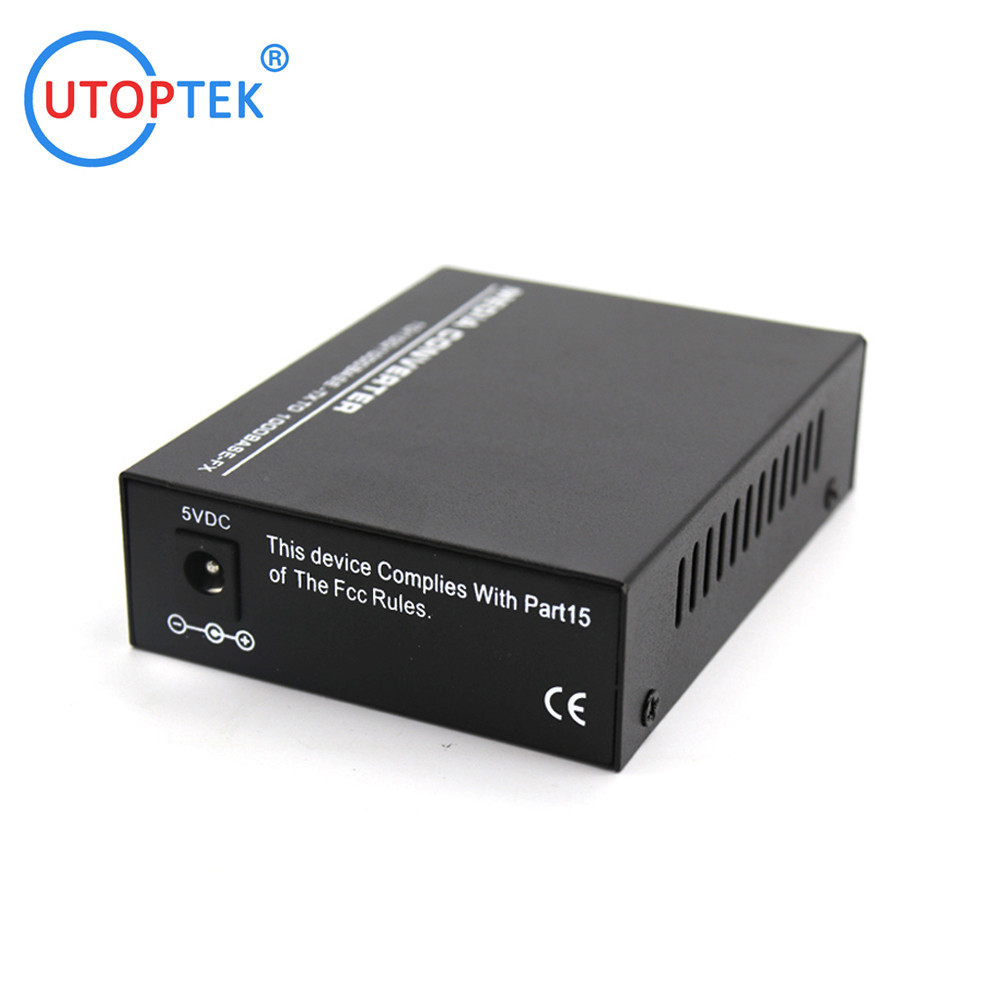

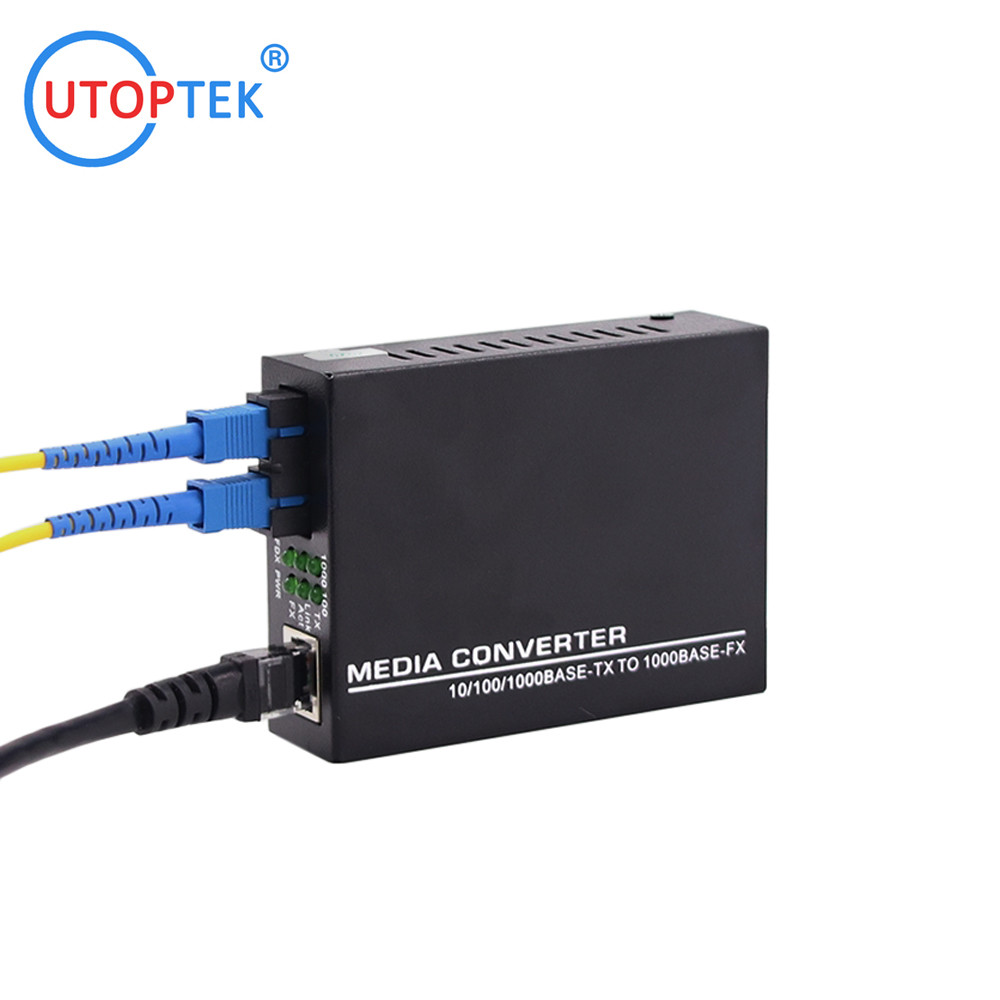

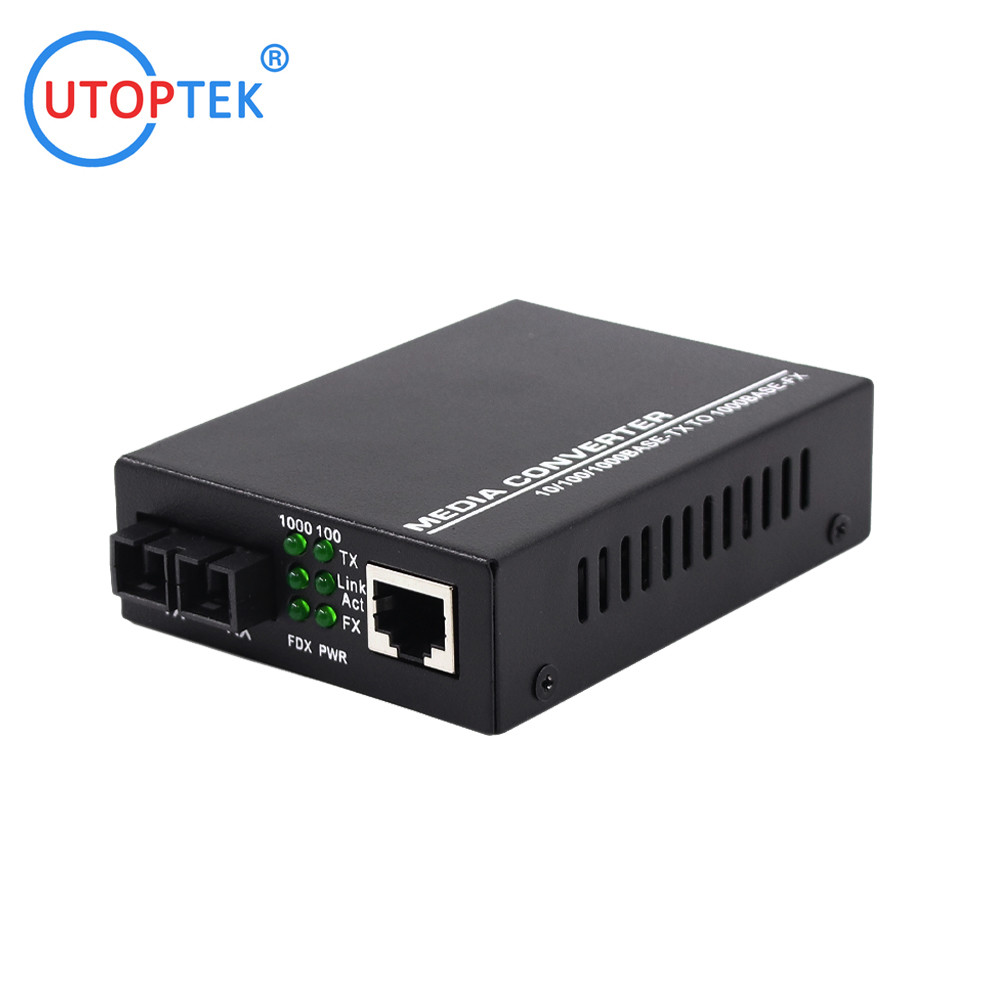

Products show:

10 100 1000m multi mode SC 850nm 550m Ethernet Fiber Optic Media Converter 0

10 100 1000m multi mode SC 850nm 550m Ethernet Fiber Optic Media Converter 4

Connection topology:

10 100 1000m multi mode SC 850nm 550m Ethernet Fiber Optic Media Converter 5
