10/100M or 1000M 48V to 12V Isolated PoE Splitter Active IEEE802.3af/at for CCTV IP/APs/48V POE Switch

Minimum Order Quantity :	10pcs	Packaging Details :	300pcs/Carton,485400325mm,16.5KG
Delivery Time :	2-3days	Payment Terms :	T/T, Western Union, Paypal, Alipay, Wechat etc..
Supply Ability :	50000pcs per month

Place of Origin:	China	Brand Name:	UTOPTEK
Certification:	CE	Model Number:	UT-PS4812

Detail Information
Product Name:	Standard POE Splitter	Input:	DC48-55V
Output:	DC12V/1.1A	Data Signal:	1236
Pins (power+data):	1/2+ 3/6- ; 4/5+ 7/8-	Agreement:	IEEE802.3AT/AF
Isolated:	13W	Warranty:	1year
Speed:	10/100Mbps

Product Description

10/100M PoE Splitter, 48V to 12V, IEEE802.3af, Isolated type

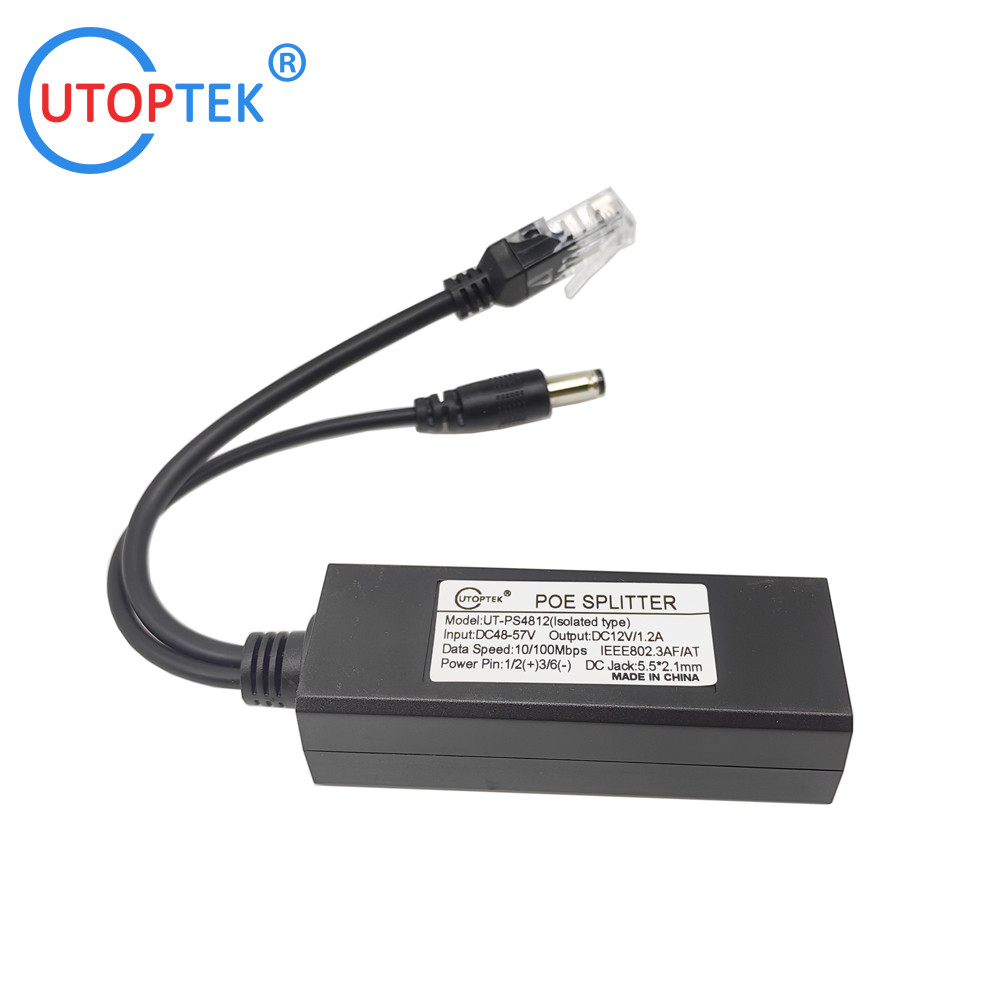

Model: UT-PS4812

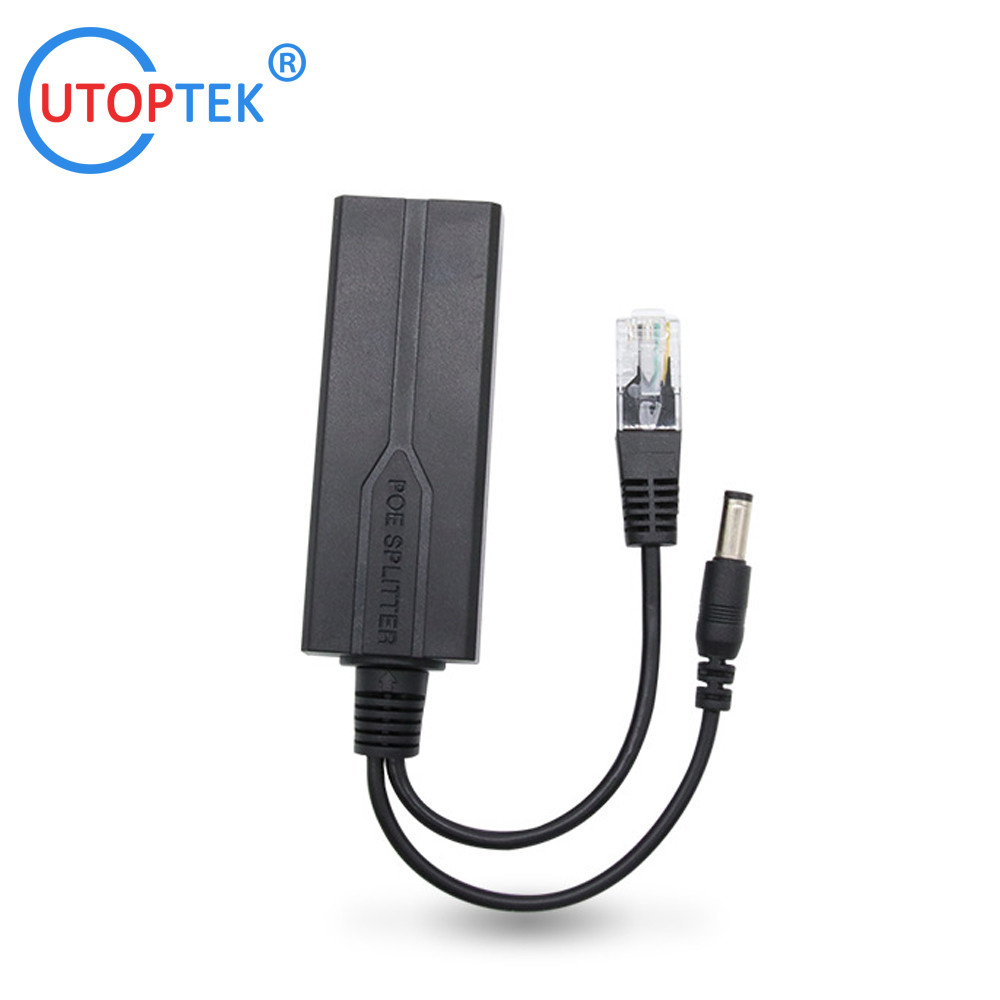

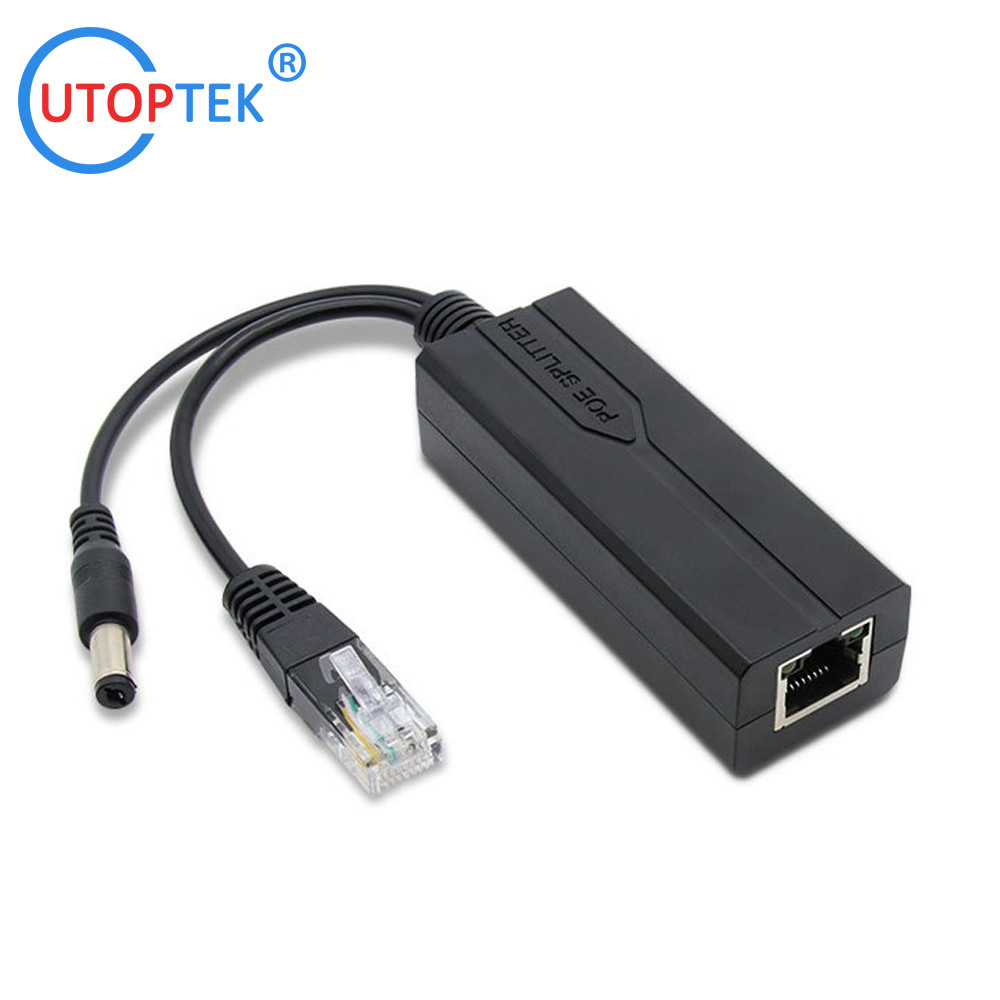

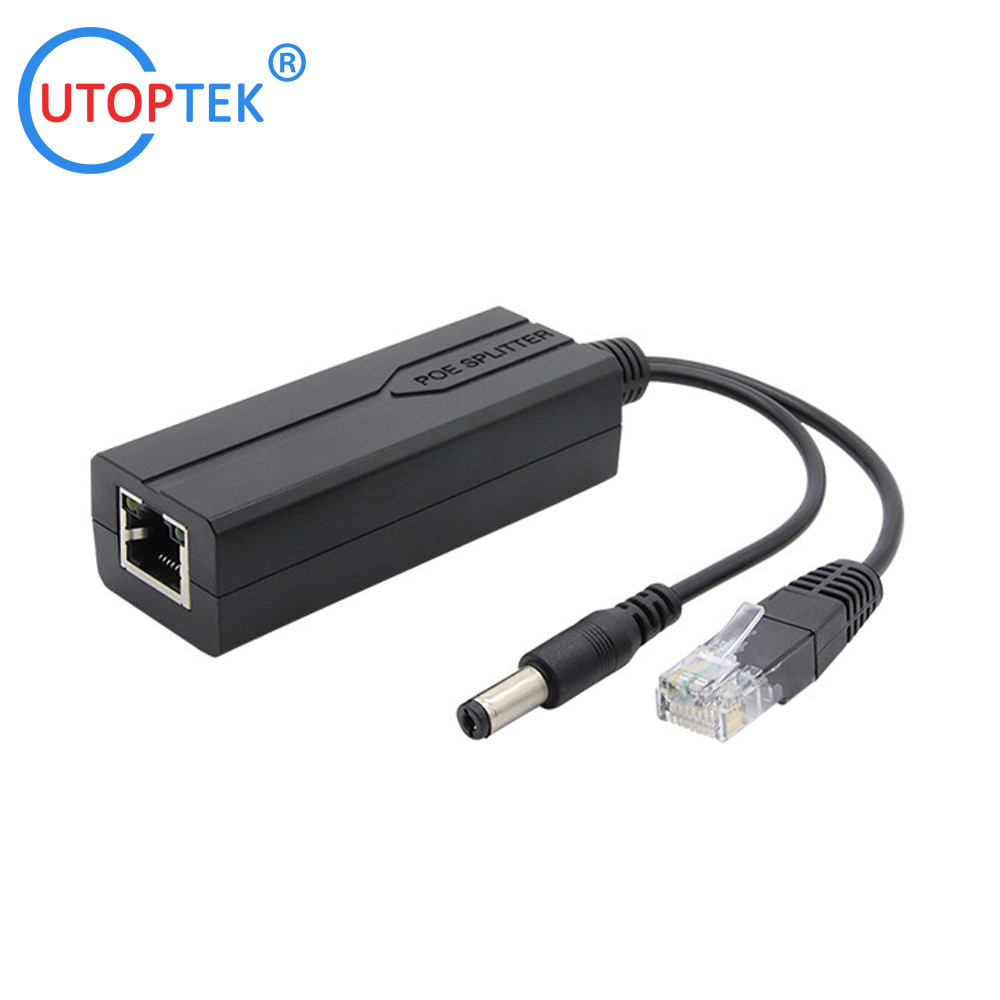

10/100M or 1000M 48V to 12V Isolated PoE Splitter Active IEEE802.3af/at for CCTV IP/APs/48V POE Switch 0

Description:

This is a POE ethernet & power splitter device which is based on IEEE802.3 af, it can work with POE power supply device (such as POE switch) which meet the IEEE802.3af standard and provide the network and power for the device which can not support POE. This product is widely used in security surveillance and network engineer.

Features

1. Protection: Excellent circuit isolation protection, effectively improve product's lightning, ESD and anti-interference ability;
2. Power Supply: Compatible with mode A (End-Span) and mode B(Mid-Span);
3. Standard: IEEE 802.3 af, IEEE 802.3, IEEE 802.3u;
4. Power Output: DC12V and use terminal block to connect;
5. Appearance and Structure: Compact size, easily install.
6. Operation: Plug and play, no need settings.

Technical:

	Item	Description
PoE Power Supply	Protocol	IEEE803.2af
	Power Supply	Compatible Mode A (End-Span) and Mode B (Mid-Span)
	Power Consumption	≤18W
	Input Voltage	PoE 36V-57V
	Output Voltage	DC 12V
	Output Ripple	<5%
Ethernet Port	Ethernet Port	1×RJ45 Input
	Transmission Speed	10/100Mbps
	Transmission Medium	Cat5/5e/6 Standard Network Cable
	Transmission Distance	100m (Maximum)
LED Status Indicator	Input PoE Power Indicator	1 (POE IN Port RJ45 Yellow Light)
LED Status Indicator	Output DC Power Indicator	1 (Ethernet Port RJ45 Yellow Light)
Protection	ESD	1a Contact discharge Level 3 1b Air discharge Level 3 Per: IEC61000-4-2
Protection	Lightning Protection	Power: 2KV Signal: 1KV Per: IEC61000-4-5
Environmental	Working Temperature	-40℃~75℃
	Storage Temperature	-40℃~85℃
	Humidity (non-condensing)	0~95%
Mechanical	Dimension (L×W×H)	82mm×61mm×25mm
	Material	Aluminum
	Color	Black
	Weight	123g
Stability	MTBF	>30000h

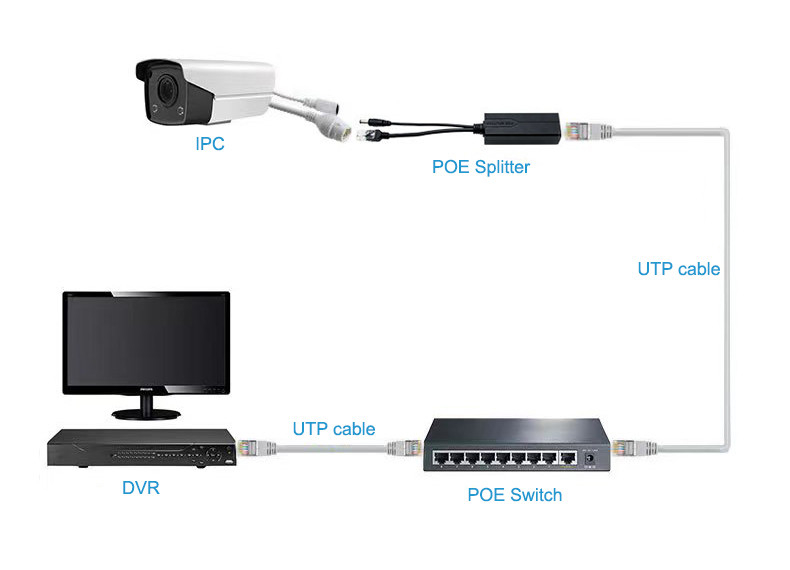

Diagram:

10/100M or 1000M 48V to 12V Isolated PoE Splitter Active IEEE802.3af/at for CCTV IP/APs/48V POE Switch 2

Ordering models:

Model	Description
UT-PS4812	10/100M PoE splitter, 48V to 12V/1A, IEEE802.3af, Isolated type:1.5KV
UT-PS4805	10/100M PoE splitter, 48V to 5V/2.4A, IEEE802.3af,Isolated type:1.5KV
UT-PS4812G	10/100/1000M PoE splitter, 48V to 12V/2A, IEEE802.3af,Isolated type:1.5KV
UT-PS4805G	10/100/1000M PoE splitter, 48V to 5V/2.4A, IEEE802.3af,Isolated type:1.5KV
UT-PS4812W	White Waterproof 10/100M PoE splitter, 48V to 12V/1A, IEEE802.3af
UT-PS4805-USB	Micro-USB 10/100M PoE splitter, 48V to 5V/2.4A, IEEE802.3af
UT-PS4805G-USB	Micro-USB 10/100/1000M PoE splitter, 48V to 5V/2.4A, IEEE802.3af
UT-PS4805-TypeC	Type-C 10/100M PoE splitter, 48V to 5V/2.4A, IEEE802.3af
UT-PS4805G-TypeC	Type-C 10/100/1000M PoE splitter, 48V to 5V/2.4A, IEEE802.3af
UT-PS2412W	White Waterproof 10/100M PoE splitter, 24V to 12V/1A
UT-PS2412	Black color, 10/100M PoE splitter, 24V to 12V/1A
UT-PS4824	Black color, 10/100M PoE splitter, 48V to 24V/1A,Isolated type:1.5KV
