10/100Mbps Passive 24V to 12V 1A PoE Splitter for 24V POE switch and CCTV IP Cameras

Minimum Order Quantity :	10pcs	Packaging Details :	300pcs per Carton,485400325mm,16.5KG
Delivery Time :	2-3days	Payment Terms :	T/T, Western Union, Paypal, Alipay, Wechat etc..
Supply Ability :	50000pcs per month

Place of Origin:	China	Brand Name:	UTOPTEK
Certification:	CE	Model Number:	UT-PS2412

Detail Information
Product Name:	POE Splitter	Input:	DC24-36V
Output:	DC12V/1A	Pins (power+data):	4/5+ 7/8-
Distance:	100M	Speed:	10/100Mbps
Material:	Plastic	Warranty:	1year

Product Description

10/100Mbps Passive 24V POE Splitter DC24V to 12V

Description:

This is a POE ethernet & power splitter device, it can work with POE power supply device (such as passive 24V POE switch) and provide the network and power for the device which can not support POE. This product is widely used in security surveillance and network engineer.

Features

1.Protection: Excellent circuit isolation protection, effectively improve product's lightning, ESD and anti-interference ability;

2. Power Supply: Compatible with mode A (End-Span) and mode B(Mid-Span);

3. Power Output: DC12V and use terminal block to connect;

5. Appearance and Structure: Compact size, easily install.

6. Operation: Plug and play, no need settings.

7.Waterproof design

Technical Parameter

	Item	Description
PoE Power Supply	Power Supply	Compatible Mode A (End-Span) and Mode B (Mid-Span)
	Power Consumption	≤15.4W
	Input Voltage	PoE 24V
	Output Voltage	DC 12V
	current output	2A (max.)
	Output Ripple	<5%
	Power Pin	45+/78-
Ethernet Port	Ethernet Port	1×RJ45 Input
	Transmission Speed	10/100Mbps
	Transmission Medium	Cat5/5e/6 Standard Network Cable
	Transmission Distance	100m (Maximum)
Protection	ESD	1a Contact discharge Level 3 1b Air discharge Level 3 Per: IEC61000-4-2
Protection	Lightning Protection	Power: 2KV Signal: 1KV Per: IEC61000-4-5
Environmental	Working Temperature	-20℃~60℃
	Storage Temperature	-40℃~85℃
	Humidity (non-condensing)	0~95%
	Color	White
	Weight	123g

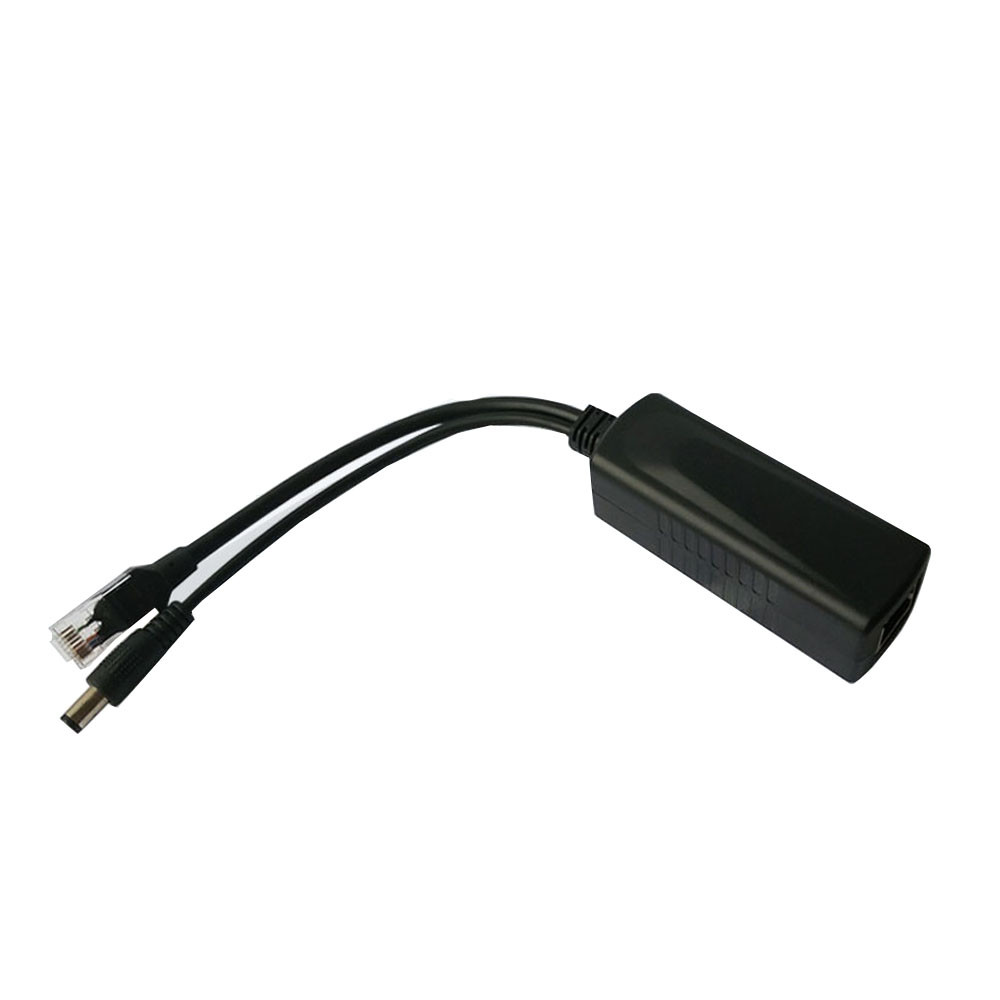

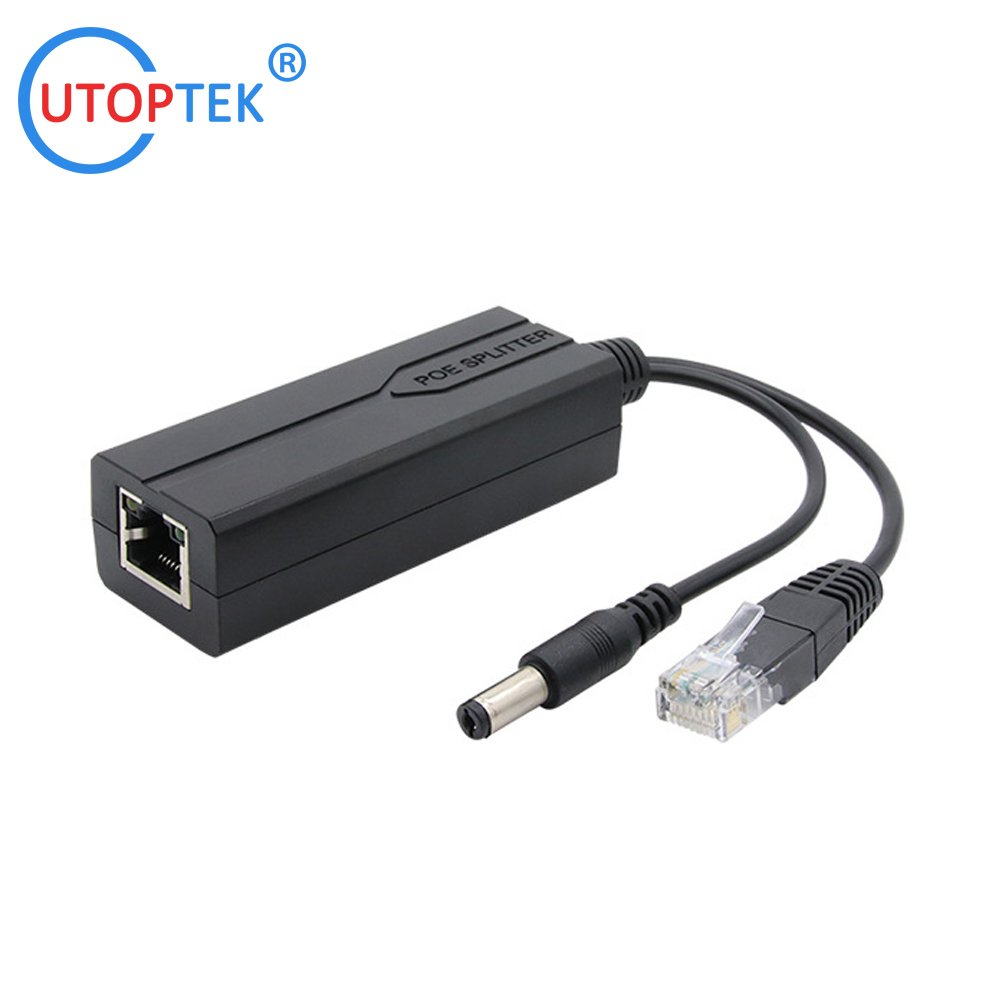

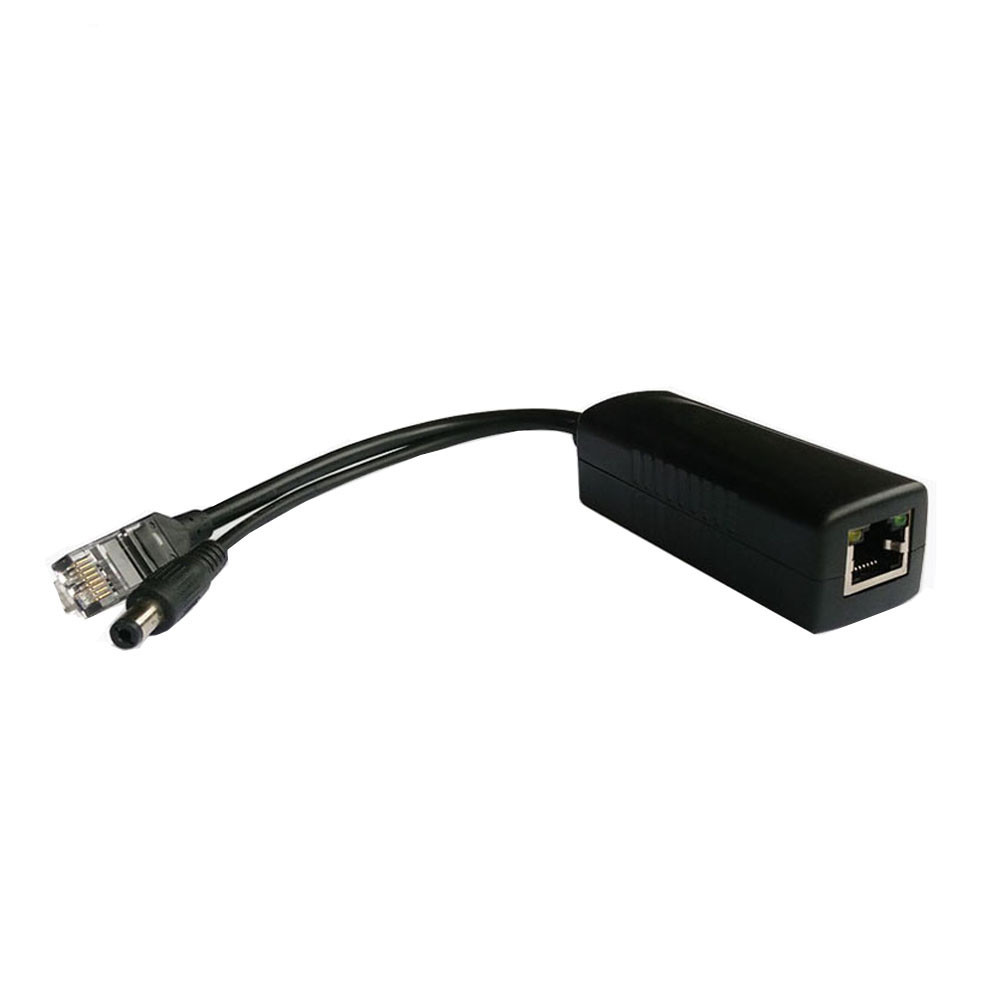

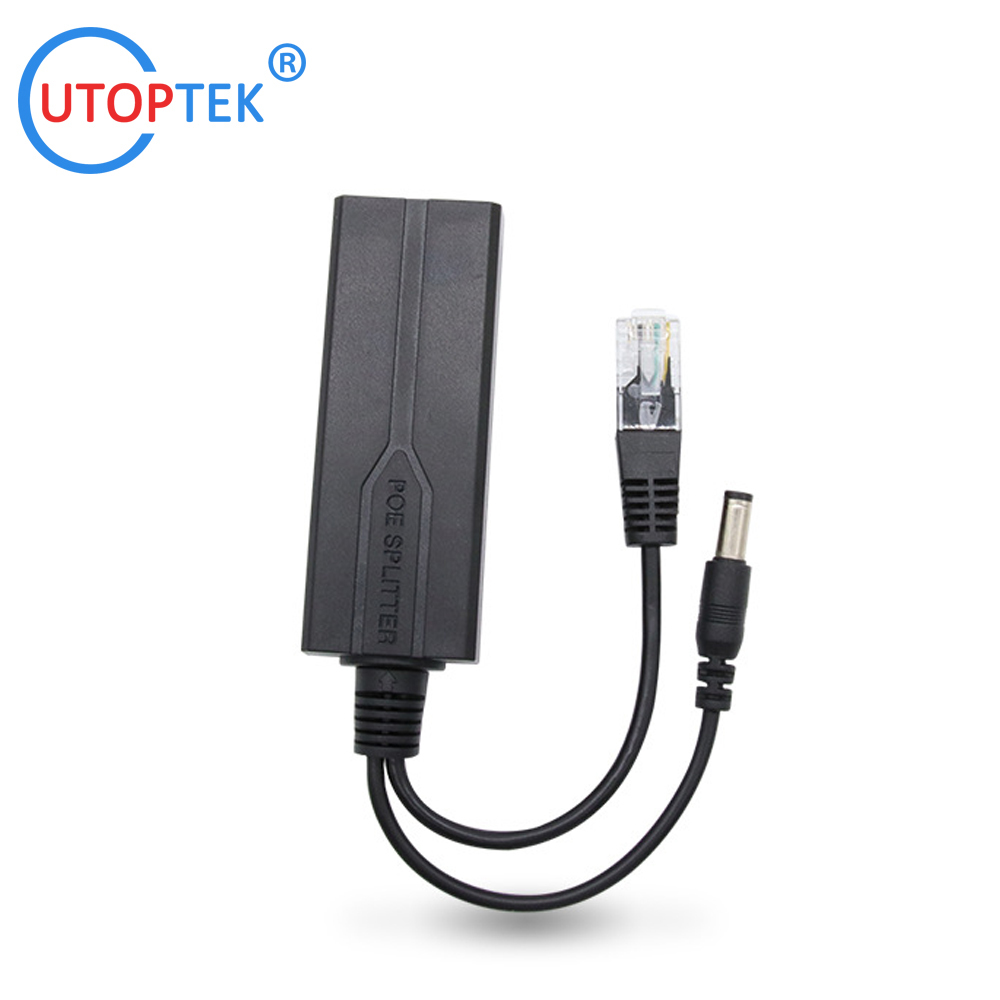

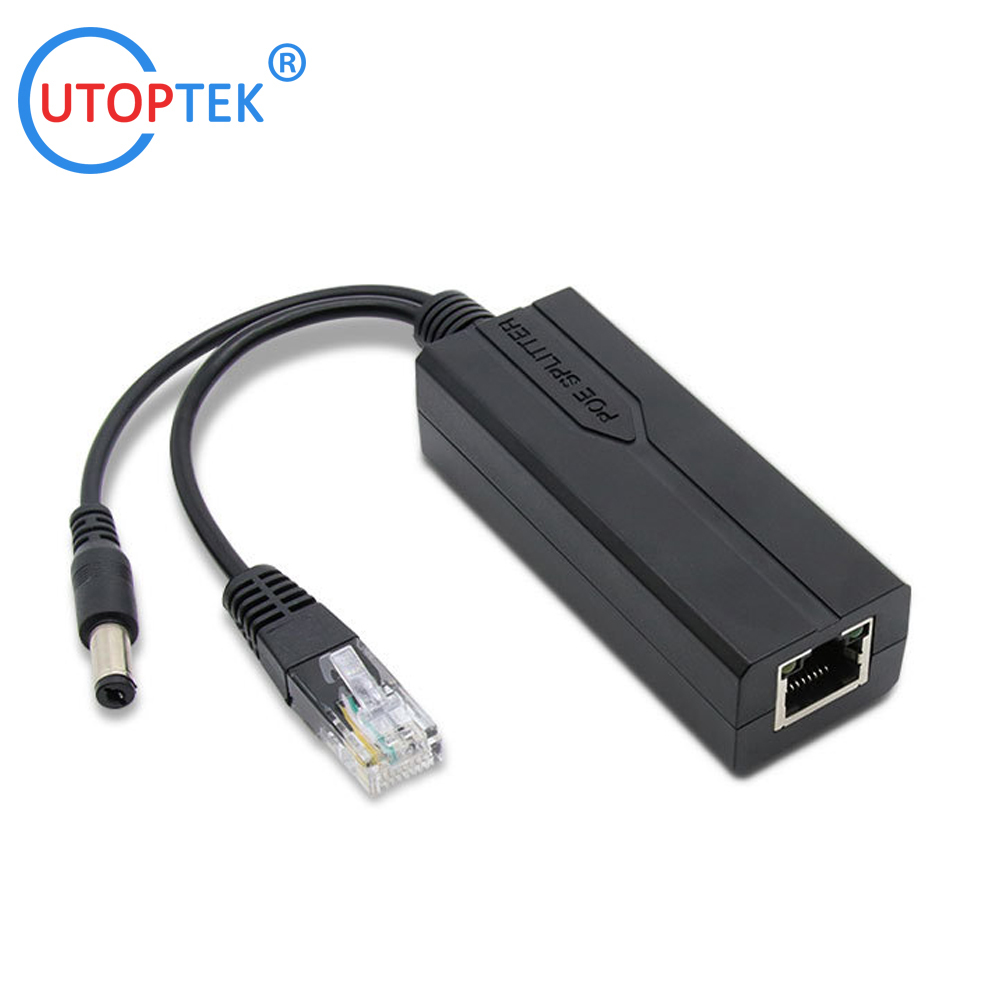

Product Images:

10/100Mbps Passive 24V to 12V 1A PoE Splitter for 24V POE switch and CCTV IP Cameras 0

10/100Mbps Passive 24V to 12V 1A PoE Splitter for 24V POE switch and CCTV IP Cameras 4

Ordering models:

Model	Description
UT-PS4812	10/100M PoE splitter, 48V to 12V/1A, IEEE802.3af, Isolated type:1.5KV
UT-PS4805	10/100M PoE splitter, 48V to 5V/2.4A, IEEE802.3af,Isolated type:1.5KV
UT-PS4812G	10/100/1000M PoE splitter, 48V to 12V/2A, IEEE802.3af,Isolated type:1.5KV
UT-PS4805G	10/100/1000M PoE splitter, 48V to 5V/2.4A, IEEE802.3af,Isolated type:1.5KV
UT-PS4812W	White Waterproof 10/100M PoE splitter, 48V to 12V/1A, IEEE802.3af
UT-PS4805-USB	Micro-USB 10/100M PoE splitter, 48V to 5V/2.4A, IEEE802.3af
UT-PS4805G-USB	Micro-USB 10/100/1000M PoE splitter, 48V to 5V/2.4A, IEEE802.3af
UT-PS4805-TypeC	Type-C 10/100M PoE splitter, 48V to 5V/2.4A, IEEE802.3af
UT-PS4805G-TypeC	Type-C 10/100/1000M PoE splitter, 48V to 5V/2.4A, IEEE802.3af
UT-PS2412W	White Waterproof 10/100M PoE splitter, 24V to 12V/1A
UT-PS2412	Black color, 10/100M PoE splitter, 24V to 12V/1A
UT-PS4824	Black color, 10/100M PoE splitter, 48V to 24V/1A,Isolated type:1.5KV
