DIN Rail POE Repeater Extender 1In 4Out Hi Power 90W to 4port 30W DC48V IEEE802.3AF/AT/BT for extend distance CCTV IP Network

Minimum Order Quantity :	100pcs	Packaging Details :	200pcs/Carton,328x275x378mm,14.3KG
Delivery Time :	2-3days	Payment Terms :	T/T,WU,Paypal,Alipay,RMB pay
Supply Ability :	10Kpcs per month

Place of Origin:	China	Brand Name:	UTOPTEK
Certification:	CE	Model Number:	UT-BT14G-A

Detail Information
Data Rate:	10/100M Or 1000Mbps	Product Name:	POE Repeater
POE Input:	Port 1: 44~57V/90W Max	Power Output:	Port 2:60W; Port3~5:30W Max (44~57V)
POE Standard:	IEEE802.3af/at/bt	POE Pin:	1,2+/3,6-
Dimension:	98mm×148mm×34mm	Weight:	180g
Power Consumption:	90W	Working Temperature:	-10~+60 Degrees

Product Description

POE Extender 10/100M or 1000Mbps 1-IN 4-OUT,100m
POE Input:44~57V/90W, POE Output:Port2:60W max, Port(3~5):30W max, IEEE802.3AF/AT, for Cameras wireless AP

Product Description:

The BT14G-A is 10/100/1000Mbps Ethernet PoE Extender, which provides 1port Gigbit IEEE802.3af/at/bt (PoE/90w) power supply Port input, 1port IEEE802.3af/at (PoE/60w) output and 3port IEEE802.3af/at (PoE/30W) output, The maximum power of the whole machine is 90W.

Features:

With one IEEE802.3af/at (PoE/90w) power input port
with one IEEE802.3af/at (PoE/60w) power supply port output
with three IEEE802.3af/at (PoE) power ports output
Has network and POE relay extension function
It has one click VLAN function

Technical Parameters:

Network Standard	IEEE 802.3,IEEE 802.3u,IEEE 802.3x,IEEE 802.3AF/AT/BT
Port	410/100/1000Mbps RJ45 power supply output port 110/100/1000Mbps RJ45 receiving input port
POE Power	The whole power is 90W, the first output port has a maximum output power of 60W, and the 2nd-4th output ports have a maximum output power of 30W
POE Connection	POE input receiving wire core: 1/2+, 3/6-, 4/5+, 7/8- POE output power supply core: 1/2+, 3/6- 100M Transmission
Performance	Store and forward MAC address table 2k Switching capacity 10Gbps
Forwarding Rate	10BASE-T:14880PPS/port 100BASE-tx:148800pps/port 1000BASE-tx:1488000pps/port
Port Function	Power priority mechanism, fast and forward, MAC automatic learning and aging IEEE802.3X Full-duplex and backpressure for half-duplex mode
Environment	Operating Temperature:-10℃--55℃
Power	Input:DC44-57V,90W;Output:DC44-57V, 85W
Weight &Size	180g, 98mm×148mm×34mm(L×W×H)

Packing and Shipping:

UTOPTEK's POE Repeater are packaged in a foam boxes for protection during shipping. The box is then placed inside a larger shipping box with adequate packing materials to prevent damage during shipping and handling. All shipping boxes are labeled with the product name, Model number, and can be customized customer's Logo too.

The product is shipped via a reliable courier service such as FedEx, UPS, or DHL. Tracking numbers are provided to customers once the product has been shipped.

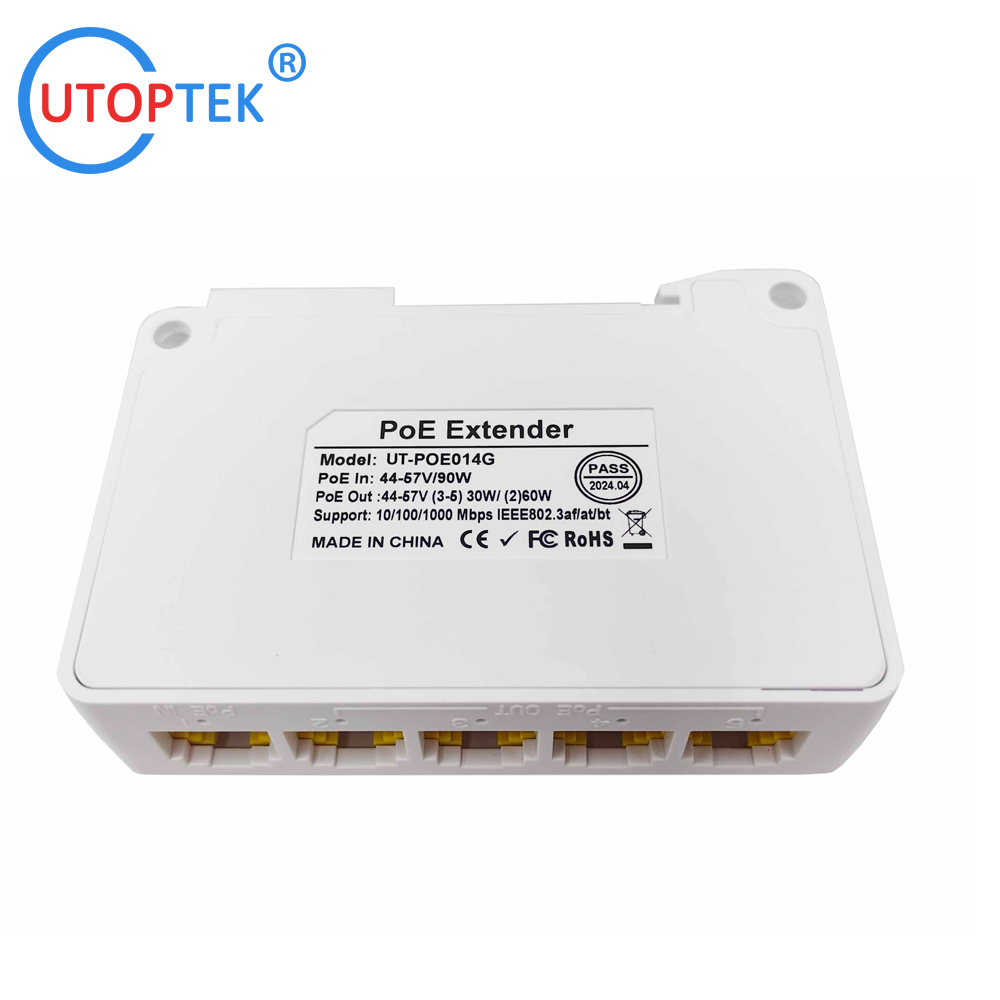

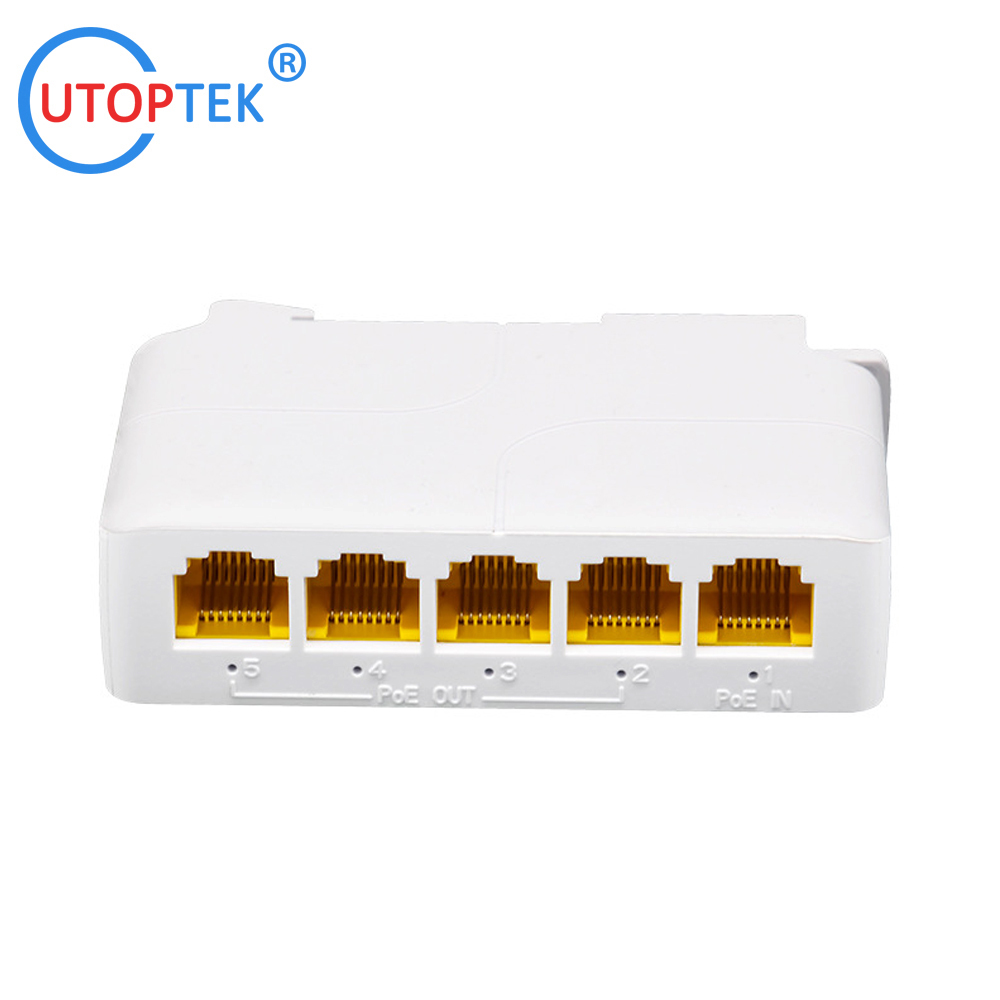

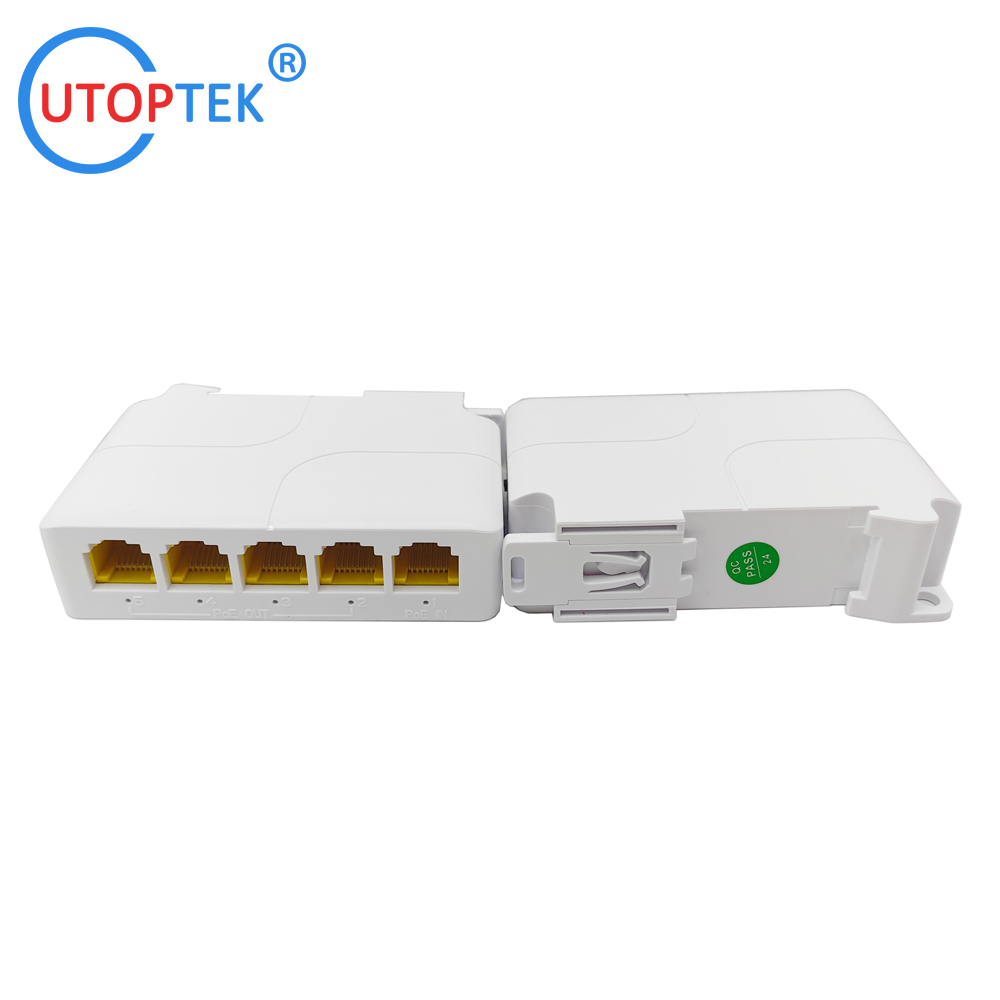

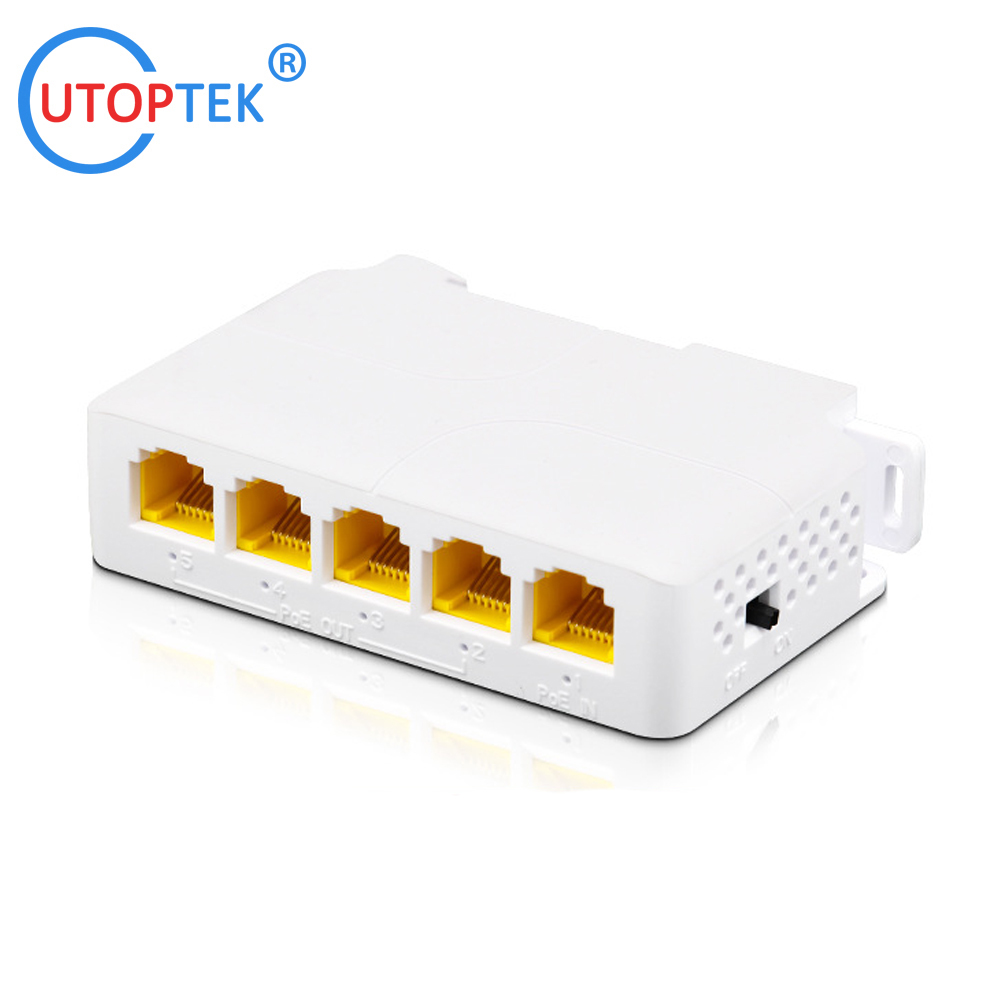

Product photoes:

DIN Rail POE Repeater Extender 1In 4Out Hi Power 90W to 4port 30W DC48V IEEE802.3AF/AT/BT for extend distance CCTV IP Network 0

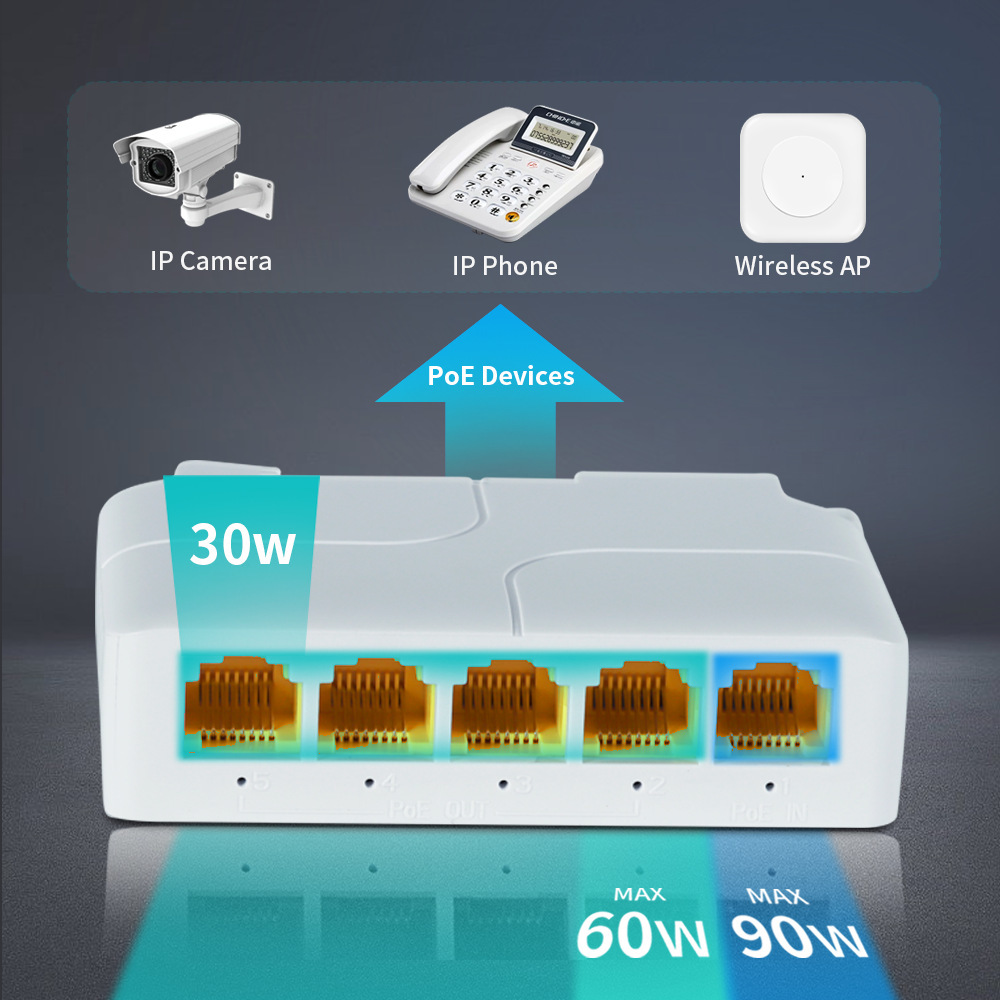

Product Application:

DIN Rail POE Repeater Extender 1In 4Out Hi Power 90W to 4port 30W DC48V IEEE802.3AF/AT/BT for extend distance CCTV IP Network 8

Ordering Models:

FAQ:

Q1 . What's your MOQ?

A1 .1 pc/pair is ok, we don't have MOQ limited.

Q2.What certification did you get?
A2 : Our products passed the CE,FCC,ROHS and SGS test, you can trust our quality very good.

Q3 :What about your delivery time?
A3:For small sample QTY,we have in stock, need 1day.
For QTY 200-500, usually will take 2-3working days. for big QTY pls contact our sales about details.

Q4.What your common shipping method?
A4:By air, by sea or express(DHL,Fedex,UPS,TNT,EMS...), We will make a perfect delivery plan for you.

Q5.How about your product warranty time?
A5:Our products have 1/3/5years warranty for different product series.

Q6. How to handle quality issues with your product?
We give you the promise if any question during 1 year and not cause by human factors, we will fix it.
