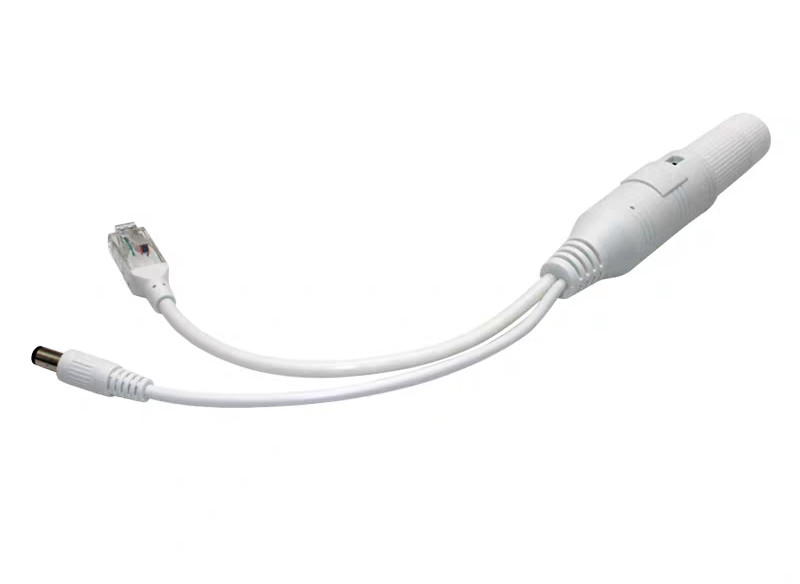

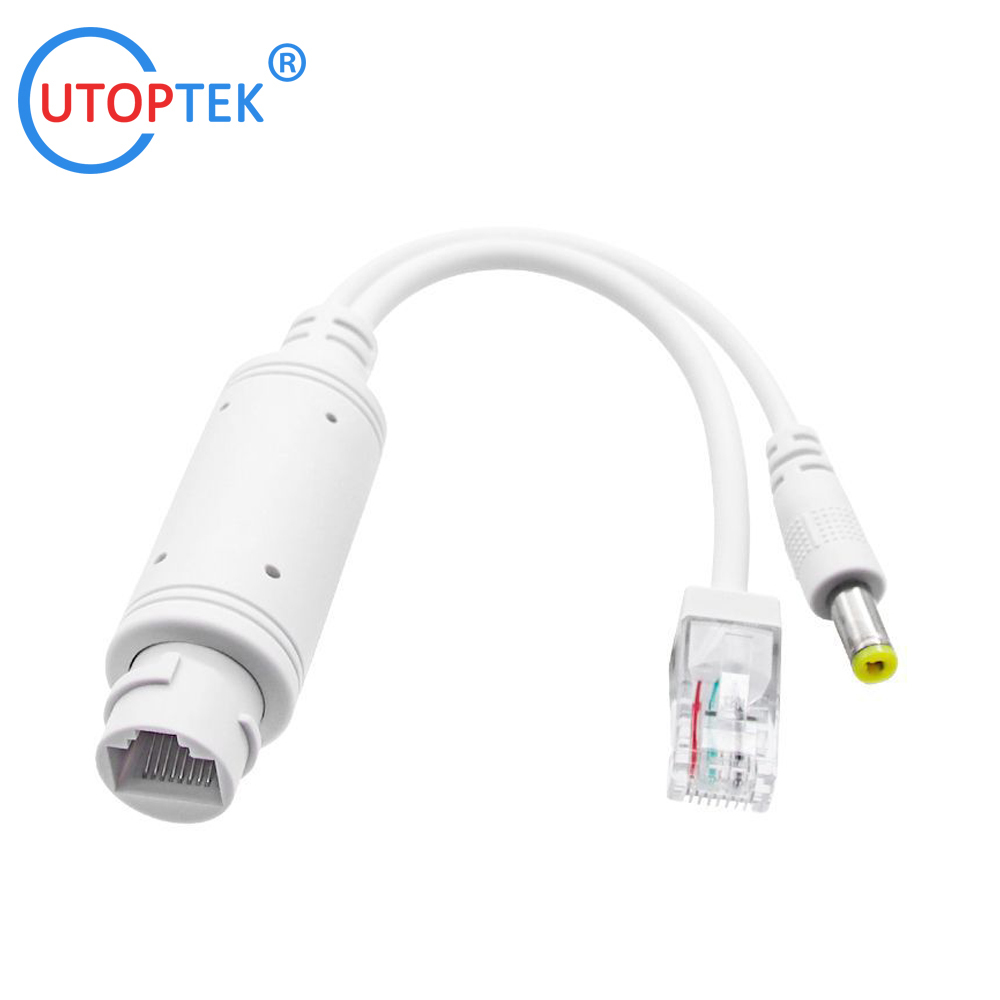

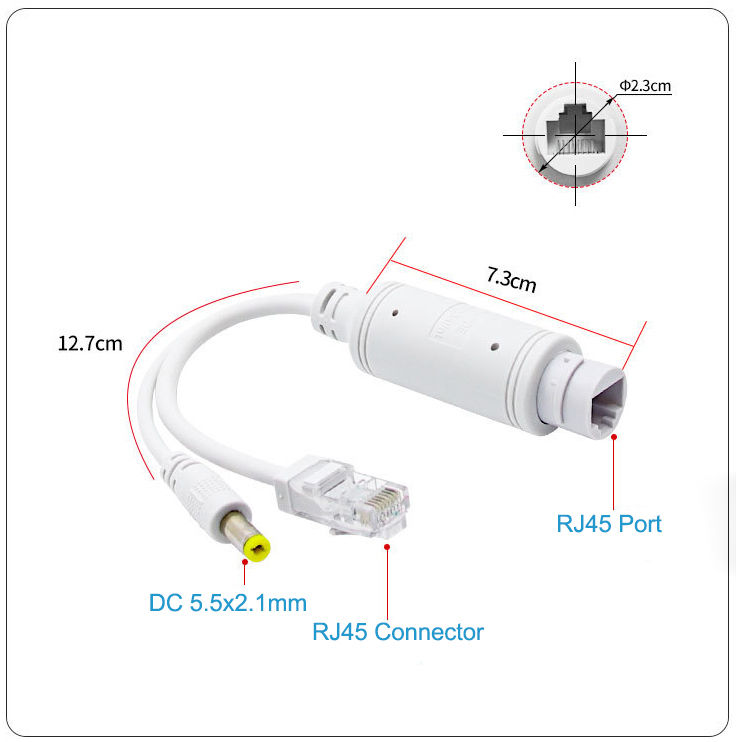

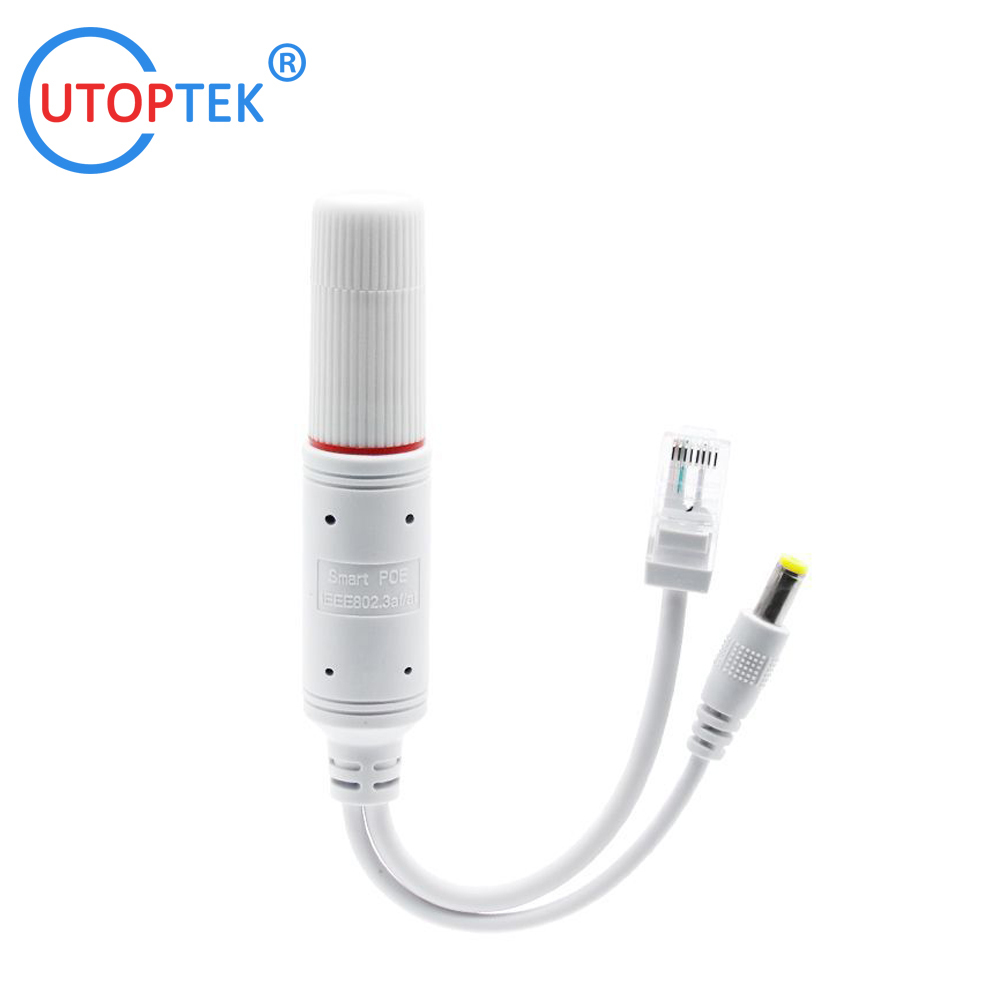

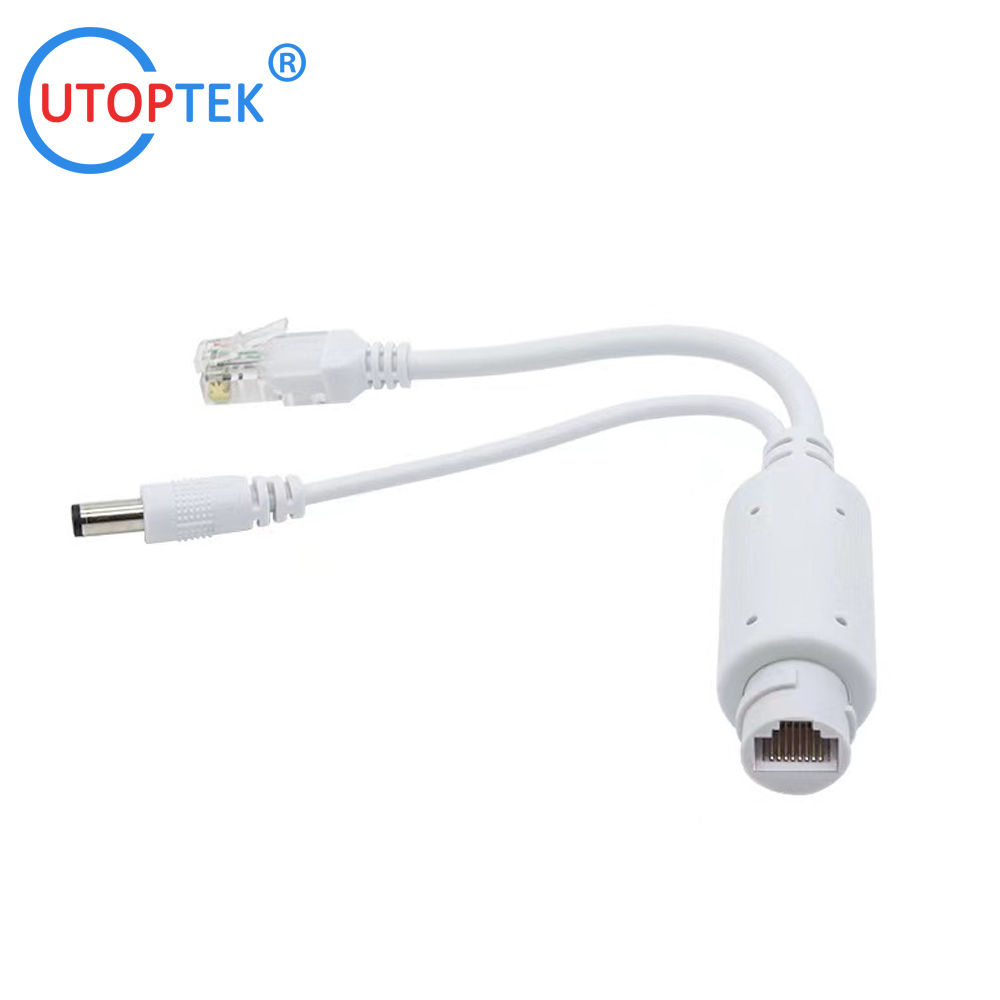

Mini Waterproof PoE Splitter 10/100M 48V to 12V for POE switch and IP Cameras

Minimum Order Quantity :	10pcs	Packaging Details :	300pcs per Carton,485400325mm,16.5KG
Delivery Time :	2-3days	Payment Terms :	T/T, Western Union, Paypal, Alipay, Wechat etc..
Supply Ability :	50000pcs per month

Place of Origin:	China	Brand Name:	UTOPTEK
Certification:	CE	Model Number:	UT-PS4812W

Product Description

10/100Mbps 48V to 12V POE Splitter (Waterproof)

Features:

Rate:10/100Mpbs

DC(IN): 48-55V

DC(OUT): 12V ≤1.1A

Data signal port:1236

Pins (power+data):1/2+ 3/6- 4/5+ 7/8-

Distance: 150Meters

Technicals

	Item	Description
PoE Power Supply	Protocol	IEEE803.2af / IEEE803.2at
	Power Supply	Compatible Mode A (End-Span) and Mode B (Mid-Span)
	Power Consumption	≤15.4W
	Input Voltage	PoE 40V-57V
	Output Voltage	DC 12V
	current output	2A (max.)
	Output Ripple	<5%
Ethernet Port	Ethernet Port	1×RJ45 Input
	Transmission Speed	10/100Mbps
	Transmission Medium	Cat5/5e/6 Standard Network Cable
	Transmission Distance	100m (Maximum)
Protection	ESD	1a Contact discharge Level 3 1b Air discharge Level 3 Per: IEC61000-4-2
	Waterproof function	Support
	Lightning Protection	Power: 2KV Signal: 1KV Per: IEC61000-4-5
Environmental	Working Temperature	-20℃~60℃
	Storage Temperature	-40℃~85℃
	Humidity (non-condensing)	0~95%
	Color	White
	Weight	123g

Mini Waterproof PoE Splitter 10/100M 48V to 12V for POE switch and IP Cameras 0

Mini Waterproof PoE Splitter 10/100M 48V to 12V for POE switch and IP Cameras 4

Ordering informations:

Model	Description
UT-PS4812	10/100M PoE splitter, 48V to 12V/1A, IEEE802.3af, Isolated type:1.5KV
UT-PS4805	10/100M PoE splitter, 48V to 5V/2.4A, IEEE802.3af,Isolated type:1.5KV
UT-PS4812G	10/100/1000M PoE splitter, 48V to 12V/2A, IEEE802.3af,Isolated type:1.5KV
UT-PS4805G	10/100/1000M PoE splitter, 48V to 5V/2.4A, IEEE802.3af,Isolated type:1.5KV
UT-PS4812W	White Waterproof 10/100M PoE splitter, 48V to 12V/1A, IEEE802.3af
UT-PS4805-USB	Micro-USB 10/100M PoE splitter, 48V to 5V/2.4A, IEEE802.3af
UT-PS4805G-USB	Micro-USB 10/100/1000M PoE splitter, 48V to 5V/2.4A, IEEE802.3af
UT-PS4805-TypeC	Type-C 10/100M PoE splitter, 48V to 5V/2.4A, IEEE802.3af
UT-PS4805G-TypeC	Type-C 10/100/1000M PoE splitter, 48V to 5V/2.4A, IEEE802.3af
UT-PS2412W	White Waterproof 10/100M PoE splitter, 24V to 12V/1A
UT-PS2412	Black color, 10/100M PoE splitter, 24V to 12V/1A
UT-PS4824	Black color, 10/100M PoE splitter, 48V to 24V/1A,Isolated type:1.5KV
