4x10/100M POE+2xUP-link IEEE802.3af/at POE Etherent switch for CCTV IP Camera Network switch

Minimum Order Quantity :	2pcs	Packaging Details :	box package, or as customer's request
Delivery Time :	1-2working days	Payment Terms :	T/T, Western Union, Paypal, Alipay, Wechat etc.

Place of Origin:	China	Brand Name:	UTOPTEK
Certification:	CE FCC ROHS	Model Number:	UP-PS0402F

Product Description

4x10/100M POE+2xUP-link IEEE802.3af/at POE Etherent switch for CCTV IP Camera Network switch

UT-PS0402F

Products Features:

1). 4*10/100Mbps POE port, 2*10/100Mbps UP-Link port

2). Extend Distance up to 250meters

3). Support IEEE802.3AF/AT Power over Ethernet PoE

4). Whole Power: 72W (52V 1.8A), Each port: <30W.

5). 1.2Gbps bandwidth

6). Automatically detects the PoE class level of a Powered Device

7).Status LEDs: System Power, PoE:100Mbps, and Link / Activity

8).Support Store-and-forward switching method

9).All port supported by MDI/MDIX auto flip and self negotiation

10).Supply 4 10/100Mpbs adaptive high speed forwarding data packet non-lost port.

11).Support IEEE802.3x flow control for Full-duplex mode and backpressure for Half-duplex mode.

Application:

Wireless Access Point

IP Camera

IP Phone

Computer Networks

Technicial Parameters:

Product name	10/100Mbps POE Switch
Ports	410/100Mbps POE port, 210/100Mbps UP-Link port
POE Port	1 to 4 support IEEE802.3AF/AT
POE Type	End - Span
Network Medium	10/100BASE-TX:5 class and above non shielded twisted pair
Switch Capability	1.2Gbps
Forwarding Mode	Store and forward
MAC Address	MAC address table 1K
LED Indicator	LINK/ACT.100Mbps;POE Status Indicator; Power indicator;Extender
Output Power	15.4W/30W
Power Pin	Both 1/2+,3/6- and 4/5+7/8-
Whole Power	≤60W (52V 1.05A)
Power Distance	≤250m
Forwarding Rate	10BASE-T:14880PPS/port 100BASE-tx:14800pps/port
Port Function	Power priority mechanism, fast and forward, MAC automatic learning and aging, IEEE802.3X Full-duplex and mode and backpressure for Half-duplex mode
Temperature	Operating: 0° ~ 50℃ Storage: -20° ~ 70°C
Humidity	Max 90% (non-condensing)
Product Size	13012136mm (LWH)
Weight	0.75KG
Warranty	2 years

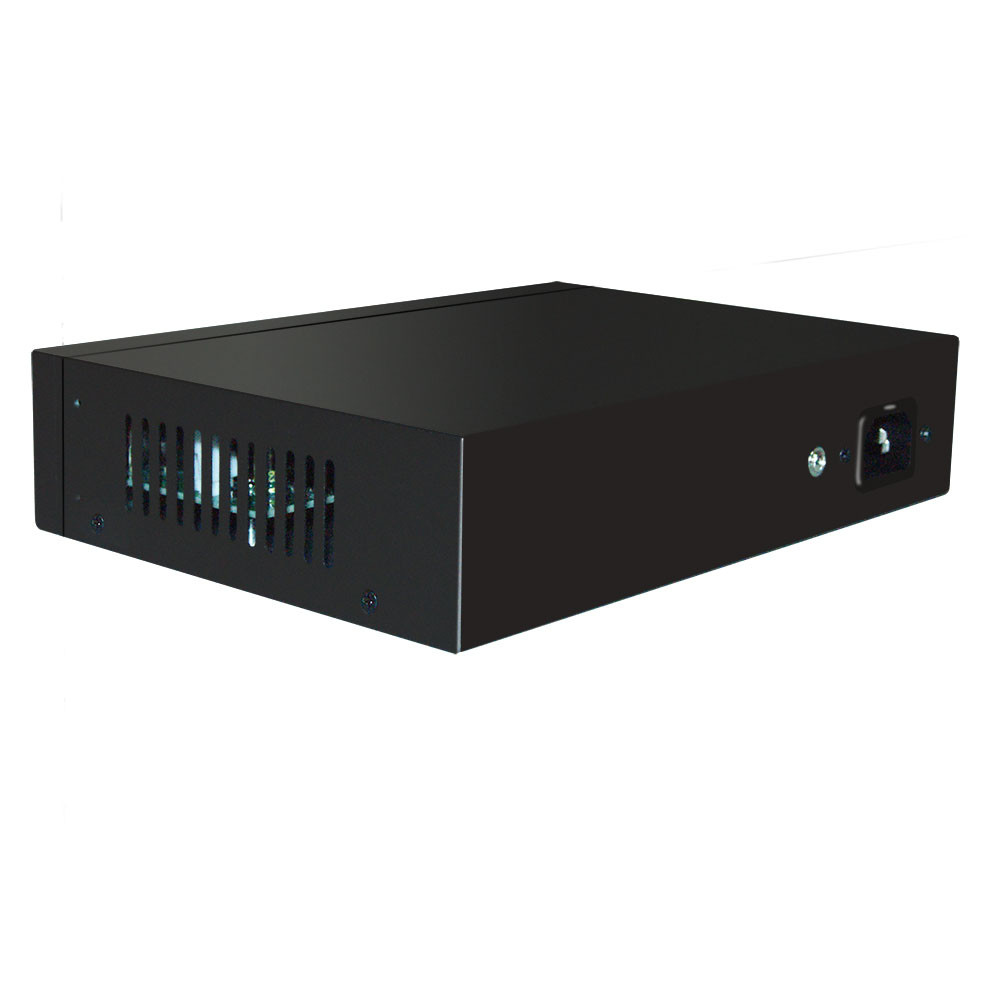

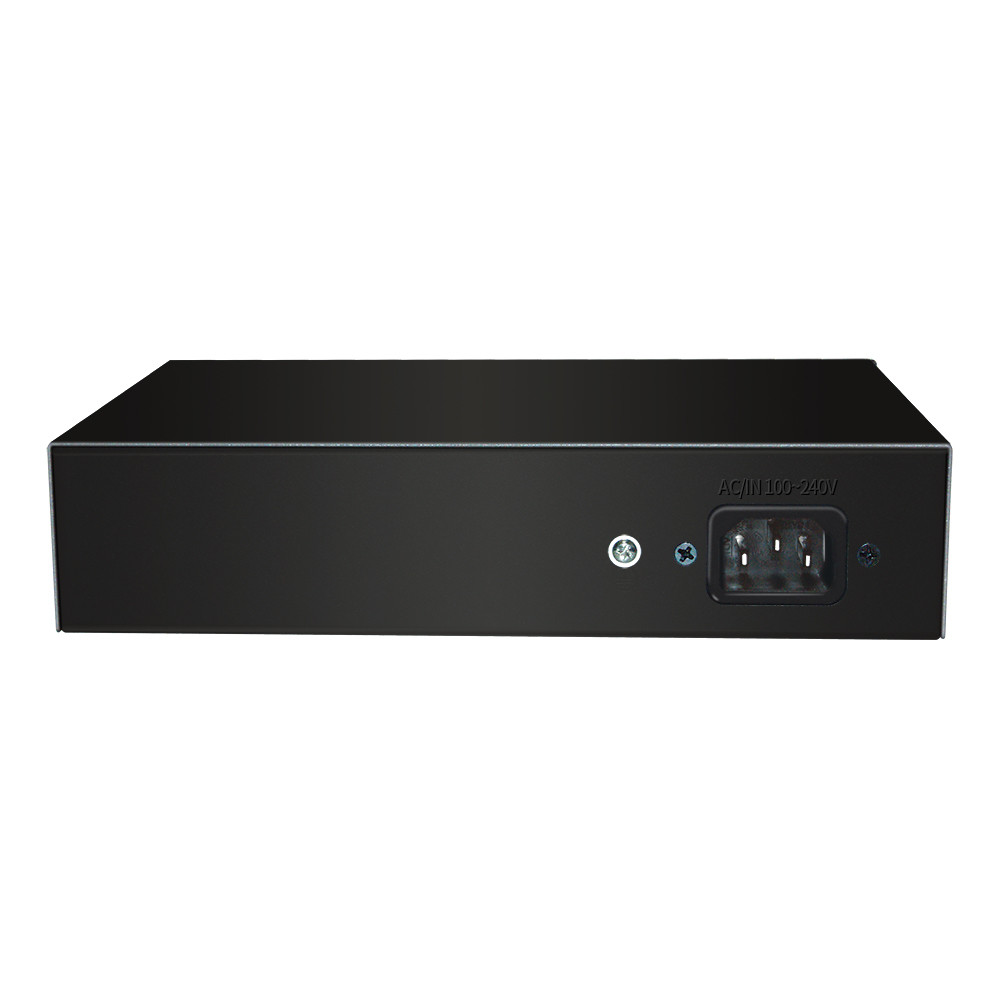

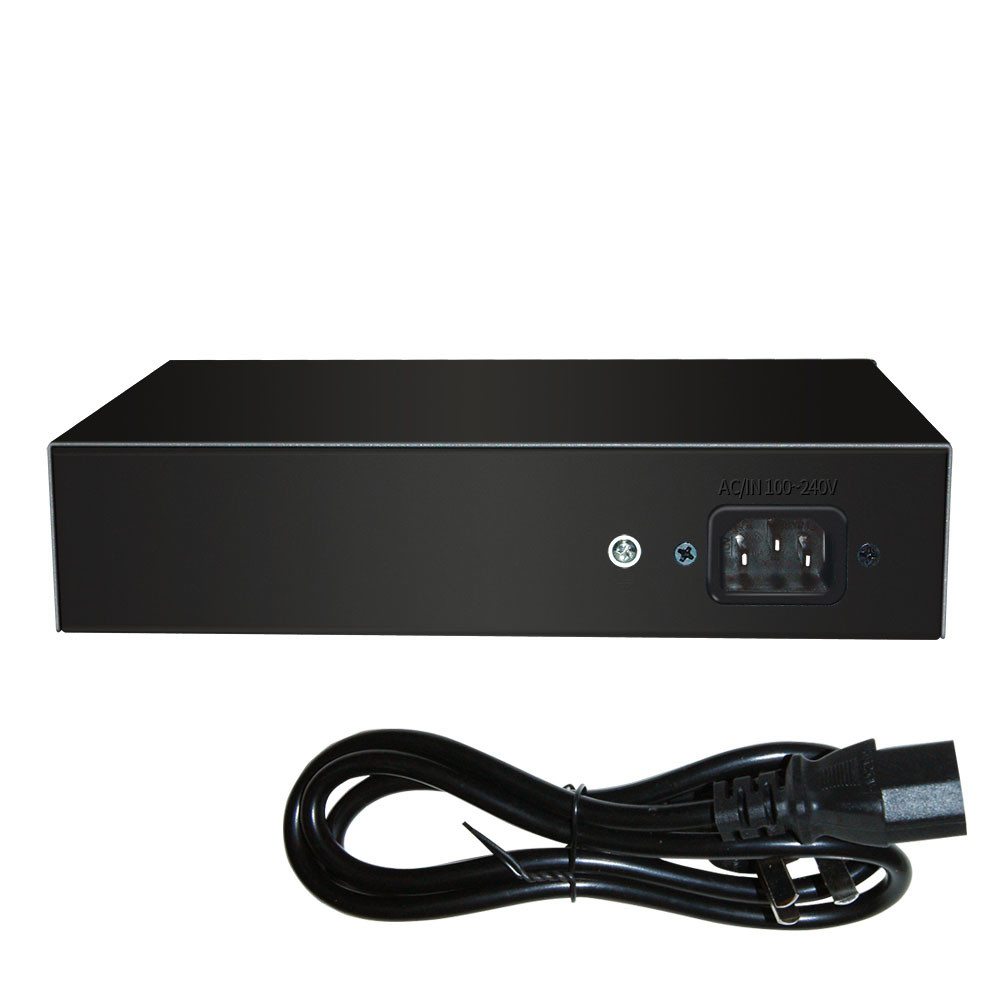

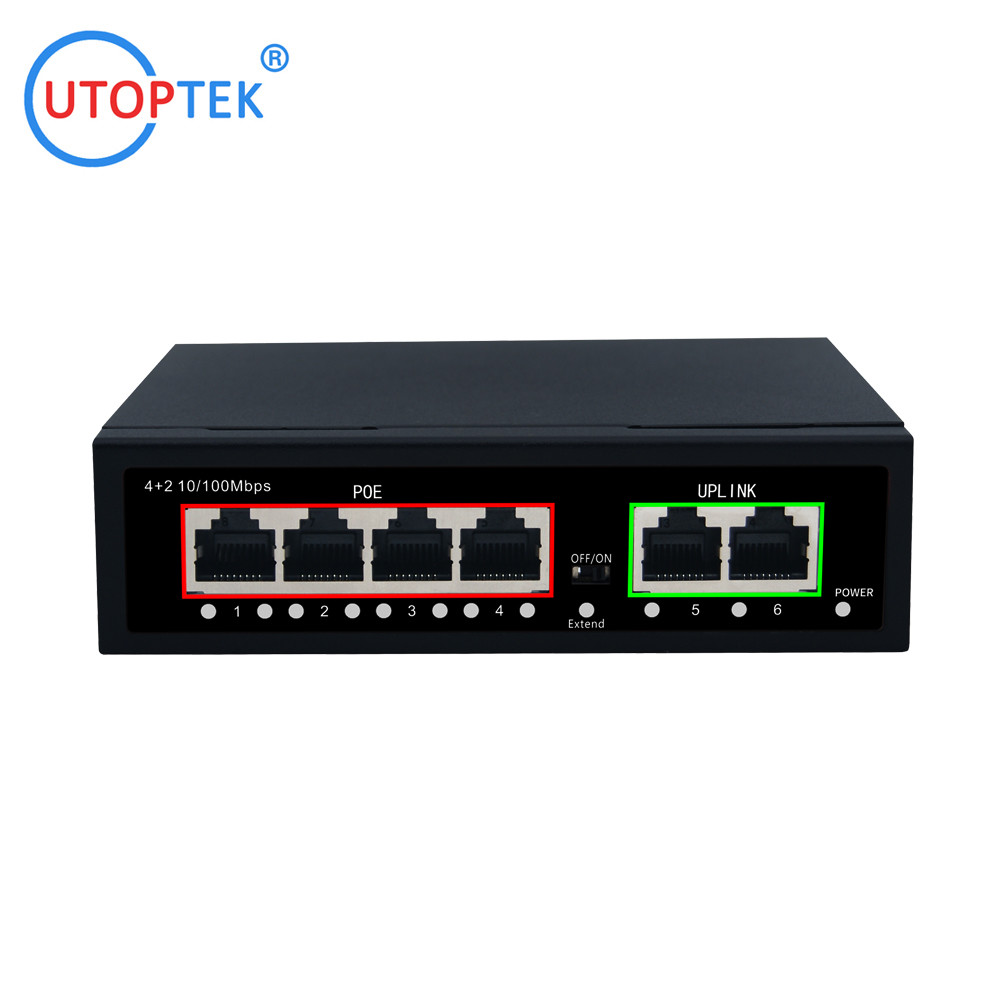

Products Show:

Ordering information:

Part number	Product description
FE: 10/100Mbps ; GE:10/100/1000Mbps ; SFP GE: 1000Mbps
UT-PS0401F	4FE POE+1FE Uplink port, IEEE802.3af/at, 250Mts
UT-PS0402F	4FE POE+2FE Uplink port, IEEE802.3af/at, 250M
UT-PS0802F	8FE POE+2FE Uplink port, IEEE802.3af/at, 250M
UT-PS08F02G	8FE POE+2GE Uplink port, IEEE802.3af/at, 250M
UT-PS08F12G	8FE POE+2GE Uplink +1GE SFP port, IEEE802.3af/at, 250M
UT-PS16F12G	16FE POE+2GE Uplink +1GE SFP port, IEEE802.3af/at, 250M
UT-PS24F02G	24FE POE+2GE Uplink , IEEE802.3af/at, 250M
UT-PS24F22G	24FE POE+2GE Uplink +2GE SFP port, IEEE802.3af/at, 250M
