RACK Mounted 16port POE+2xGE UPlink+1xSFP POE Etherent switch for IP Camera ip phone

Minimum Order Quantity :	1pcs	Packaging Details :	box package, or as customer's request
Delivery Time :	1-2working days	Payment Terms :	T/T, Western Union, Paypal, Alipay, Wechat etc.

Place of Origin:	China	Brand Name:	UTOPTEK
Certification:	CE FCC ROHS	Model Number:	UT-PS16F12G

Detail Information
Product Name:	POE Switch	POE Port:	16xPOE 10/100Mbps
Uplink Port:	2x10/100/1000Mbps RJ45	Fiber Port:	1x1000M SFP Port
Distance:	250meters(10Mbps);100meters(100Mbps)	Standard:	IEEE802.3af/at
Power Watts:	<30W Per Port	Bandwith:	8.8G
Data Signal:	Desktop Or RACK Available	Power Pin:	+12/-36 Or +45/-78
Warranty:	2 Years	Power Supply:	Built-in Power AC100~240V
Total Power:	250W

Product Description

16x10/100Mbps POE+2x1000M Uplink UTP+1x1000M SFP port POE Switch 250W

UT-PS16F12G

Products Features:

16x 10/100Mbps automatic adjustment RJ45 ports
2*10/100/1000Mbps UTP
1*Gigabit SFP Uplink port
Built-in power supply, Whole power budget: 250W
Support 250 meters long distance
6KV lightning protection
Desktop design, easy to install and use
Supply power to Cat5,5e,cat6 and up Ethernet wireless access point (AP) and network surveillance cameras
POE port comply with IEEE802.3af/at standard power supply
Meets the standards of the IEEE 802.3 /IEEE 802.3u/IEEE 802.3x
Network port has lighting-proof function (AC power port: differential mode +/-2kV, common mode +/-4kV)
Automatic adjustment, plug and play, no need software and protocol conversion

Application:

Wireless Access Point

IP Camera

IP Phone

Computer Networks

Technicial Parameters:

Product	Active 16x10/100Mbps POE+2 10/100/1000M UTP+2x1000M SFP PoE Switch
Model	UT-PS16F12G
Ports
Network Ports:	19
PoE Port:	16 x 100Mbps RJ45 ports; Max. 30W Output of Single PoE Port Transmission distance:0~250m
Uplink Port:	2x1000Mbps UTP; Transmission Distance: Defaulf: 0-100m 1x1000Mbps SFP slot
Power Indicator	Light on: Powering
Power Indicator	Light off: No Power
VLAN Indicator	Green light on: VLAN mode
VLAN Indicator	Light off: normal mode
Port 1-19 indicator	Light off: Link is disconnected
	Red light on: Powering but data disconnected
	Light flash quickly: Data Transmitting

Standard
Network Protocol:	IEEE802.3i/802.3u/802.3x/802.3af

Performance
Switching Capacity:	7.2 Gbps Full duplex
Packet Forwarding Rate:	0.1488Mpps/port
Forwarding Mode:	Store-and-forward
MAC Address Table:	2K
Vlan	1-16 Port Support
Power Over Ethernet
PoE Standard:	IEEE802.3af, IEEE802.3at
PoE Power Supply	1/2(+),3/6(-)
Transmission Distance:	0-100m/100Mbps,0-250m/10Mbps after used Extend function
PoE Feature	All ports support MDI/MDIX

General
Power Source:	Bult-in Power Supply
Power Source:	Input: 110-264V AC, 50/60Hz
PoE Power Budget:	250W
Power Consumption:	<5W
ESD	Air discharge: 1.5KV
ESD	Contact discharge: 1.5KV
Anti-Thunder Level	Common mode: 4KV
Anti-Thunder Level	Differential mode: 1.5KV
Working Temperature:	-10℃-50℃
Humidity:	10%-95% , non-condensing
Storage Temperature:	-40℃-70℃
Color	Black/Yellow
Weight:	1.7kg(not include input cable & packaging)
Dimension(L×W×H):	31218546mm (LWH)

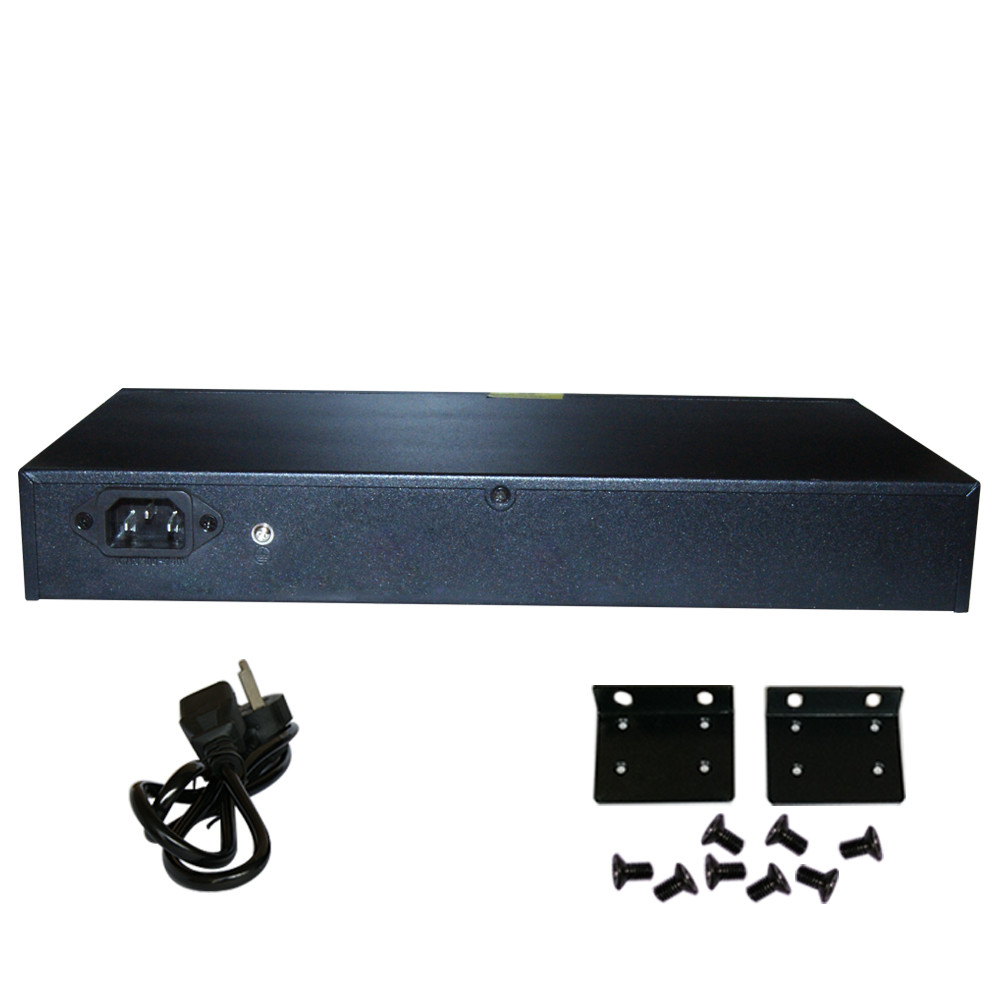

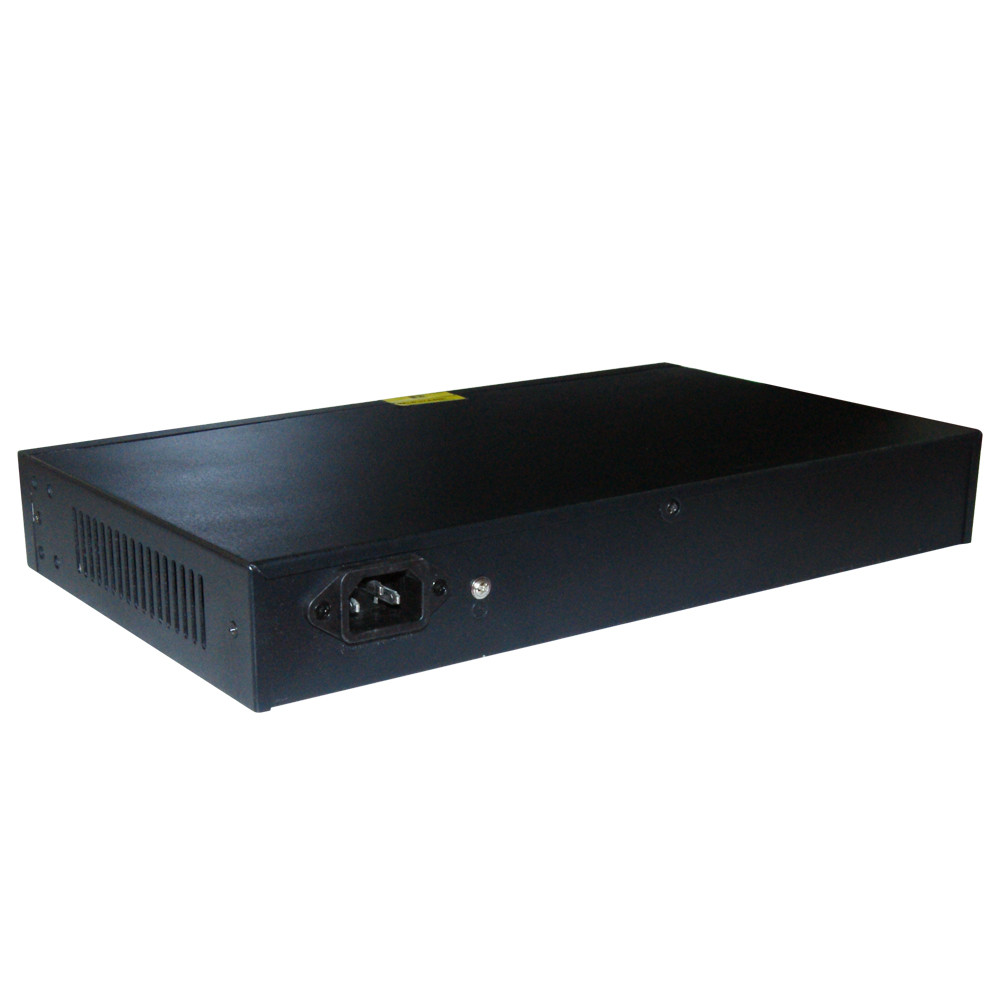

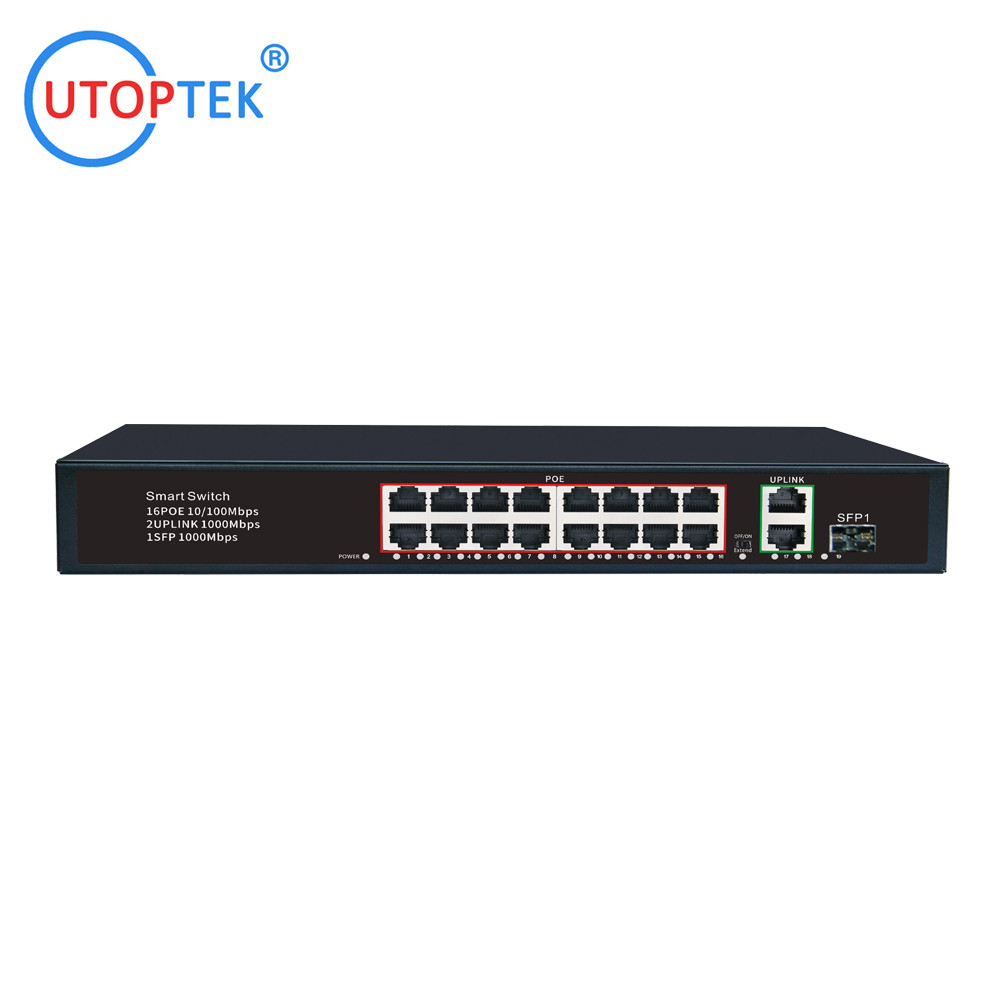

Products Show:

Ordering information:

Part number	Product description
FE: 10/100Mbps ; GE:10/100/1000Mbps ; SFP GE: 1000Mbps
UT-PS0401F	4FE POE+1FE Uplink port, IEEE802.3af/at, 250Mts
UT-PS0402F	4FE POE+2FE Uplink port, IEEE802.3af/at, 250M
UT-PS0802F	8FE POE+2FE Uplink port, IEEE802.3af/at, 250M
UT-PS08F02G	8FE POE+2GE Uplink port, IEEE802.3af/at, 250M
UT-PS08F12G	8FE POE+2GE Uplink +1GE SFP port, IEEE802.3af/at, 250M
UT-PS16F12G	16FE POE+2GE Uplink +1GE SFP port, IEEE802.3af/at, 250M
UT-PS24F02G	24FE POE+2GE Uplink , IEEE802.3af/at, 250M
UT-PS24F22G	24FE POE+2GE Uplink +2GE SFP port, IEEE802.3af/at, 250M
