High quality RACK 24port 100M POE+2xGE UPlink+2GE SFP POE Etherent switch 250m for IP Camera ip phone

Minimum Order Quantity :	1pcs	Packaging Details :	box package, or as customer's request
Delivery Time :	1-2working days	Payment Terms :	T/T, Western Union, Paypal, Alipay, Wechat etc.

Place of Origin:	China	Brand Name:	UTOPTEK
Certification:	CE FCC ROHS	Model Number:	UP-PS24F22G

Detail Information
Product Name:	POE Switch	POE Port:	24xPOE 10/100Mbps
Uplink Port:	2x10/100/1000Mbps	Fiber Port:	2x1000M SFP Socked
Distance:	250meters(10Mbps);100meters(100Mbps)	Standard:	IEEE802.3af/at
Power Watts:	<30W Per Port	Bandwith:	8.8G
Installation:	Desktop Or RACK Mount Available	Power Pin:	+12/-36 Or +45/-78
Warranty:	2 Years	Power Supply:	Built-in Power AC100~240V
Total Power:	350W

Product Description

High quality RACK 24port 100M POE+2xGE UPlink+2GE SFP POE Etherent switch 250m for IP Camera ip phone

UT-PS24F22G

Products Features:

1). 24*10/100Mbps POE port, 2*10/100/1000Mbps UP-Link port, 2x1000M SFP socked

2). Extend Distance up to 250meters

3). Support IEEE802.3AF/AT Power over Ethernet PoE

4). Whole Power: 360W (52V 7.5A), Each port: <30W.

5). 8.8Gbps bandwidth

6). Automatically detects the PoE class level of a Powered Device

7).Status LEDs: System Power, PoE:100Mbps, and Link / Activity

8).Support Store-and-forward switching method

9).All port supported by MDI/MDIX auto flip and self negotiation

10).Supply 24 10/100Mpbs adaptive high speed forwarding data packet non-lost port.

11).Support IEEE802.3x flow control for Full-duplex mode and backpressure for Half-duplex mode.

Application:

Wireless Access Point

IP Camera

IP Phone

Computer Networks

Technicial Parameters:

Product name	10/100Mbps POE Switch
Ports	2410/100Mbps POE port, 210/100/1000Mbps UP-Link port 2x1000M SFP socked
POE Port	1 to 24 support IEEE802.3AF/AT
POE Type	End - Span
Network Medium	10/100BASE-TX:5 class and above non shielded twisted pair
Switch Capability	8.8Gbps
Forwarding Mode	Store and forward
MAC Address	MAC address table 1K
LED Indicator	LINK/ACT.100Mbps;POE Status Indicator; Power indicator;Extender
Output Power	15.4W/30W
Power Pin	Both 1/2+,3/6- and 4/5+7/8-
Whole Power	≤360W (52V 7.5A)
Power Distance	≤250m
Forwarding Rate	10BASE-T:14880PPS/port 100BASE-tx:14800pps/port
Port Function	Power priority mechanism, fast and forward, MAC automatic learning and aging, IEEE802.3X Full-duplex and mode and backpressure for Half-duplex mode
Temperature	Operating: 0° ~ 50℃ Storage: -20° ~ 70°C
Humidity	Max 90% (non-condensing)
Product Size	440mm285mm55mm(LWH)
Weight	4.3KG
Warranty	2 years

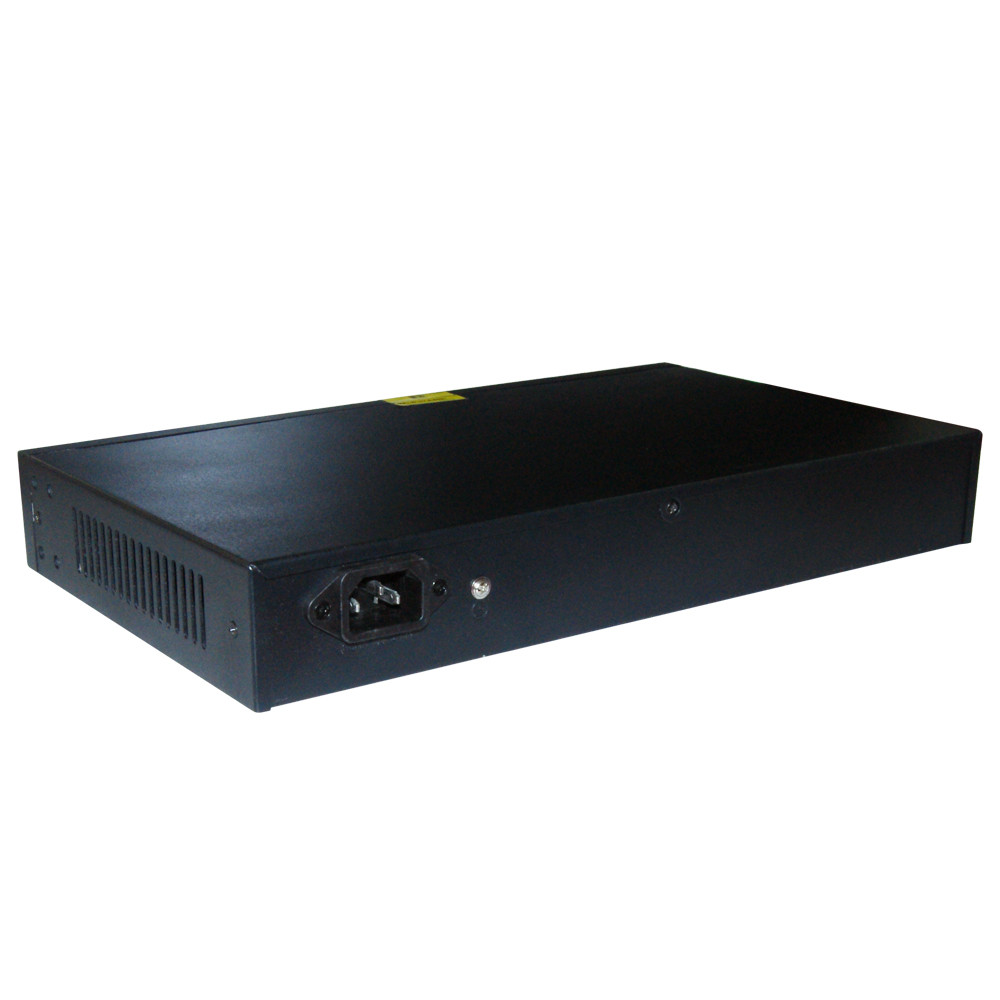

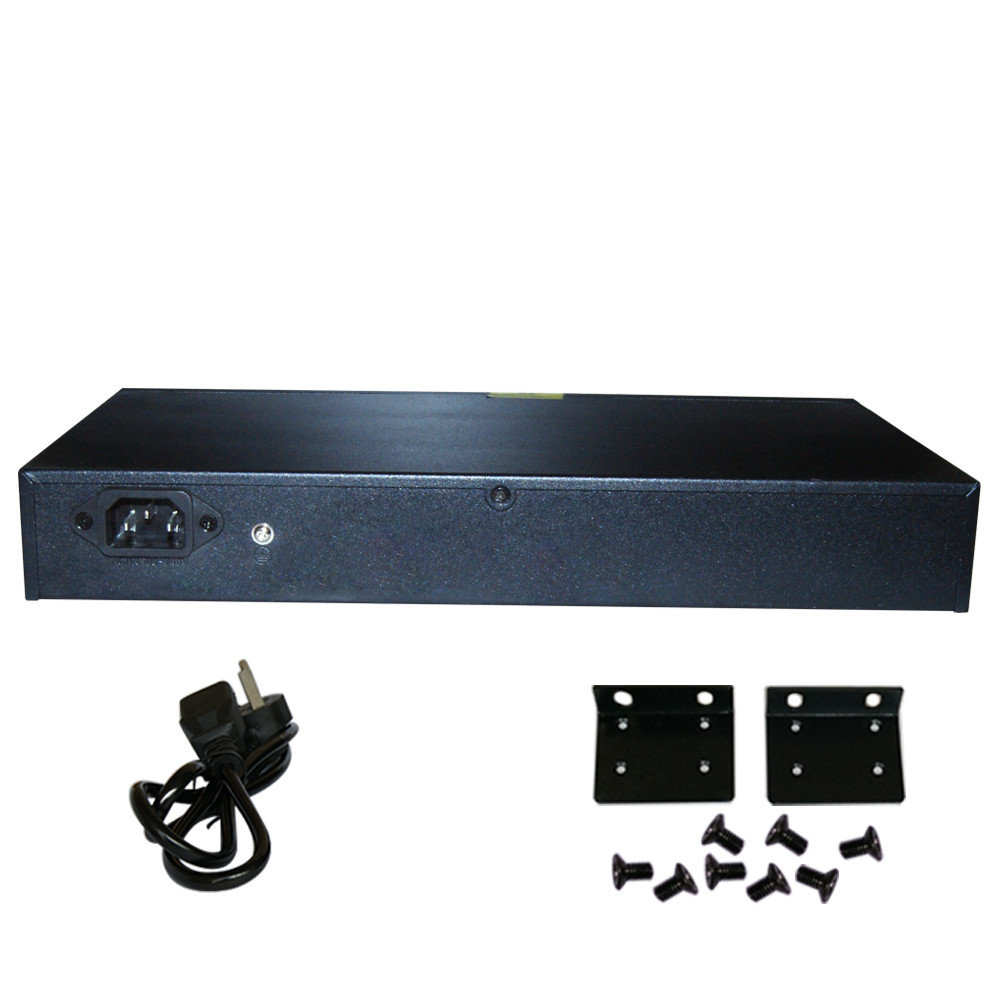

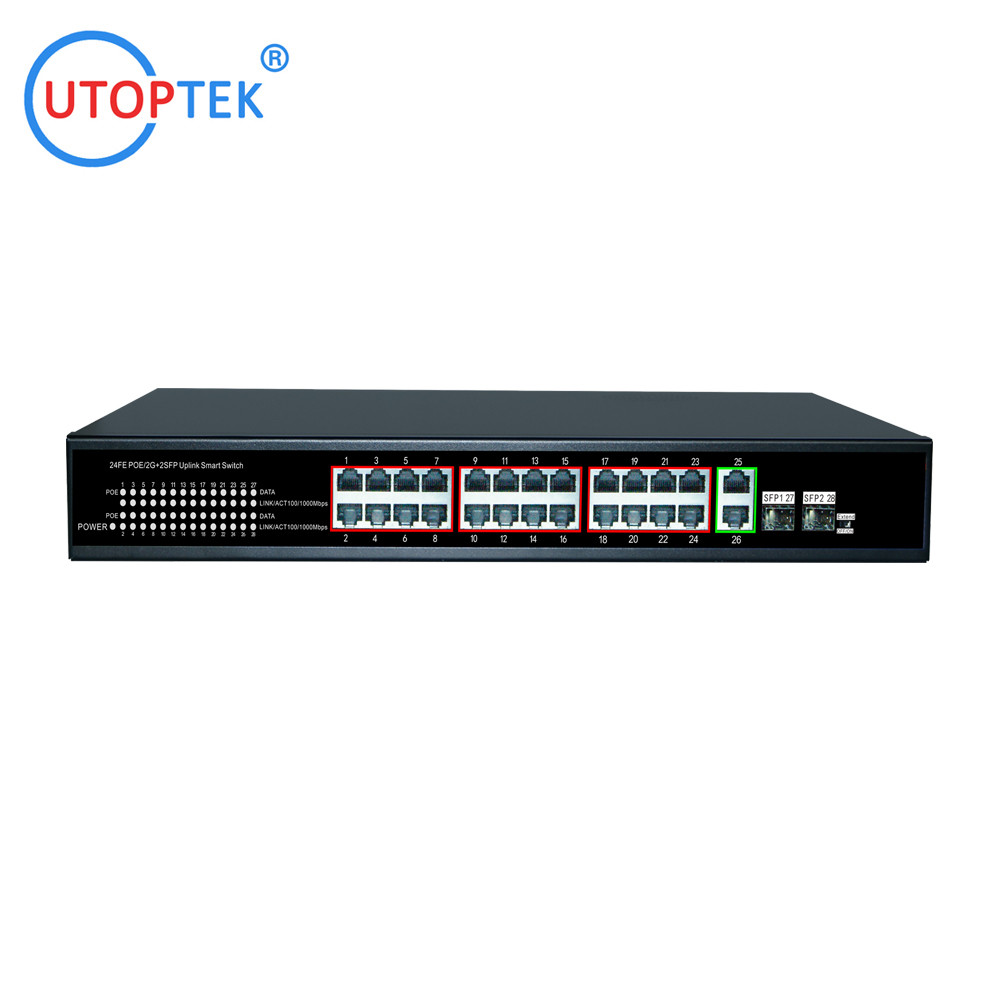

Products Show:

High quality RACK 24port 100M POE+2xGE UPlink+2GE SFP POE Etherent switch 250m for IP Camera ip phone 0

Ordering information:

Part number	Product description
FE: 10/100Mbps ; GE:10/100/1000Mbps ; SFP GE: 1000Mbps
UT-PS0401F	4FE POE+1FE Uplink port, IEEE802.3af/at, 250Mts
UT-PS0402F	4FE POE+2FE Uplink port, IEEE802.3af/at, 250M
UT-PS0802F	8FE POE+2FE Uplink port, IEEE802.3af/at, 250M
UT-PS08F02G	8FE POE+2GE Uplink port, IEEE802.3af/at, 250M
UT-PS08F12G	8FE POE+2GE Uplink +1GE SFP port, IEEE802.3af/at, 250M
UT-PS16F12G	16FE POE+2GE Uplink +1GE SFP port, IEEE802.3af/at, 250M
UT-PS24F02G	24FE POE+2GE Uplink , IEEE802.3af/at, 250M
UT-PS24F22G	24FE POE+2GE Uplink +2GE SFP port, IEEE802.3af/at, 250M
