100M or 1000M POE 48V to 5V Micro USB output Isolated PoE Splitter IEEE802.3af/at for CCTV APs

Minimum Order Quantity :	10pcs	Packaging Details :	300pcs per Carton,485400325mm,16.5KG
Delivery Time :	2-3days	Payment Terms :	T/T, Western Union, Paypal, Alipay, Wechat etc..
Supply Ability :	50000pcs per month

Place of Origin:	China	Brand Name:	UTOPTEK
Certification:	CE	Model Number:	UT-PS4805-USB

Detail Information
Product Name:	Standard POE Splitter	Input POE:	DC48-55V
Output:	Micro USB:5V/2.4A; RJ45 For Data	Data Signal:	1236
Pins (power+data):	1/2+ 3/6- ; 4/5+ 7/8-	Agreement:	IEEE802.3AT/AF
Isolated:	12W	Warranty:	1year

Product Description

Micro-USB PoE splitter, input POE 48V to output Micro USB 5V/2.4A, IEEE802.3af/at

Description:

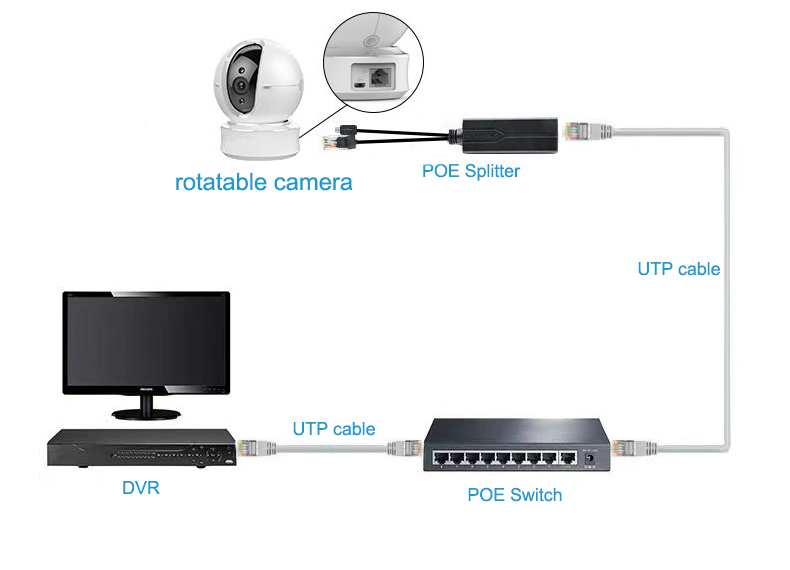

This is a POE ethernet & power splitter device which is based on IEEE802.3 af/at, it can work with POE power supply device (such as POE switch) which meet the IEEE802.3af/at standard and provide the network and power for the device which can not support POE. This product is widely used in security surveillance and network engineer.

Features

1. Protection: Excellent circuit isolation protection, effectively improve product's lightning, ESD and anti-interference ability;
2. Power Supply: Compatible with mode A (End-Span) and mode B(Mid-Span);
3. Standard: IEEE 802.3i 10BASE-T;·IEEE 802.3u 100BASE-TX;IEEE 802.3x Flow Control;IEEE 802.3af Power over Ethernet;IEEE 802.3at Power over Ethernet

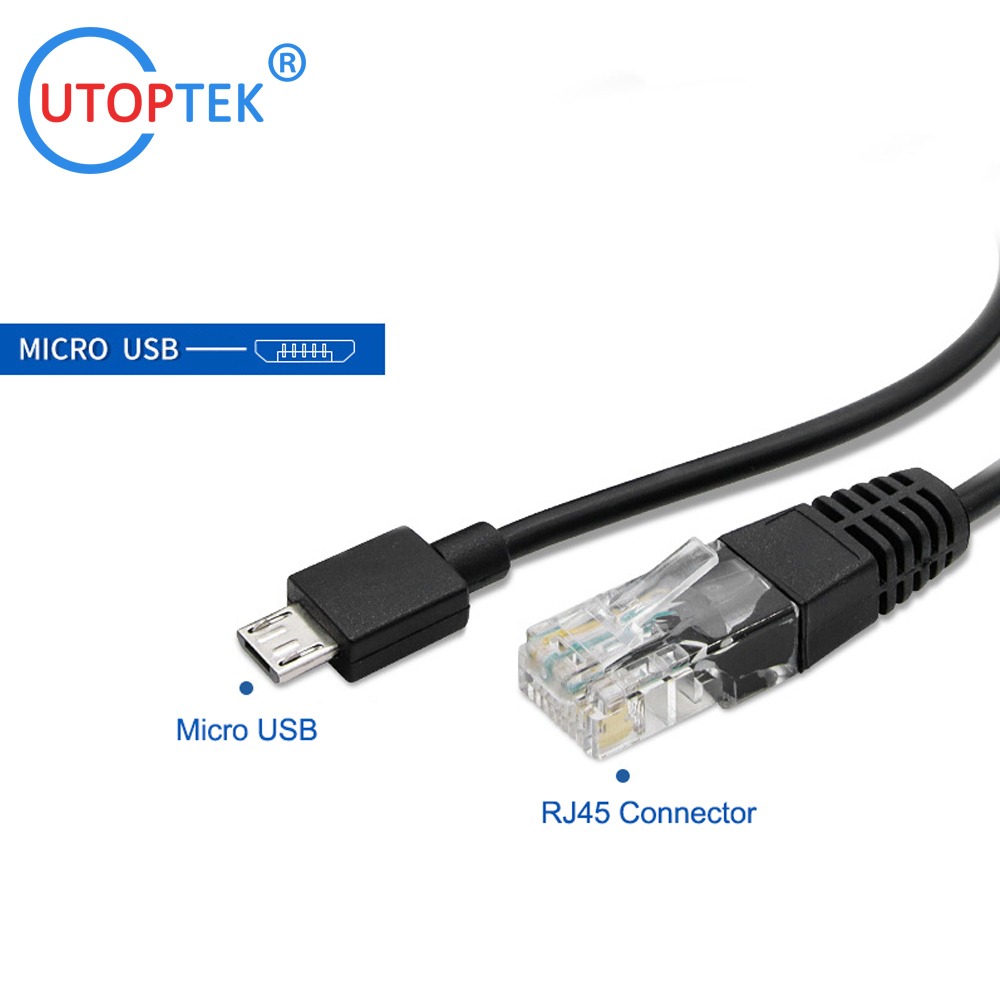

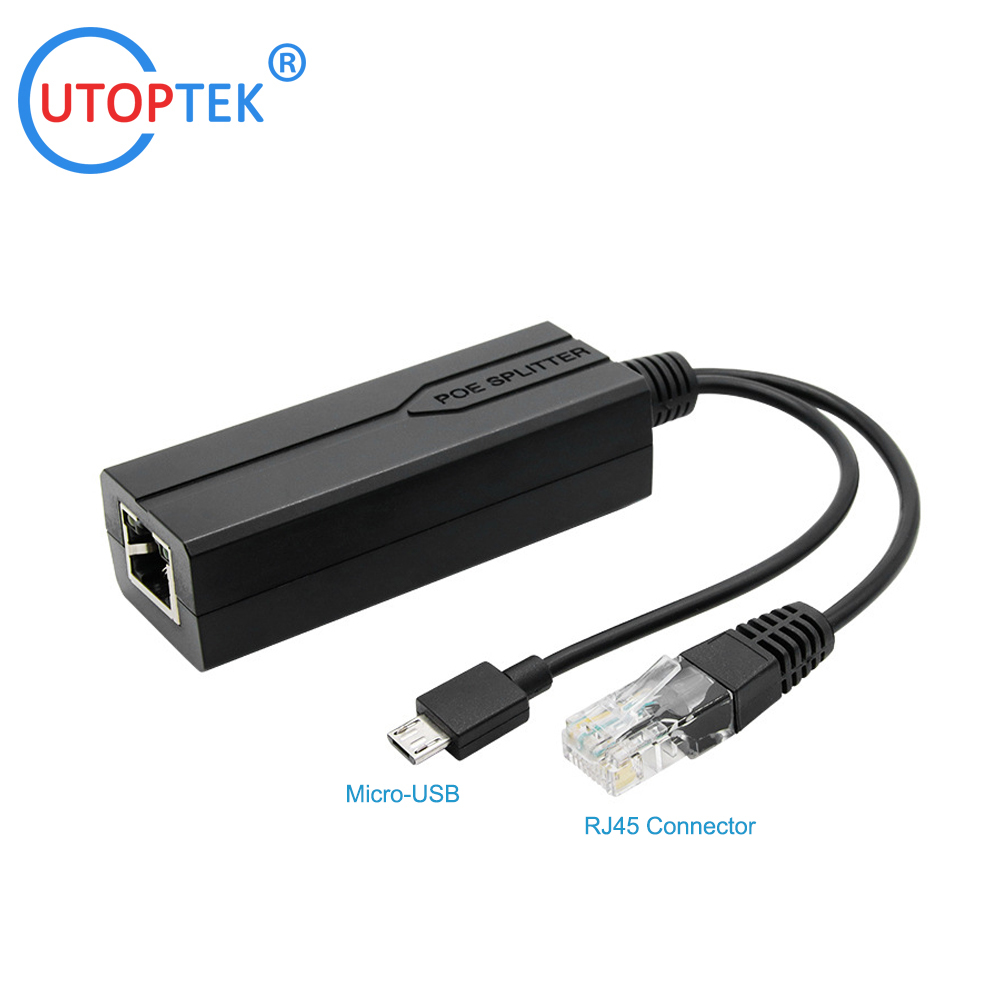

4. POE input: RJ45 port, Power Output: DC5V with Micro-USB port, Data output: RJ45.
5. Appearance and Structure: Compact size, easily install.
6. Operation: Plug and play, no need settings.

Technical Parameter:

	Item	Description
PoE Power Supply	Protocol	IEEE803.2af/at
	Power Supply	Compatible Mode A (End-Span) and Mode B (Mid-Span)
	Power Consumption	≤12W
	Input Voltage	PoE 36V-57V
	Output Voltage	DC 5V Micro USB
	Output Ripple	<5%
Ethernet Port	Ethernet Port	1×RJ45 Input
	Transmission Speed	10/100M or 1000Mbps optional
	Transmission Medium	Cat5/5e/6 Standard Network Cable
	Transmission Distance	100m (Maximum)
LED Status Indicator	Input PoE Power Indicator	1 (POE IN Port RJ45 Yellow Light)
LED Status Indicator	Output DC Power Indicator	1 (Ethernet Port RJ45 Yellow Light)
Protection	ESD	1a Contact discharge Level 3 1b Air discharge Level 3 Per: IEC61000-4-2
Protection	Lightning Protection	Power: 2KV Signal: 1KV Per: IEC61000-4-5
Environmental	Working Temperature	-40℃~75℃
	Storage Temperature	-40℃~85℃
	Humidity (non-condensing)	0~95%
Mechanical	Dimension (L×W×H)	82mm×61mm×25mm
	Material	Aluminum
	Color	Black
	Weight	123g
Stability	MTBF	>30000h

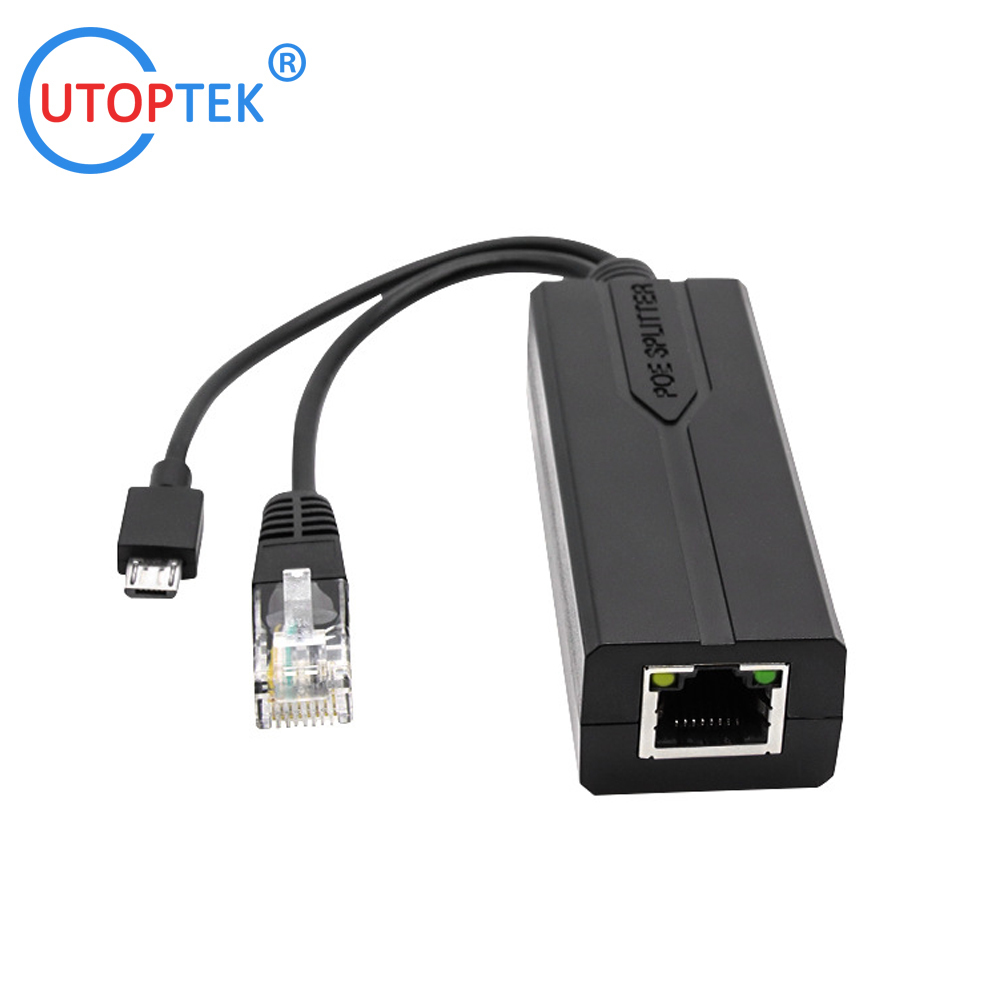

Product Images:

100M or 1000M POE 48V to 5V Micro USB output Isolated PoE Splitter IEEE802.3af/at for CCTV APs 0

Odering Models:

Model	Description
UT-PS4812	10/100M PoE splitter, 48V to 12V/1A, IEEE802.3af, Isolated type:1.5KV
UT-PS4805	10/100M PoE splitter, 48V to 5V/2.4A, IEEE802.3af,Isolated type:1.5KV
UT-PS4812G	10/100/1000M PoE splitter, 48V to 12V/2A, IEEE802.3af,Isolated type:1.5KV
UT-PS4805G	10/100/1000M PoE splitter, 48V to 5V/2.4A, IEEE802.3af,Isolated type:1.5KV
UT-PS4812W	White Waterproof 10/100M PoE splitter, 48V to 12V/1A, IEEE802.3af
UT-PS4805-USB	Micro-USB 10/100M PoE splitter, 48V to 5V/2.4A, IEEE802.3af
UT-PS4805G-USB	Micro-USB 10/100/1000M PoE splitter, 48V to 5V/2.4A, IEEE802.3af
UT-PS4805-TypeC	Type-C 10/100M PoE splitter, 48V to 5V/2.4A, IEEE802.3af
UT-PS4805G-TypeC	Type-C 10/100/1000M PoE splitter, 48V to 5V/2.4A, IEEE802.3af
UT-PS2412W	White Waterproof 10/100M PoE splitter, 24V to 12V/1A
UT-PS2412	Black color, 10/100M PoE splitter, 24V to 12V/1A
UT-PS4824	Black color, 10/100M PoE splitter, 48V to 24V/1A,Isolated type:1.5KV
