10/100/1000/2500Mbps 90W Gigabit 2.5G Standard POE Injector 802.3af/at/bt PoE data & power:100meters for Cameras wireless AP

Name: 10/100/1000/2500Mbps 90W Gigabit 2.5G Standard POE Injector 802.3af/at/bt PoE data & power:100meters for Cameras wireless AP
Brand: UTOPTEK
SKU: UT-PSE90G
Rating: 4.7 (102 reviews)

Minimum Order Quantity :	2	Packaging Details :	60pcs/Carton
Delivery Time :	2-3days	Payment Terms :	T/T,WU,Paypal,Alipay,RMB pay
Supply Ability :	10Kpcs per month

Place of Origin:	China	Brand Name:	UTOPTEK
Certification:	CE	Model Number:	UT-PSE90G

Detail Information
Data Rate:	10/100/1000/2500Mbps	Product Name:	POE Injector
Power Input:	AC110-240V, 50/60Hz	Power Output:	DC55V/1.63A/90W
Plug Type:	US/EU/UK/AU Available	POE Standard:	IEEE802.3af/at/bt
POE Pin:	1,2+/3,6-; 4,5+/7,8-	POE Voltage:	90W Max
Dimension:	170mm75mm42mm	Package Weight:	0.5Kg
Working Temperature:	-10~+60 Degrees

Product Description

10/100/1000/2500Mbps 90W Gigabit Standard POE Injector 802.3af/at/bt PoE data & power:100meters for Cameras wireless AP

Product Description:

The UT-PSE90G is a Gigabit Power over Ethernet Injector with one Ethernet Input (data only) port and one Output (data + power) port that is designed for small or medium network environments. The UT-PSE90G supplies remote power for new applications such as wireless access points, pan-tilt-zoom (PTZ) IP cameras and videophones. It complies with IEEE 802.3bt PoE standard and is backwards to IEEE802.3af/at. It can work with 10/100Base-T networking devices and emerging 1000Base-T devices such as Wi-MAX and wireless IEEE 802.11n access points. By adding a PoE Splitter to existing non-PoE networking equipment, installing networking products such as Access Points and IP cameras can easily be performed. Wireless device deployments are easily located without the need for power outlets and network administrators don’t need to use AC power adapters anymore. For all the function featured in UT-PSE90G, people can get the benefit of flexible network installation at lower cost, less downtime.

Features:

- Up to 90W of PoE Power
- IEEE 802.3af/at/bt Compliant
- Safe on Low Power Devices Receive Only the Power They Need
- Safe and Reliable Power to WLAN Access Points
- Automatic Detection and Protection of Non–standard Ethernet Terminals
- Supports 10/100/1000/2500Base-T LAN environment
- Unique interlocking feature for easy installation

Technical Parameters:

Standard	IEEE802.3 10BASE-T
	IEEE802.3u 100BASE-TX
	IEEE802.3z 1000BASE-TX
	IEEE802.3z 2500BASE-TX
	IEEE802.3x Flow Control
	IEEE802.3af/at Power over Ethernet
PoE power	15.4W per port (IEEE802.3af) 25.5W per port (IEEE802.3at) 90W per port (IEEE802.3bt)
	Wiring: Data & power provided over pairs 1,2+/3,6-; 4,5+/7,8-
	Cable: UTP cat.5 or higher
Distance	100Meters by UTP cat.5 or higher
UTP Data rate	10/100/1000Mpbs
Connector	1 RJ45 port(Data&Power), 1 RJ45 (Data)
Led indicator	Green LED light indicates working normal
Protection	Short circuit protection
Input power	AC100~240V, 50/60Hz
Output Power	DC48V~56V
Power Consumption	<90W max
Product Size	19x10x5cm
Weight	0.8Kg (includes AC cable)
Temperature	-10~60℃(Operating) -20~70℃(Storage)
Humidity	5%~90%

Packing and Shipping:

UTOPTEK's POE injector are packaged in a foam boxes for protection during shipping. The box is then placed inside a larger shipping box with adequate packing materials to prevent damage during shipping and handling. All shipping boxes are labeled with the product name, Model number, and can be customized customer's Logo too.
The product is shipped via a reliable courier service such as FedEx, UPS, or DHL. Tracking numbers are provided to customers once the product has been shipped.

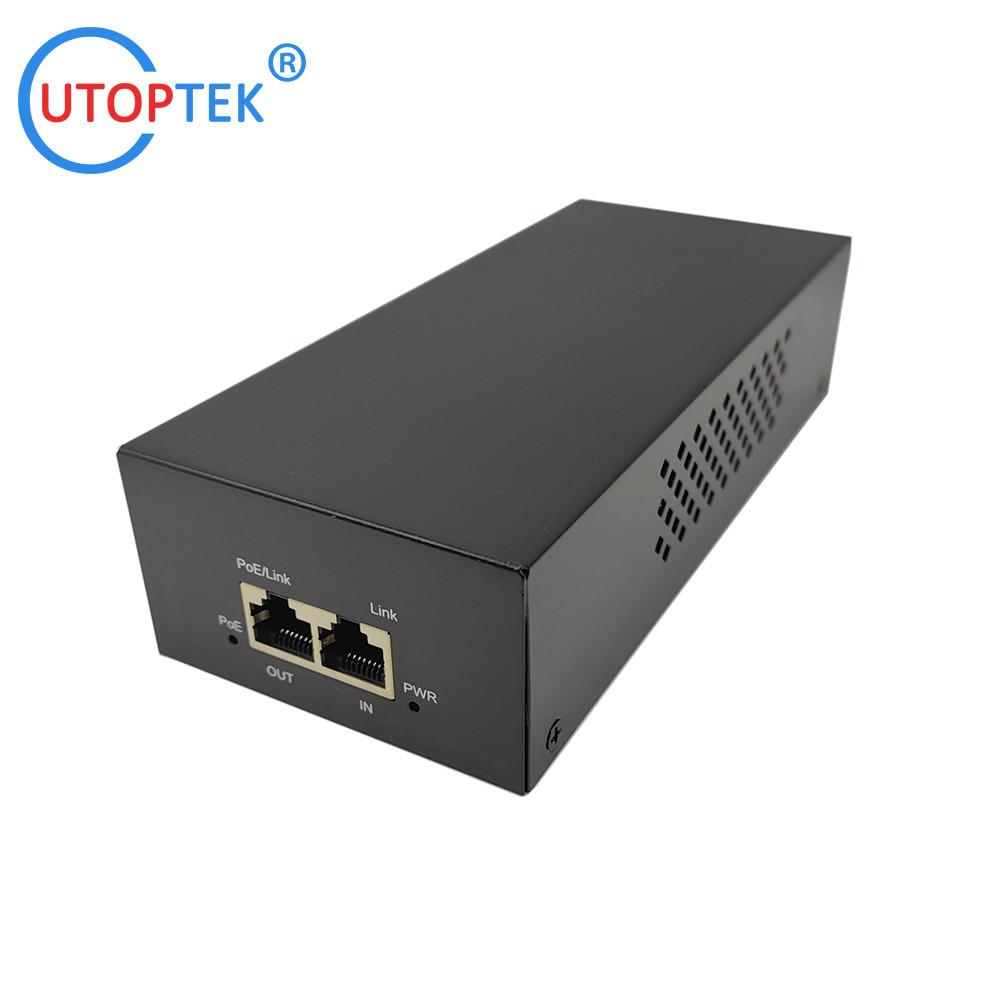

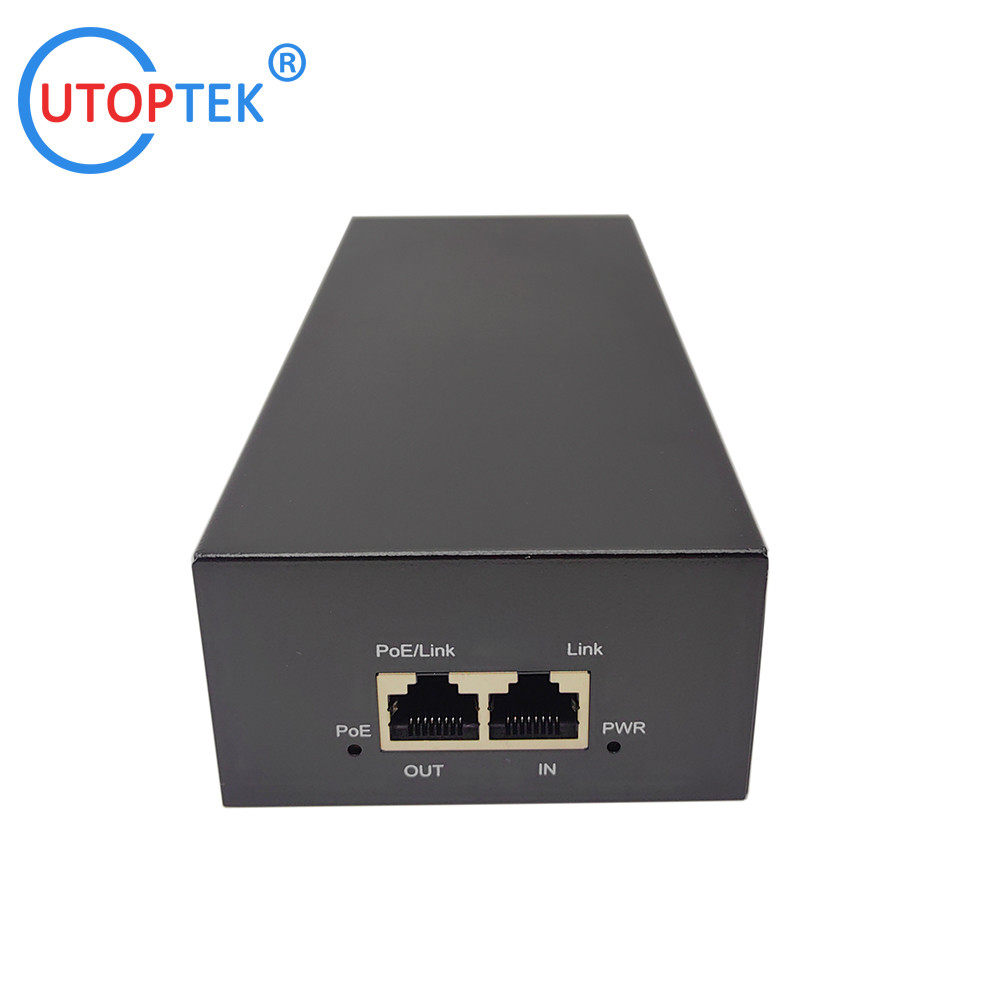

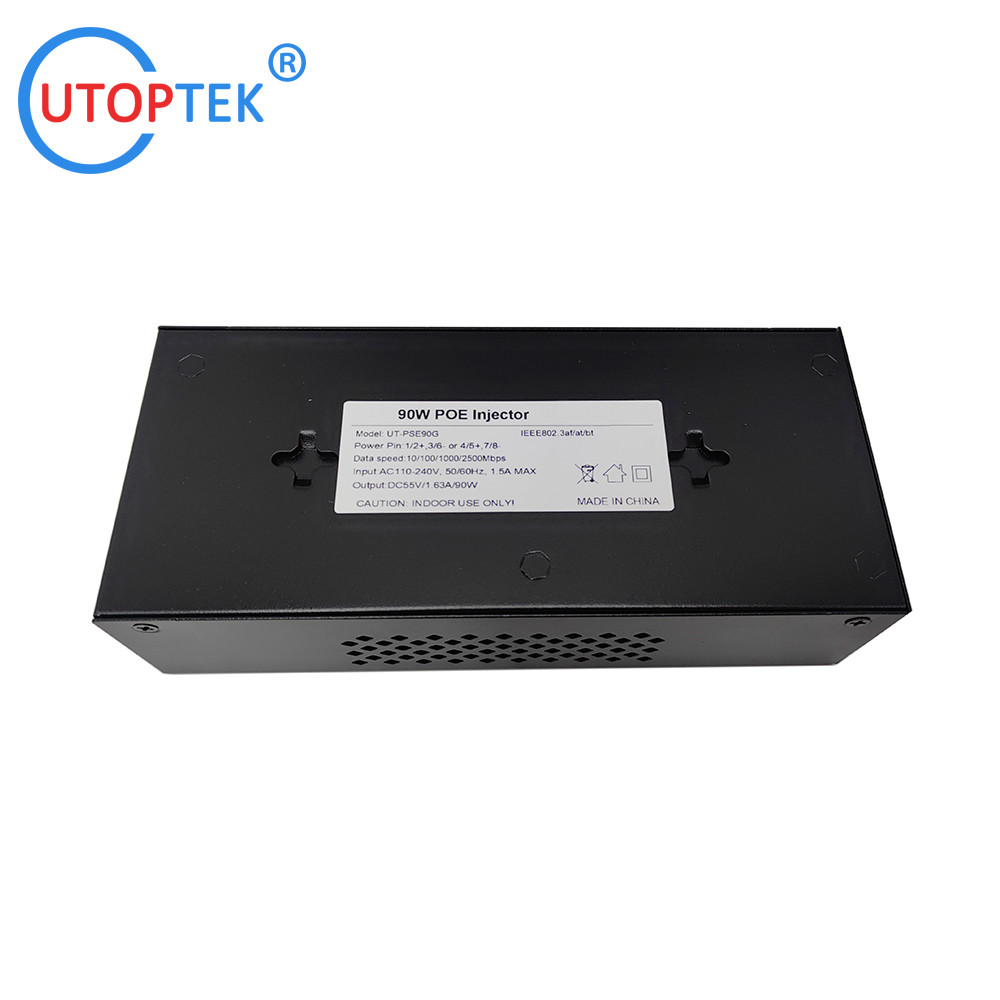

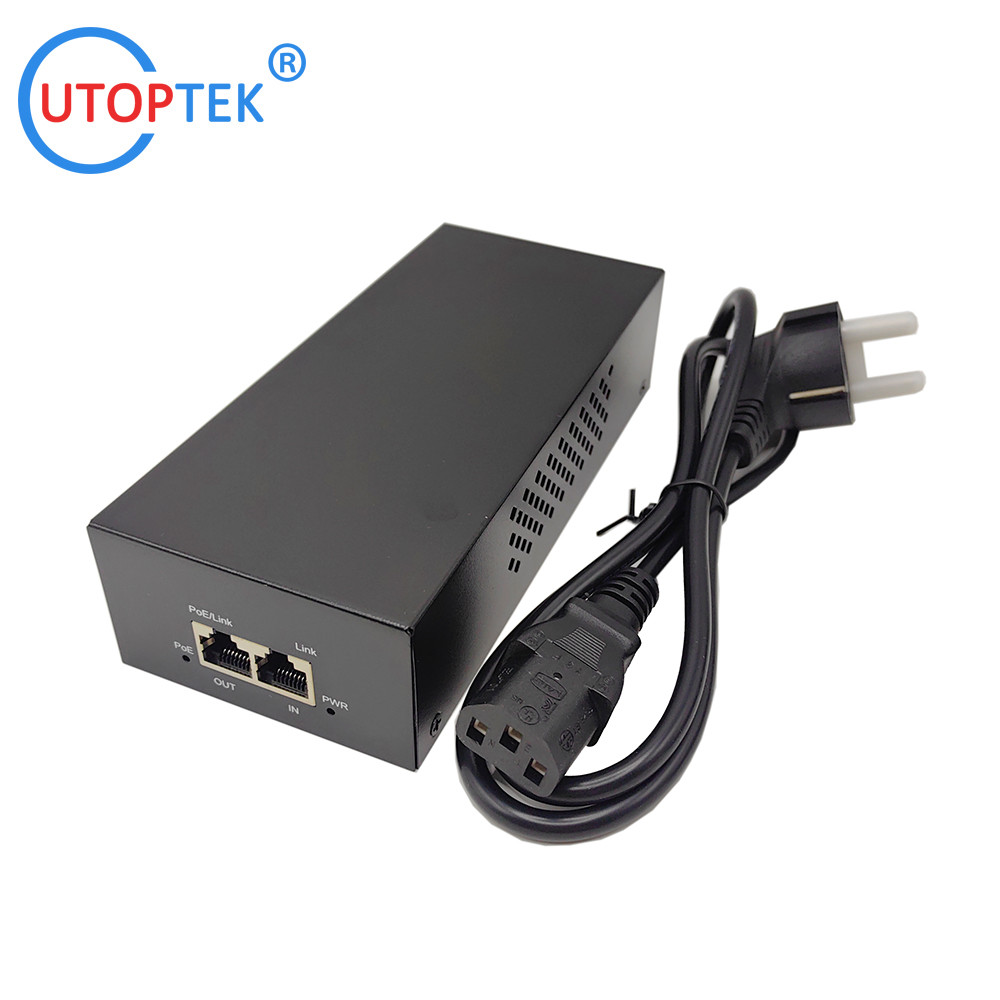

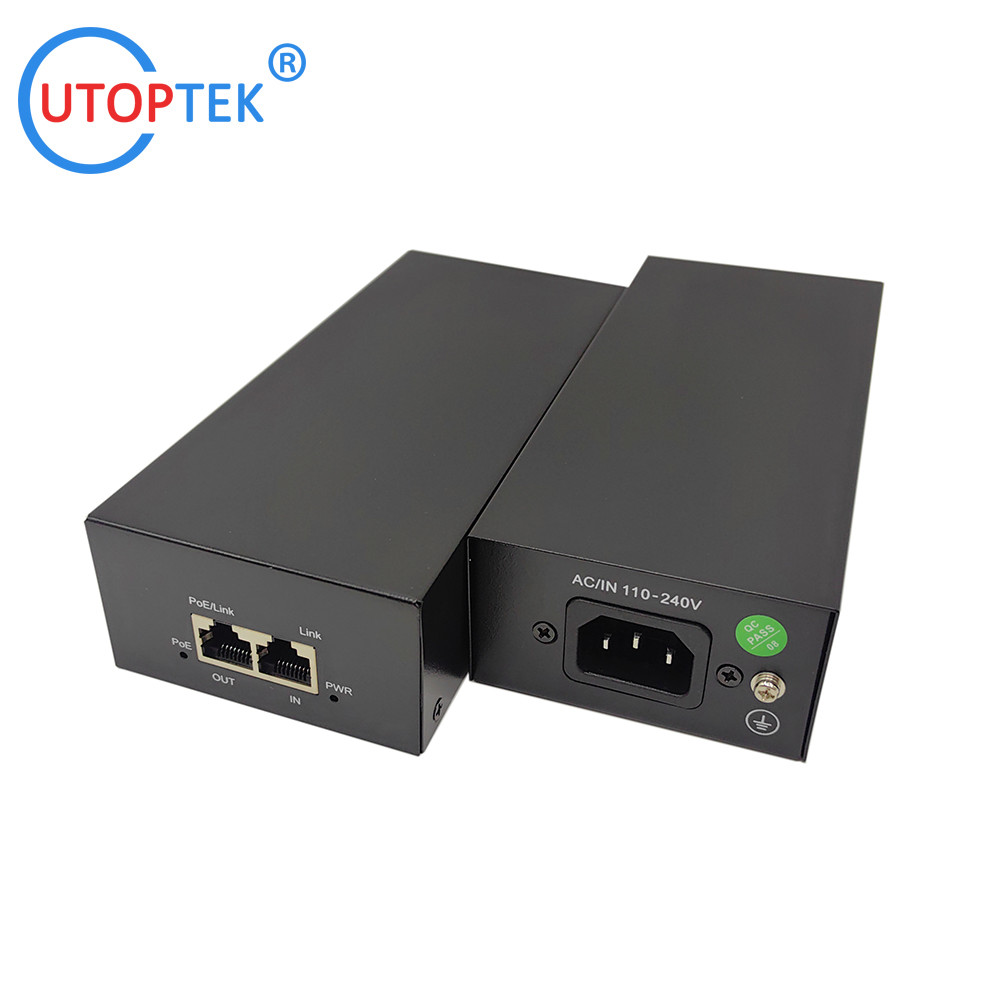

Product photoes:

10/100/1000/2500Mbps 90W Gigabit 2.5G Standard POE Injector 802.3af/at/bt PoE data & power:100meters for Cameras wireless AP 0

Product Application:

10/100/1000/2500Mbps 90W Gigabit 2.5G Standard POE Injector 802.3af/at/bt PoE data & power:100meters for Cameras wireless AP 4

Ordering Models:

Model Number	Description
UT-PSE30	Passive POE Injector 10/100Mbps 48V/30W, PoE Pin:4,5+/7,8-,Input Power:100~240VAC,PoE data & power:100meters
UT-PSE30G	10/100/1000/2500Mbps POE Injector 30W, IEEE802.3af/at Standard, PoE Pin:1,2+/3,6- or 4/5+ 7/8-, data:1/2,3/6,4/5,7/8; Input Power:AC100V-240V50/60Hz, Material: Plastic, Net Weight:0.25kg,11.5x5x3CM; 50pcs/CTN/47x30x31CM/12.5kg
UT-PSE60G	10/100/1000/2500Mbps POE Injector 60W, IEEE802.3af/at Standard, PoE Pin:1,2+/3,6- or 4/5+ 7/8-, data:1/2,3/6,4/5,7/8; Input Power:AC100V-240V50/60Hz, Material: Plastic, Net Weight:0.25KG,14.2x5.5x4CM; 20pcs/CTN/47x29x30CM/10.2Kg
UT-PSE90G	10/100/1000/2500Mbps POE Injector 90W, IEEE802.3af/at/bt Standard, PoE Pin:1,2+/3,6- or 4/5+ 7/8-, data:1/2,3/6,4/5,7/8; Input Power:AC100V-240V50/60Hz, Material: Metal, Net Weight:0.5KG,17x7.5x4.2CM; 20pcs/CTN/47x29x30CM/14.3Kg

FAQ:

Q1 . What's your MOQ?

A1 .1 pc/pair is ok, we don't have MOQ limited.
Q2.What certification did you get?
A2 : Our products passed the CE,FCC,ROHS and SGS test, you can trust our quality very good.
Q3 :What about your delivery time?
A3:For small sample QTY,we have in stock, need 1day.
For QTY 200-500, usually will take 2-3working days. for big QTY pls contact our sales about details.
Q4.What your common shipping method?
A4:By air, by sea or express(DHL,Fedex,UPS,TNT,EMS...), We will make a perfect delivery plan for you.
Q5.How about your product warranty time?
A5:Our products have 1/3/5years warranty for different product series.
Q6. How to handle quality issues with your product?
We give you the promise if any question during 1 year and not cause by human factors, we will fix it.
