4x10/100/1000M POE 30W+1UTP+1SFP IEEE802.3af/at POE Etherent switch for CCTV Network system
4x10/100/1000M POE 30W+1UTP+1SFP IEEE802.3af/at POE Etherent switch for CCTV Network system 4x10/100/1000M POE 30W+1UTP+1SFP IEEE802.3af/at POE Etherent switch for CCTV Network system 4x10/100/1000M POE 30W+1UTP+1SFP IEEE802.3af/at POE Etherent switch for CCTV Network system 4x10/100/1000M POE 30W+1UTP+1SFP IEEE802.3af/at POE Etherent switch for CCTV Network system
Contact Now

4x10/100/1000M POE 30W+1UTP+1SFP IEEE802.3af/at POE Etherent switch for CCTV Network system

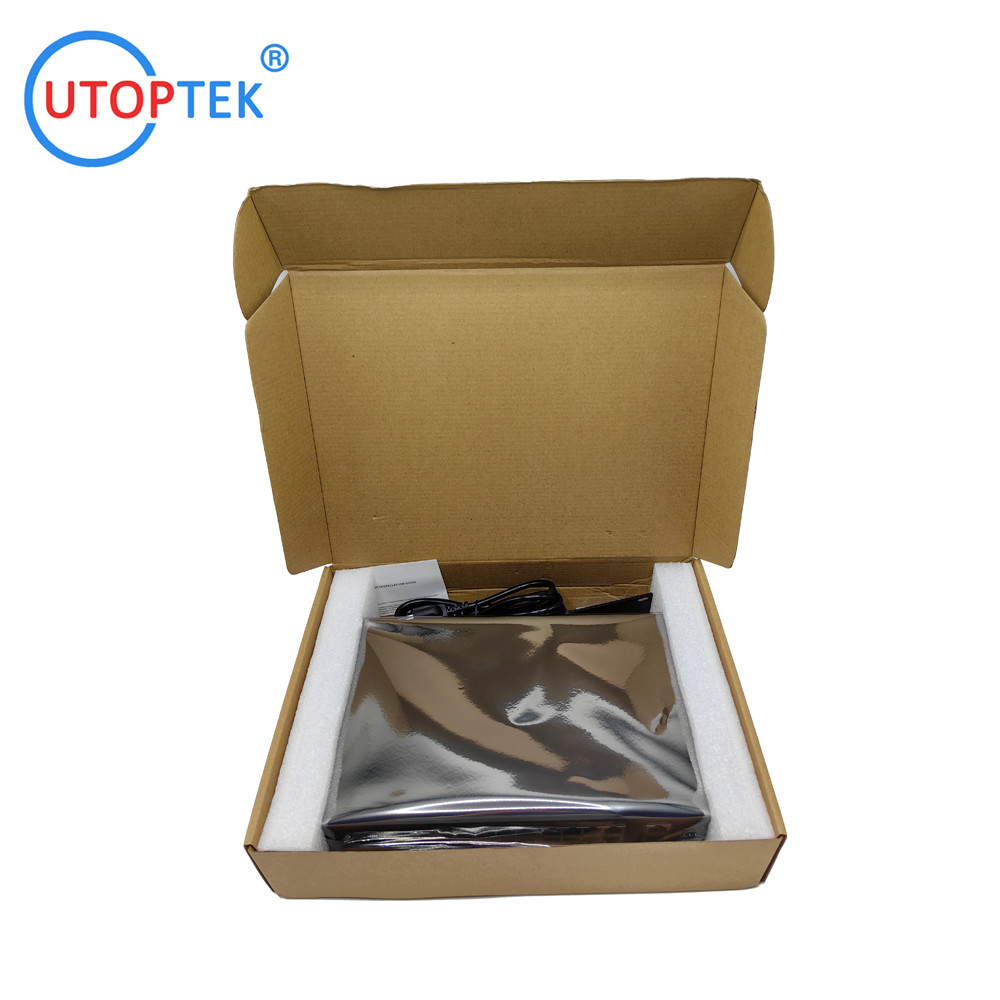

Minimum Order Quantity : 2pcs Packaging Details : box package, Size: 150*65*30mm, G.W:0.75Kg
Delivery Time : 1-2working days Payment Terms : T/T, Western Union, Paypal, Alipay, Wechat etc.
Place of Origin: China Brand Name: UTOPTEK
Certification: CE FCC ROHS Model Number: UP-PS0411G

Detail Information
Product Name: POE Switch POE Port: 4xPOE 10/100/1000Mbps
Uplink Port: 1x10/100/1000Mbps RJ45 Fiber Port: 1x1000M SFP Port
Power Supply: Built-in DC52V/1.25A/65W Distance: 100Meters
Standard: IEEE802.3af/at Power Watts: <30W Per Port
Bandwith: 10G Full Duplex Data Signal: 1 2 3 6
Power Pin: 12+ 36-; 45+ 78- Warranty: 1 Year

Product Description

4x10/100/1000M POE 30W+1UTP+1SFP IEEE802.3af/at POE Etherent switch for CCTV Network system

UT-PS0411G



Description:

This 6ports POE Switch provide network layout, reduces equipment and installation costs by delivering data and power over existing Ethernet cables. This unmanaged switch offers 4 10/100/1000M PoE ports which supply 15.4 watts of power per port for devices such as high power wireless access points (AP),VoIP telephony systems and IP-based surveillance cameras network cameras. This standalone switch features an internal power supply. Auto sensing technology delivers 15.4 watts to 802.3af/at PoE devices. It reduces energy consumption by up to 75% when the switch is not in use. Boost office efficiency and reduce network congestion with a total switching capacity of 10 Gbps. LED indicators display device status for efficient troubleshooting

.

Features

  • 4x 10/100 /1000Mbps automatic adjustment RJ45 ports
  • 1*10/100/1000Mbps Uplink RJ45 port
  • 1*1.25G SFP port
  • Built-in power supply, Whole power budget: 65W
  • Desktop design, easy to install and use
  • Supply power to Cat5,5e,cat6 and up Ethernet wireless access point (AP) and network surveillance cameras
  • POE port comply with IEEE802.3af/at standard powersupply
  • Meets the standards of the IEEE 802.3 /IEEE 802.3u/IEEE 802.3z and IEEE 802.3ab
  • Network port has lighting-proof function (AC power port: differential mode +/-2kV, common mode +/-4kV)
  • Automatic adjustment, plug and play, no need software and protocol conversion



Technicial Parameters:

Product Active 10/100/1000Mbps 4POE+2UTP +1SFP PoE Switch
Model UT-PS0411G
Feature Modular Design, Stardard Size
POE Port 1 to 4 support IEEE802.3AF/AT Standard
Output Power 15.4W/30W IEEE802.3af/at
Power Pin Both 1/2+,3/6- and 4/5+7/8-
Whole Power ≤65W (Built-in power 52V 1.2A)
POE Protocol IEEE 802.3af/IEEE 802.3at
POE Type End-span
Network Standard IEEE 802.3, IEEE802.3u,802.3x,802.3af/at
Network Medium 100/1000BASE-TX:5 class and above non shielded twisted pair
Switch Capability 12Gbps
Forwarding Mode Store and forward
Forwarding Rate

100BASE-T:148800PPS/port

1000BASE-tx:148000pps/port
MAC Address MAC address table 4K
Port Function

Power priority mechanism, fast and forward, MAC automatic learning and aging

IEEE802.3X Full-duplex and mode and backpressure for Half-duplex mode
LED Indicator LINK/ACT.1000Mbps; POE Status Indicator; Power indicator;Extender
Temperature

Operating: 0° ~ 50℃

Storage: -20° ~ 70°C
Humidity Max 90% (non-condensing)
Product Size 202mm*140mm*45mm(L*W*H)
Weight 0.95KG

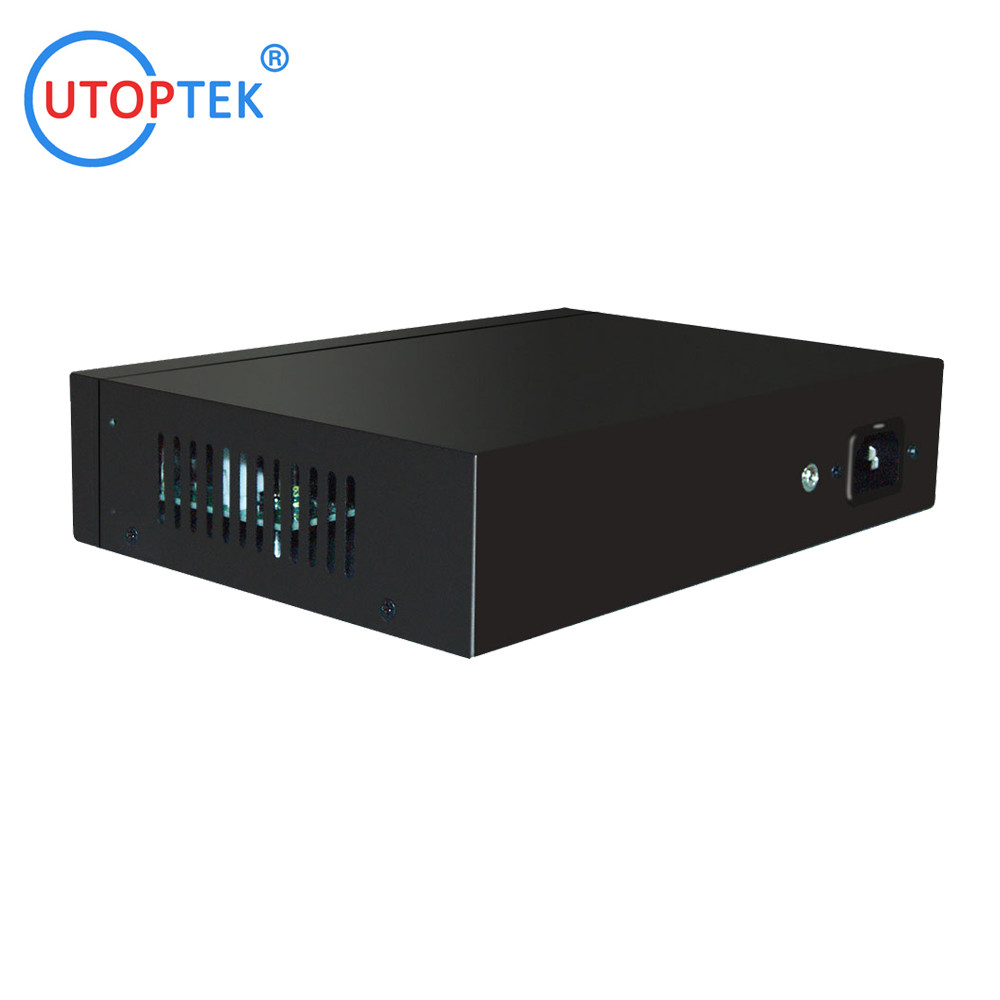

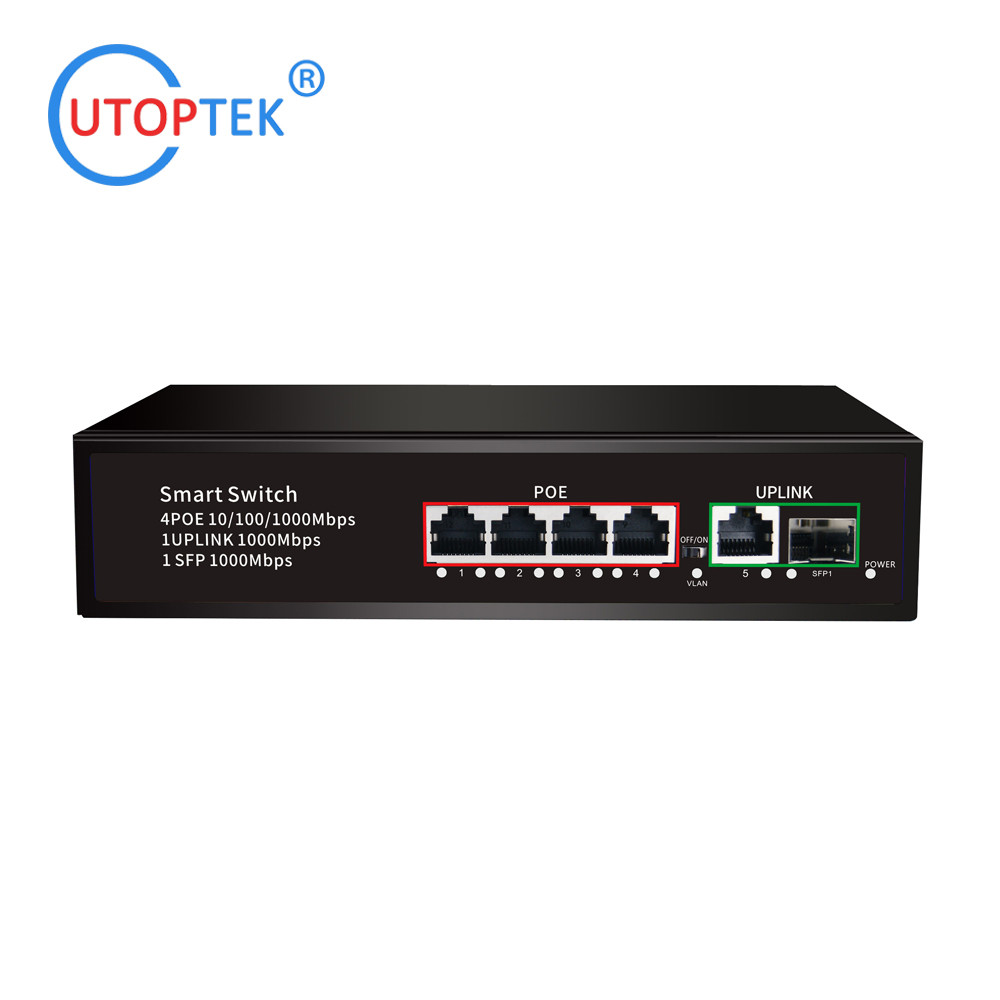

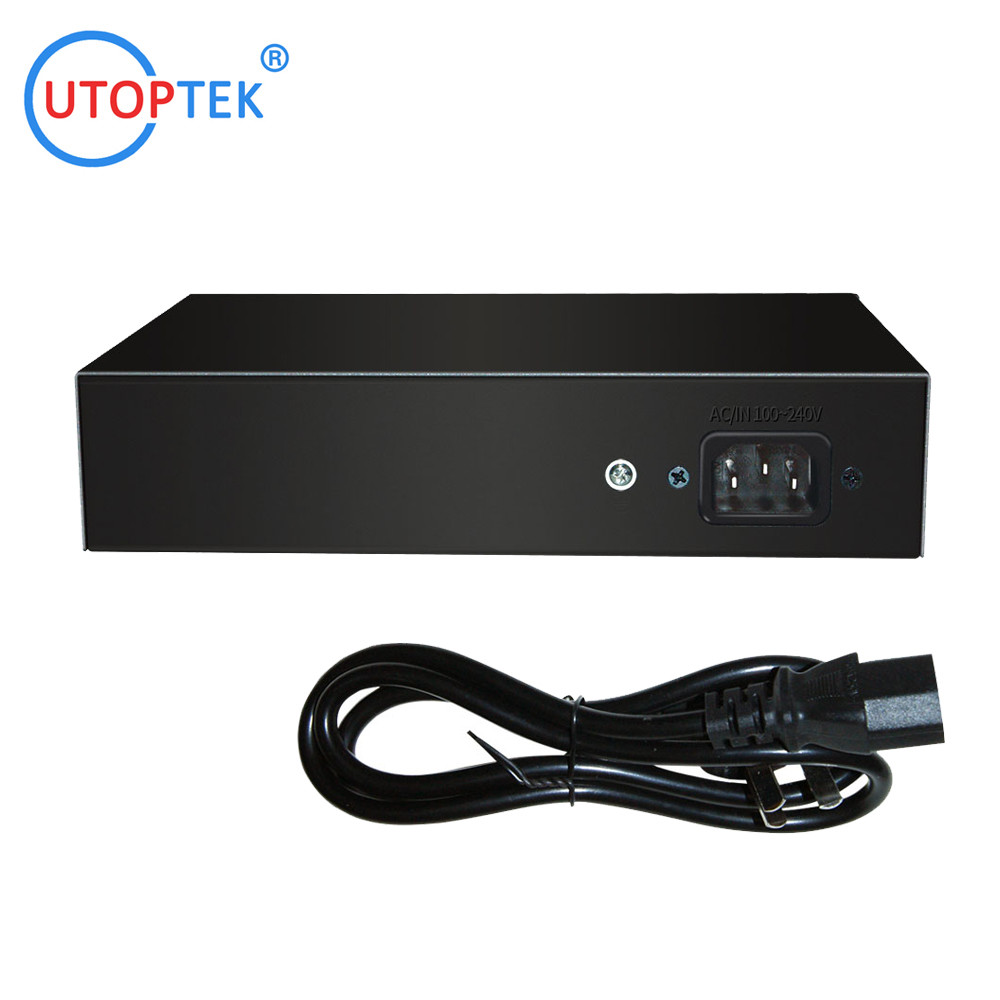

Products Show:

4x10/100/1000M POE 30W+1UTP+1SFP IEEE802.3af/at POE Etherent switch for CCTV Network system 0

4x10/100/1000M POE 30W+1UTP+1SFP IEEE802.3af/at POE Etherent switch for CCTV Network system 14x10/100/1000M POE 30W+1UTP+1SFP IEEE802.3af/at POE Etherent switch for CCTV Network system 24x10/100/1000M POE 30W+1UTP+1SFP IEEE802.3af/at POE Etherent switch for CCTV Network system 34x10/100/1000M POE 30W+1UTP+1SFP IEEE802.3af/at POE Etherent switch for CCTV Network system 4



Ordering information:

10/100Mbps POE Switch
Part number Product description
FE: 10/100Mbps ; GE:10/100/1000Mbps ; SFP GE: 1000Mbps
UT-PS0401F 4*FE POE+1*FE Uplink port, IEEE802.3af/at, 250Mts
UT-PS0402F 4*FE POE+2*FE Uplink port, IEEE802.3af/at, 250M
UT-PS0802F 8*FE POE+2*FE Uplink port, IEEE802.3af/at, 250M
UT-PS08F02G 8*FE POE+2*GE Uplink port, IEEE802.3af/at, 250M
UT-PS08F12G 8*FE POE+2*GE Uplink +1GE SFP port, IEEE802.3af/at, 250M
UT-PS16F12G 16*FE POE+2*GE Uplink +1GE SFP port, IEEE802.3af/at, 250M
UT-PS24F02G 24*FE POE+2*GE Uplink , IEEE802.3af/at, 250M
UT-PS24F22G 24*FE POE+2*GE Uplink +2GE SFP port, IEEE802.3af/at, 250M





Full Gigabit commercial POE Switch
Model Number Description
UT-PS0401G 4*GE POE+1*GE Uplink UTP port, IEEE802.3af/at, 100M
UT-PS0402G 4*GE POE+2*GE Uplink UTP port, IEEE802.3af/at, 100M
UT-PS0411G 4*GE POE+1*GE Uplink +1GE SFP port, IEEE802.3af/at, 100M
UT-PS0802G 8*GE POE+2*GE Uplink UTP port, IEEE802.3af/at, 100M
UT-PS0820G 8*GE POE+2*GE Uplink SFP port, IEEE802.3af/at, 100M
UT-PS0812G 8*GE POE+1*GE Uplink +2GE SFP port, IEEE802.3af/at, 100M
UT-PS0822G 8*GE POE+2*GE Uplink +2GE SFP port, IEEE802.3af/at, 100M
UT-PS1602G 13'' 16*GE POE+2*GE Uplink port, IEEE802.3af/at, 100M
UT-PS1620G 13'' 16*GE POE+2GE SFP port, IEEE802.3af/at, 100M
UT-PS1644G 19'' RACK Mounted 16*GE POE+4*GE Uplink +4GE SFP port, IEEE802.3af/at, 100M
UT-PS2402G 13'' 24*GE POE+2*GE Uplink port, IEEE802.3af/at, 100M
UT-PS2420G 13'' 24*GE POE+2GE SFP port, IEEE802.3af/at, 100M
UT-PS2444G 19'' RACK Mounted 24*GE POE+4*GE Uplink +4GE SFP port, IEEE802.3af/at, 100M
