Layer2 Management 10/100/1000M 24port POE+4Combo UTP+4SFP IEEE802.3af/at Total 400W POE Network switch(UT-PS2444GM-SFP)
Layer2 Management 10/100/1000M 24port POE+4Combo UTP+4SFP IEEE802.3af/at Total 400W POE Network switch(UT-PS2444GM-SFP) Layer2 Management 10/100/1000M 24port POE+4Combo UTP+4SFP IEEE802.3af/at Total 400W POE Network switch(UT-PS2444GM-SFP) Layer2 Management 10/100/1000M 24port POE+4Combo UTP+4SFP IEEE802.3af/at Total 400W POE Network switch(UT-PS2444GM-SFP) Layer2 Management 10/100/1000M 24port POE+4Combo UTP+4SFP IEEE802.3af/at Total 400W POE Network switch(UT-PS2444GM-SFP) Layer2 Management 10/100/1000M 24port POE+4Combo UTP+4SFP IEEE802.3af/at Total 400W POE Network switch(UT-PS2444GM-SFP)
Contact Now

Layer2 Management 10/100/1000M 24port POE+4Combo UTP+4SFP IEEE802.3af/at Total 400W POE Network switch(UT-PS2444GM-SFP)

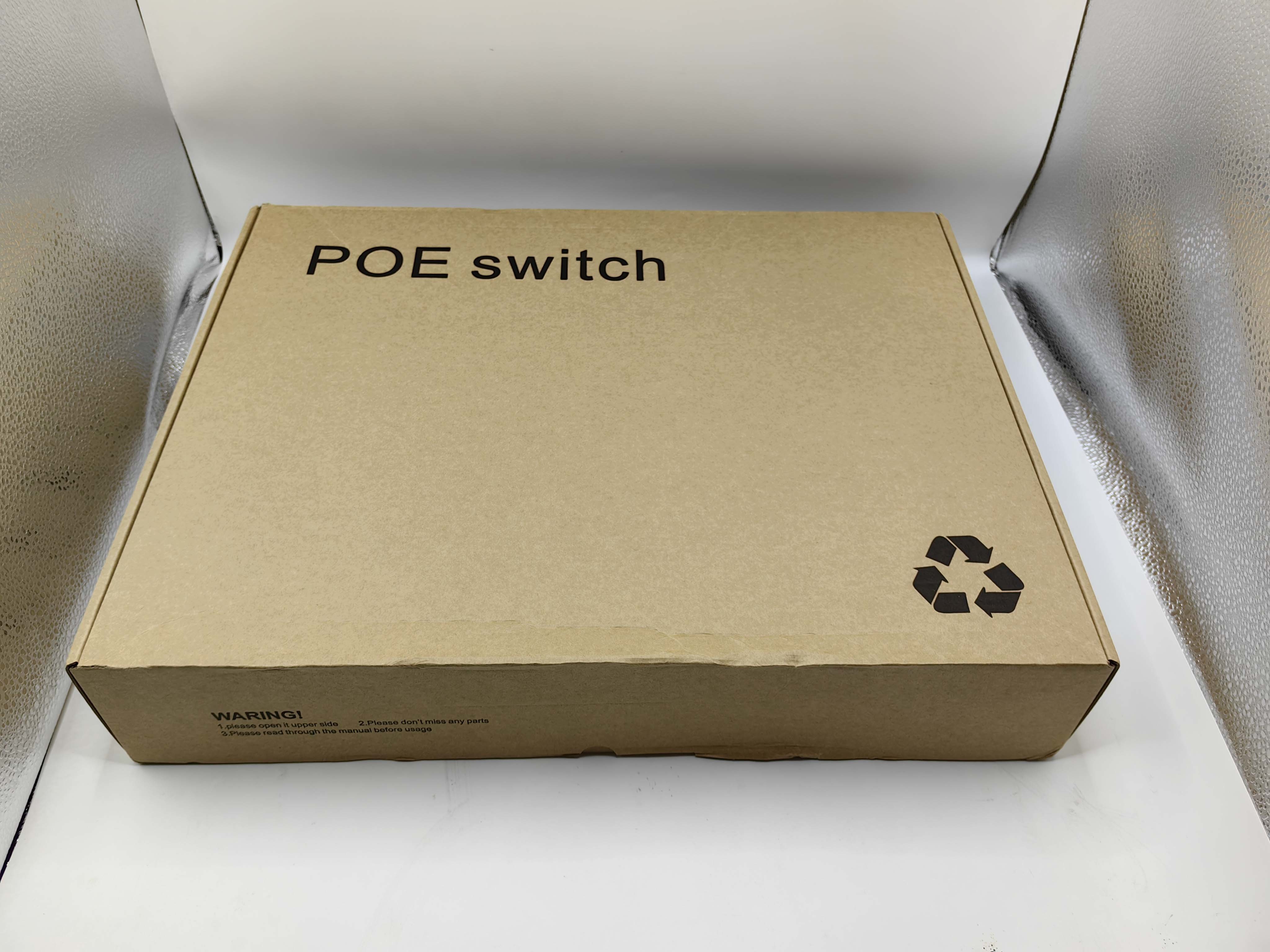

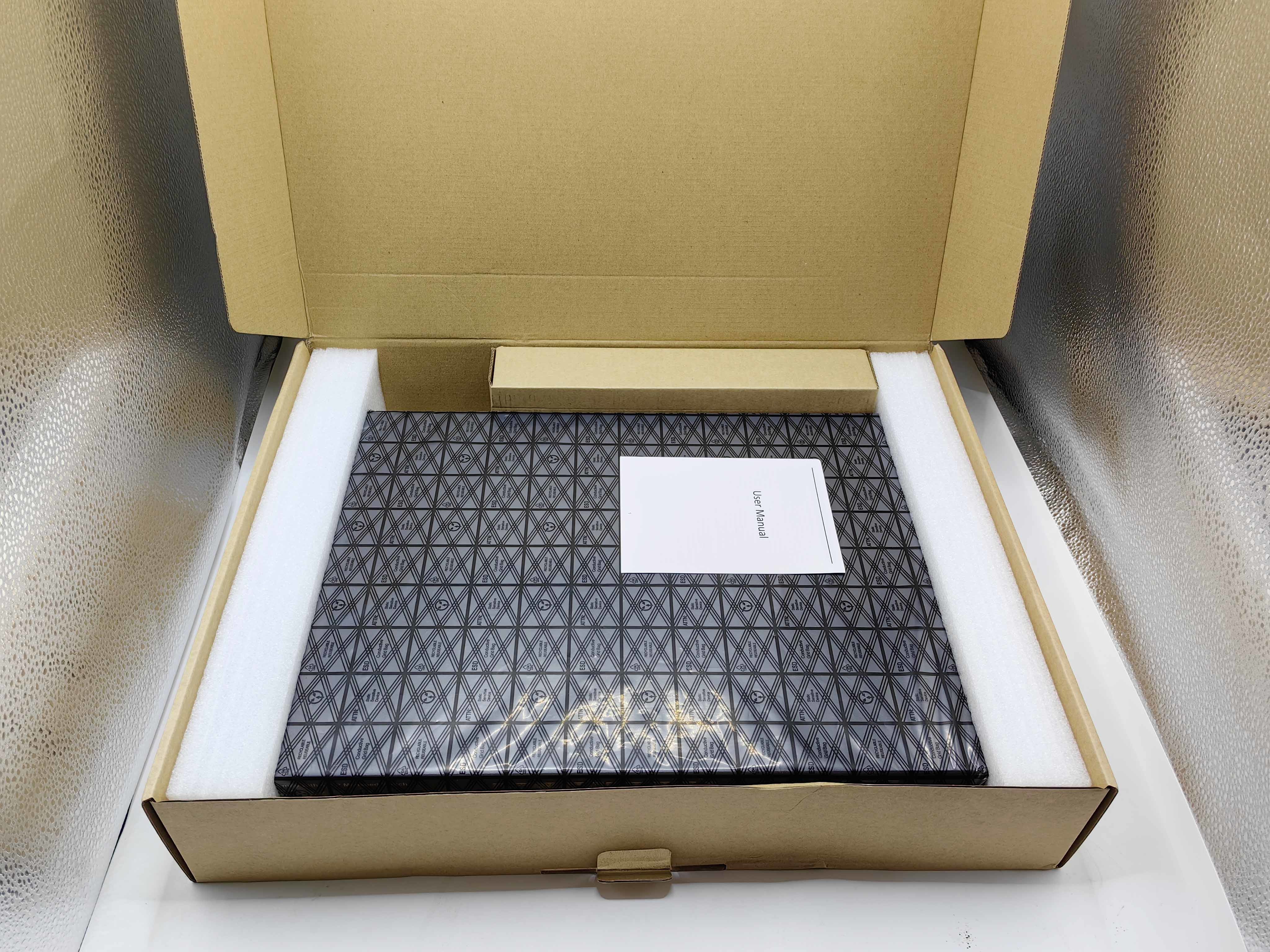

Minimum Order Quantity : 1pcs Packaging Details : box package, Size: 520*320*55mm, G.W:4.5Kg
Delivery Time : 1-2working days Payment Terms : T/T, Western Union, Paypal, Alipay, Wechat etc.
Place of Origin: China Brand Name: UTOPTEK
Certification: CE FCC ROHS Model Number: UT-PS2444GM-SFP

Detail Information
Product Name: Management 24port POE Switch POE Port: 24xPOE 10/100/1000Mbps
Uplink Port: 4x10/100/1000Mbps RJ45, 4x1000M SFP Console Port: 1xRJ45 Console Port
Power Input: AC 100~240VAC, 50/60Hz Distance: 100Meters
Standard: IEEE802.3af/at Power Watts: <30W Per Port, Total 400W
Switching Capacity: 56G MAC Capacity: 8K
Data Signal: 1 2 3 6 Power Pin: 12+ 36-; 45+ 78-
Product Size: 440(W) X 44(H) X 260(D)mm Weight: 4.5Kg
Warranty: 2 Years

Product Description

UT-PS2444GM-SFP

Layer2 Management 19'' RACK 10/100/1000M 24xPOE +4UTP+4SFP IEEE802.3af/at 400W POE Network switch





Description:

UT-PS2444GM-SFP standard layer 2 management switch, with 24 gigabit POE power supply ports, 4 gigabit Combo UTP/SFP ports (photoelectric multiplexing), ultra-high backplane bandwidth, with high-speed data processing capability, improve data smooth transmission performance, using high-speed forwarding chip plus standard power supply protocol chip, built-in high-power power supply, Seiko metal body anti-static paint, excellent port performance.

Simple to use, easy to operate, plug and play, lossless transmission security monitoring zero congestion, to meet the demand for high-density POE power supply network environment, suitable for financial, government institutions, hotels, shopping malls, campuses, hospitals and small and medium-sized enterprises to establish an economical and efficient network. Support Class 5 or Class 5 Ethernet wireless AP access and network monitoring cameras and other transmission data signals, while providing DC power supply for this internal device.

Features

  • 24x 10/100/1000Mbps automatic adjustment RJ45 ports with POE Functions
  • 4*10/100/1000Mbps Uplink RJ45
  • 4*1000Mbps Uplink SFP Fiber port
  • Built-in power supply, Whole power budget: 400W
  • Desktop design, easy to install and use
  • Supply power to Cat5,5e,cat6 and up Ethernet wireless access point (AP) and network surveillance cameras
  • POE port comply with IEEE802.3af/at standard powersupply
  • Meets the standards of the IEEE 802.3 /IEEE 802.3u/IEEE 802.3z and IEEE 802.3ab
  • Network port has lighting-proof function (AC power port: differential mode +/-2kV, common mode +/-4kV)
  • Automatic adjustment, plug and play, no need software and protocol conversion



Technicial Parameters:

Physical Specification Description
Performance • Switching Capacity: 56Gbps • Throughput: 41.66Mpps • MAC Capacity: 8K
Hardware • Flash Memory: 128MB • DRAM: 1GB
Interface

• 24-Port 10/100/1000M Base-T

• 1-Port Console(With RJ-45)

• 4-Port 1G Base-R(SFP) combo with 4 RJ45


Power • Input:AC 100~240VAC, 50/60Hz • Power Consumption: 30W
PoE

• Max PoE Power Budget: 400W

• 15.4W simultaneously on 24 ports

• Support 24-Ports 10/100/1000 802.3af/at Base-T,

30W simultaneously on 12 ports
Environmental

• Operating Temperature: 0~60℃

• Storage Temperature: -20~70℃

• Operating Humidity: 20~85%RH (Non-Condensing)

• Storage Humidity: 5~95%RH (Non-Condensing)
Mechanical • Dimension: 440(W) x 44(H) x 160(D)mm • Weight:4kg
Air Flow • Fanless natural cooling



  • Software Specifications



Features Description
Status

• System Information

• Logging Message

• Port

• Link Aggregation

• MAC Address Table




Network

• DNS

• Hosts

• System Time


Port

• Port Setting

• Error Disabled

• Link Aggregation

• EEE

• Jumbo Frame

• Port Security

• Protected Port

• Storm Control



POE Setting

• POE Port Setting

• POE Port Timer Setting


VLAN

• VLAN

• Voice VLAN

• Protocol VLAN

• MAC VLAN

• Surveillance VLAN

• GVRP

MAC Address

Table

• Dynamic Address

• Static Address

• Filtering Address

• Port Security Address



Spanning

Tree

• Property

• Port Setting

• MST Instance

• MST Port Setting

• Statistics


ERPS

• Property

• ERSP Instance


Lookback • Lookback Config

Discovery

LLDP

• Property

• Port Setting

• MED Network Policy

• Packet View

• Local Informantion

• Neighbor

• Statistics


DHCP

• Property

• IP Pool Setting

• VLAN IF AddressGroup Setting

• Client List

• Client Static Binding Table


Multicast

• General

• IGMP Snooping

• MLD Snooping

• MVR


Routing

• IPV4 Management and Interfaces

• IPV6 Management and Interfaces


Security

• RADIUS

• TACACS+

• AAA

• Management Access

• Authentication Manager

• Port Security

• Protected Port

• Storm Control

• Dos

• Dynamaic ARP Inspection

• DHCP Snooping

• IP Source Guard
ACL

• MAC ACL

• MAC ACE

• IPV4 ACL

• IPV4 ACE

• IPV6 ACL

• IPV6 ACE

• ACL Binding


Qos

• General

• Rate Limit


Diagnostics

• Logging

• Mirroring

• Ping

• Traceroute

• Copper Test

• Fiber Module

• UDLD


Management

• User Account

• Firmware

• Configuration

• SNMP

• RMON

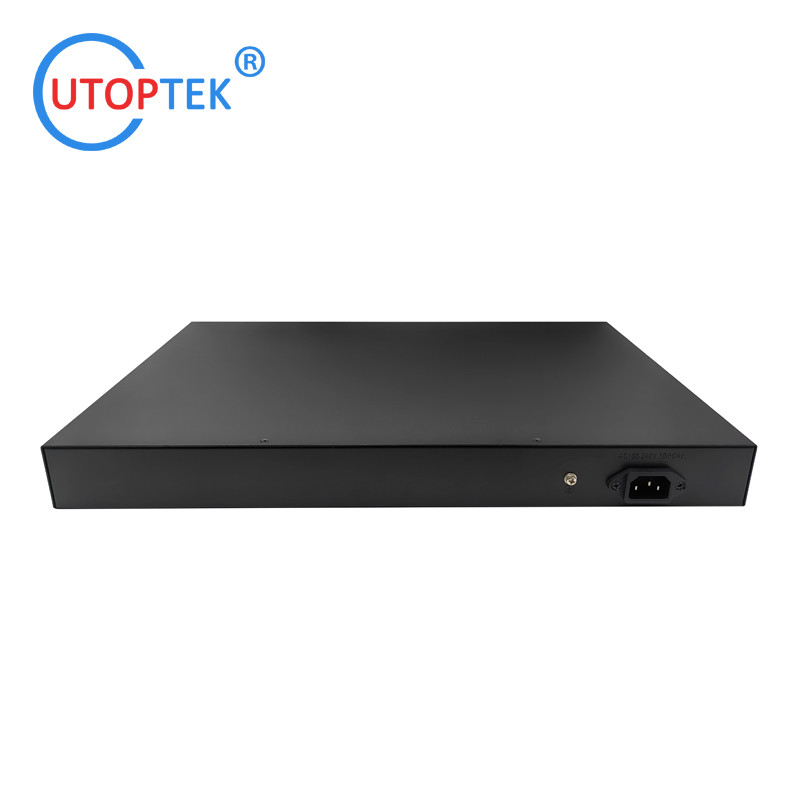

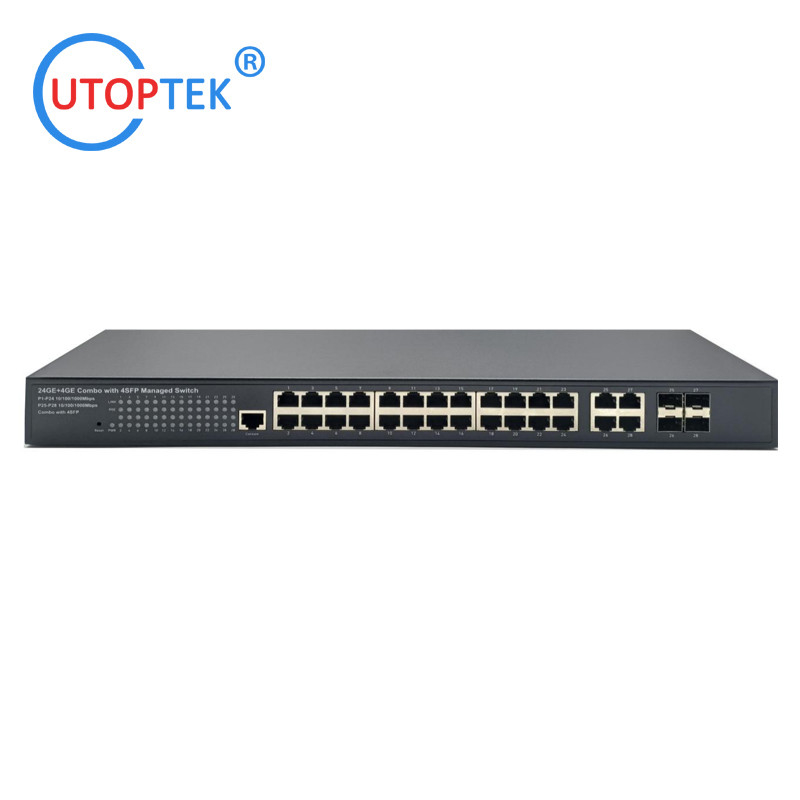

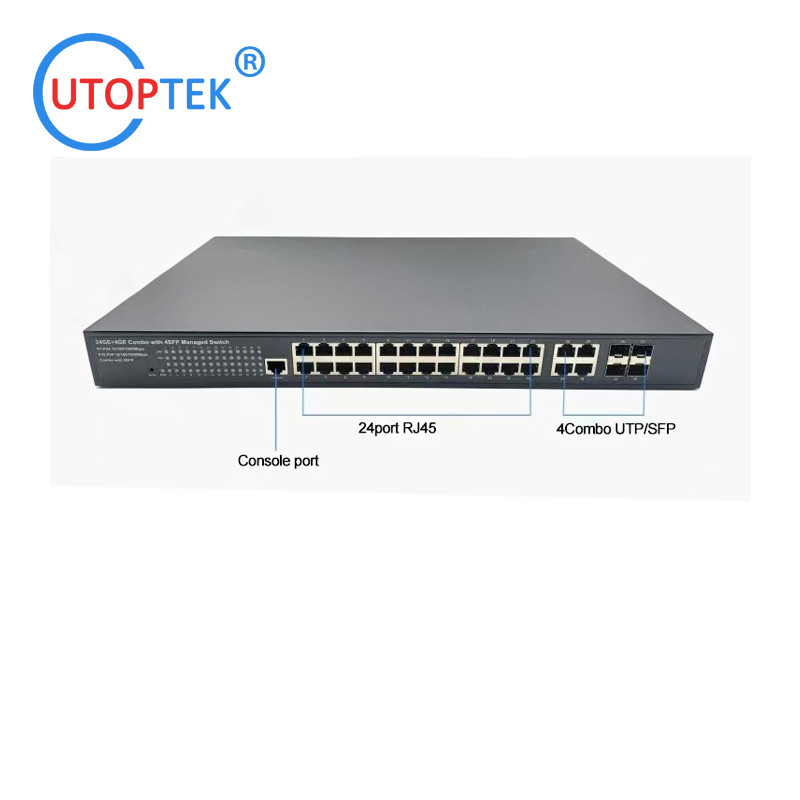

Products Show:

Layer2 Management 10/100/1000M 24port POE+4Combo UTP+4SFP IEEE802.3af/at Total 400W POE Network switch(UT-PS2444GM-SFP) 0Layer2 Management 10/100/1000M 24port POE+4Combo UTP+4SFP IEEE802.3af/at Total 400W POE Network switch(UT-PS2444GM-SFP) 1

Layer2 Management 10/100/1000M 24port POE+4Combo UTP+4SFP IEEE802.3af/at Total 400W POE Network switch(UT-PS2444GM-SFP) 2Layer2 Management 10/100/1000M 24port POE+4Combo UTP+4SFP IEEE802.3af/at Total 400W POE Network switch(UT-PS2444GM-SFP) 3

Layer2 Management 10/100/1000M 24port POE+4Combo UTP+4SFP IEEE802.3af/at Total 400W POE Network switch(UT-PS2444GM-SFP) 4





Ordering information:

With POE Function:
UT-PS0802GM-SFP L2 Managed Gigabit 8POE+2SFP, 120W power
UT-PS1644GM-SFP L2 Managed Gigabit 16POE+4UTP/SFP, Total 300W power, AC power plug
UT-PS2444GM-SFP L2 Managed Gigabit 24POE+4UTP/SFP, Total 400W power, AC power plug
UT-PS48GP-6SFP+ L3 Managed Gigabit 48POE+6SFP/SFP+,Total 800W power, AC power plug
Without POE Funtion:
UT-SW0802GM-SFP L2 Managed Gigabit 8RJ45+2SFP, No POE, AC power plug
UT-SW1644GM-SFP L2 Managed Gigabit 16RJ45+4UTP/SFP,, No POE, AC power plug
UT-SW2444GM-SFP L2 Managed Gigabit 24RJ45+4UTP/SFP, No POE, AC power plug
UT-SW48G-6SFP+ L3 Managed Gigabit 48RJ45+6SFP/SFP+,No POE, AC power plug
